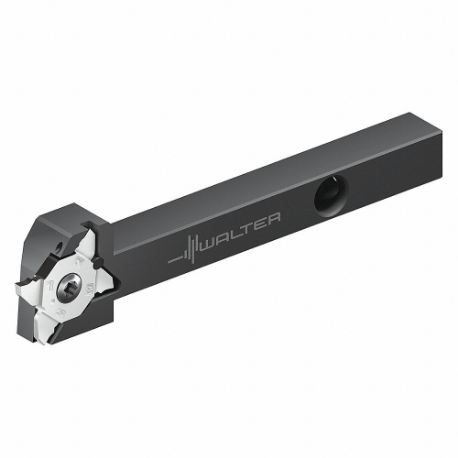

WALTER TOOLS G3011-1616R-MX22-2-P 7108217 Indexable Parting and Grooving Tool Holder, Novex-Cut, Radial Grooving
Item: CU8GRXModel: G3011-1616R-MX22-2-PCross Ref: 56NN97 / 7108217
7 In Stock
Ships within 2 days via
5.00% off
€406.14 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Grooving Tool Holder |
| Ansi Code | G3011-1616R-MX22-2-P |
| Ansi Number | G3011-1616R-MX22-2-P |
| Coolant Entry Thread Size | G1/8 |
| Coolant Fed | Coolant Through |
| Coolant Pressure | 2175.566 psi |
| Cutting Application | Radial Grooving |
| Cutting Direction | Right Hand |
| Functional Width | 0.564" |
| Hand | R |
| Indexable Insert Width | 0.02" to 0.128" |
| Insert Holding Type | Screw Clamping |
| Iso Number | G3011-1616R-MX22-2-P |
| Length | 4.724" |
| Max. Cutting Depth | 0.236" |
| Max. Overhang | 1.024" |
| Overall Length | 4.7244" |
| Product Family | NOVEX-CUT |
| Shank Height | 0.63" |
| Shank Width | 0.63" |
| Toolholder Style | G3011 |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 12 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Shank Dia. | Cutting Direction | Toolholder Style | Iso Number | Ansi Number | Insert Holding Type | Ansi Code | Insert Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
G4014-1212L-2T12DX18-P | - | Left Hand | G4014 | G4014-1212L-2T12DX18-P | G4014-1212L-2T12DX18-P | Side Clamping Screw | G4014-1212L-2T12Dx18-P | DX | €431.28 | |
 |
G4014-1616L-2.5T17DX18-P | - | Left Hand | G4014 | - | G4014-1616L-2.5T17DX18-P | Side Clamping Screw | - | DX | €452.42 | |
 |
G4014-1212L-2T12DX18 | - | Left Hand | G4014 | G4014-1212L-2T12DX18 | G4014-1212L-2T12DX18 | Side Clamping Screw | G4014-1212L-2T12DX18 | DX | €284.19 | |
|
G4014-1616L-3T17DX18-P | - | Left Hand | G4014 | G4014-1616L-3T17DX18-P | G4014-1616L-3T17DX18-P | Side Clamping Screw | G4014-1616L-3T17DX18-P | DX | €452.42 | |
|
G4014-1616L-2T12DX18 | - | Left Hand | G4014 | G4014-1616L-2T12DX18 | G4014-1616L-2T12DX18 | Side Clamping Screw | G4014-1616L-2T12DX18 | DX | €298.43 | |
 |
G4014-1616R-3T17DX18-P | - | Right Hand | G4014 | G4014-1616R-3T17DX18-P | G4014-1616R-3T17DX18-P | Side Clamping Screw | G4014-1616R-3T17DX18-P | DX | €452.42 | |
 |
G4014-1616R-3T17DX18 | - | Right Hand | G4014 | G4014-1616R-3T17DX18 | G4014-1616R-3T17DX18 | Side Clamping Screw | G4014-1616R-3T17DX18 | DX | €298.43 |
