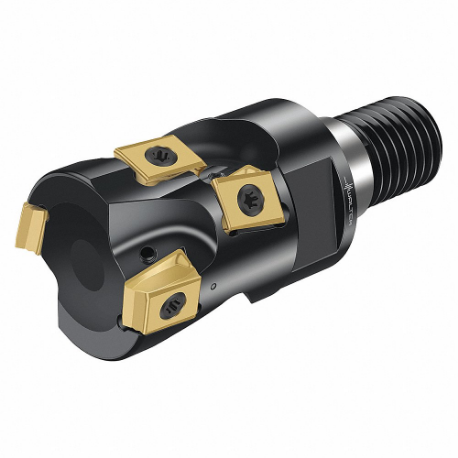

WALTER TOOLS F5138.T36.040.Z02.34 6340752 Indexable Square End Mill, 1 23/40 Inch Max. Cutting Dia, Screw On, Coolant Through
Item: CU8ENPModel: F5138.T36.040.Z02.34Cross Ref: 56MN42 / 6340752
7 In Stock
Ships within 2 days via
5.00% off
€1,303.73 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Square End Mill |
| Ansi Code | F5138.T36.040.Z02.34 |
| Connection Dia. | 1.417" |
| Connection Size | T36 |
| Coolant Fed | Coolant Through |
| Cutting Depth | 1.339" |
| Cutting Edge Dia. | 1.575" |
| Cutting Edge Length | 1.339" |
| Features | 4 Cutting Edges Per Indexable Insert, Full Effective Design, Tangential Arrangement |
| Iso Number | F5138.T36.040.Z02.34 |
| Max. Cutting Dia. | 1.575" |
| Max. Projection Length | 2.165" |
| Max. Speed | 22500 RPM |
| No. Of Indexable Inserts Face | 2 |
| No. Of Indexable Inserts Peripheral | 4 |
| No. Of Teeth | 2 |
| Overall Length | 3.543" |
| Shank Dia. | 1.417" |
| Shank Type | Screw On |
| Shank Type-machining | Screw On |
| Toolholder Style | F5138 |
Shipping Info:
| Ship weight (kg) | 0.43 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 9 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Cutting Depth | Shank Dia. | Max. Cutting Dia. | Toolholder Style | Ansi Code | Iso Number | Cutting Edge Dia. | Cutting Edge Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M2131.038-T36-03-15 | 0.591" | 1.417" | 1 1/2" | M2131 | M2131.038-T36-03-15 | M2131.038-T36-03-15 | 1 1/2" | 0.591" | €1,072.26 | |
 |
M5130.038-T36-10-05 | - | 1.417" | 1 1/2" | M5130 | M5130.038-T36-10-05 | M5130.038-T36-10-05 | 1 1/2" | 0.197" | €1,013.77 | |
|
M5130.038-T36-07-05 | - | 1.417" | 1 1/2" | M5130 | M5130.038-T36-07-05 | M5130.038-T36-07-05 | 1 1/2" | 0.197" | €938.25 | |
 |
M5130.038-T36-04-15 | - | 1.417" | 1 1/2" | M5130 | M5130.038-T36-04-15 | M5130.038-T36-04-15 | 1 1/2" | 0.591" | €821.74 | |
|
M5130.038-T36-03-15 | - | 1.417" | 1 1/2" | M5130 | - | M5130.038-T36-03-15 | 1 1/2" | 0.591" | €782.39 | |
 |
M2131.038-A31-03-15-L | 0.591" | 1 1/4" | 1 1/2" | M2131 | M2131.038-A31-03-15-L | M2131.038-A31-03-15-L | 1 1/2" | 0.591" | €1,229.38 | |
 |
M4791.038-W31-01-12 | 3.022" | 1 1/4" | 1 1/2" | M4791 | M4791.038-W31-01-12 | M4791.038-W31-01-12 | 1 1/2" | 0.457" | €677.57 |
