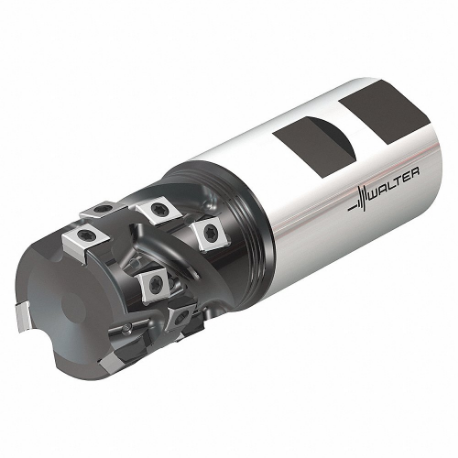

WALTER TOOLS F5038.W40.040.Z03.40 Indexable Square End Mill, 1 23/40 Inch Max. Cutting Dia, Weldon Flat
Item: CU8EPAModel: F5038.W40.040.Z03.40Cross Ref: 56MN08
7 In Stock
Ships within 2 days via
5.00% off
€2,191.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Square End Mill |
| Ansi Code | F5038.W40.040.Z03.40 |
| Connection Dia. | 1.575" |
| Coolant Fed | Coolant Through |
| Cutting Application | Shoulder Milling |
| Cutting Depth | 1 23/40" |
| Cutting Edge Dia. | 1.575" |
| Cutting Edge Length | 1.575" |
| Depth Of Cut | 1.575" |
| Features | 4 Cutting Edges Per Indexable Insert, Full Effective Design, Tangential Arrangement |
| Iso Number | F5038.W40.040.Z03.40 |
| Length | 4.921" |
| Max. Cutting Dia. | 1.575" |
| Max. Projection Length | 2.126" |
| Max. Speed | 31300 RPM |
| No. Of Indexable Inserts Face | 3 |
| No. Of Indexable Inserts Peripheral | 12 |
| No. Of Teeth | 3 |
| Overall Length | 4.921" |
| Shank Dia. | 1.575" |
| Shank Type | Weldon |
| Shank Type-machining | Weldon Flat |
| Side Cutting Edge Angle | 90° |
| Toolholder Style | F5038 |
Shipping Info:
| Ship weight (kg) | 0.99 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 12.5 |
| Ship width (cm) | 2.54 |
| Country of Origin | PL |
Product Variants
| Product | Model | Cutting Depth | Shank Dia. | Max. Cutting Dia. | Toolholder Style | Ansi Code | Iso Number | Cutting Edge Dia. | Cutting Edge Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M2131.038-T36-03-15 | 0.591" | 1.417" | 1 1/2" | M2131 | M2131.038-T36-03-15 | M2131.038-T36-03-15 | 1 1/2" | 0.591" | €1,072.26 | |
 |
M5130.038-T36-10-05 | - | 1.417" | 1 1/2" | M5130 | M5130.038-T36-10-05 | M5130.038-T36-10-05 | 1 1/2" | 0.197" | €1,013.77 | |
|
M5130.038-T36-07-05 | - | 1.417" | 1 1/2" | M5130 | M5130.038-T36-07-05 | M5130.038-T36-07-05 | 1 1/2" | 0.197" | €938.25 | |
 |
M5130.038-T36-04-15 | - | 1.417" | 1 1/2" | M5130 | M5130.038-T36-04-15 | M5130.038-T36-04-15 | 1 1/2" | 0.591" | €821.74 | |
|
M5130.038-T36-03-15 | - | 1.417" | 1 1/2" | M5130 | - | M5130.038-T36-03-15 | 1 1/2" | 0.591" | €782.39 | |
 |
M2131.038-A31-03-15-L | 0.591" | 1 1/4" | 1 1/2" | M2131 | M2131.038-A31-03-15-L | M2131.038-A31-03-15-L | 1 1/2" | 0.591" | €1,229.38 | |
 |
M4791.038-W31-01-12 | 3.022" | 1 1/4" | 1 1/2" | M4791 | M4791.038-W31-01-12 | M4791.038-W31-01-12 | 1 1/2" | 0.457" | €677.57 |
