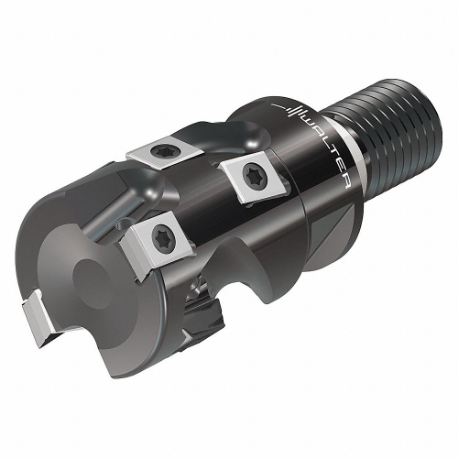

WALTER TOOLS F5038.T28.032.Z02.32 6515171 Indexable Square End Mill, 1 13/50 Inch Max. Cutting Dia, Screw On, Coolant Through
Item: CU8EMGModel: F5038.T28.032.Z02.32Cross Ref: 56MN05 / 6515171
7 In Stock
Ships within 2 days via
10.00% off
€1,613.18 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Square End Mill |
| Ansi Code | F5038.T28.032.Z02.32 |
| Connection Size | T28 |
| Coolant Fed | Coolant Through |
| Cutting Depth | 1 13/50" |
| Depth Of Cut | 1.26" |
| Features | 4 Cutting Edges Per Indexable Insert, Full Effective Design, Tangential Arrangement |
| Iso Number | F5038.T28.032.Z02.32 |
| Max. Cutting Dia. | 1.26" |
| Max. Speed | 35000 RPM |
| Overall Length | 3.11" |
| Shank Dia. | 1.102" |
| Shank Type | Screw On |
| Shank Type - Machining | Screw On |
| Toolholder Style | F5038 |
Shipping Info:
| Ship weight (kg) | 0.24 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 7.9 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Max. Cutting Dia. | Overall Length | Side Cutting Edge Angle | Depth Of Cut | Toolholder Style | Cutting Depth | Max. Speed | Connection Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M2131.038-T36-03-15 | 1 1/2" | 3.378" | - | - | M2131 | 0.591" | 33500 RPM | T36 | €1,072.26 | |
 |
M5130.038-T36-10-05 | 1 1/2" | 2 3/4" | - | - | M5130 | - | - | T36 | €1,013.77 | |
|
M5130.038-T36-07-05 | 1 1/2" | 2 3/4" | - | - | M5130 | - | - | T36 | €938.25 | |
 |
M5130.038-T36-04-15 | 1 1/2" | 2.878" | - | - | M5130 | - | - | T36 | €821.74 | |
|
M5130.038-T36-03-15 | 1 1/2" | 2.878" | - | - | M5130 | - | - | T36 | €782.39 | |
 |
M2131.038-A31-03-15-L | 1 1/2" | 7.008" | - | - | M2131 | 0.591" | 15800 RPM | - | €1,229.38 | |
 |
M4791.038-W31-01-12 | 1 1/2" | 5 1/2" | - | - | M4791 | 3.022" | - | - | €677.57 |
