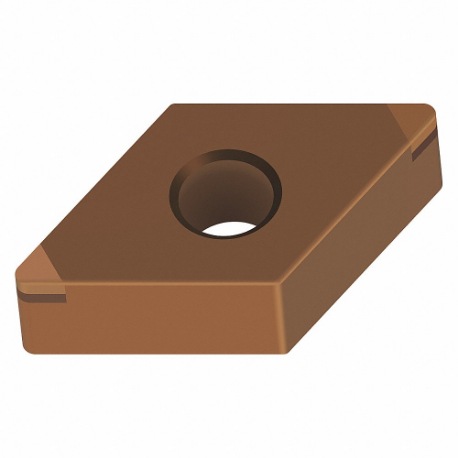

WALTER TOOLS DNGA150604TM-2 WBH10C 7636824 Diamond Turning Insert, Neutral, 1/4 Inch Thick, 1/64 Inch Corner Radius
Item: CU9MLPModel: DNGA150604TM-2 WBH10CCross Ref: 60AC51 / 7636824
7 In Stock
Ships within 2 days via
5.00% off
€159.77 /unit
This product can only be shipped in multiples of 2Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Turning Insert |
| Ansi Code | DNGA441TM-2 |
| Chip Breaker | Yes |
| Chip-breaker Code | TM-2 |
| Clearance Angle | 0° |
| Corner Radius | 1/64" |
| Cutting Direction | Neutral |
| Cutting Edge Length | 15.5 mm |
| Depth Of Cut | 0.004" to 0.02" |
| Dia. Of Inscribed Circle | 1/2" |
| Feed Rate | 0.002" to 0.008" |
| Included Angle | 55° |
| Inscribed Circle | 1/2" |
| Insert Code | DNGA441 |
| Insert Style | DNGA |
| Insert Thickness | 1/4" |
| Iso Number | DNGA150604TM-2 |
| Limited Cutting Edge Length | 0.112" |
| Major Clearance Angle | 0° |
| Manufacturer Grade | Wbh10C |
| Material | CBN |
| Material-machining | CBN |
| Measurement System | Fractional Inch |
| No. Of Cutting Edges | 2 |
| Radius | 0.016" |
| Rake | Negative |
| Shape | Diamond |
| System Of Measurement | Imperial |
| Thickness | 1/4" |
| Through Hole Inside Dia. | 13/64" |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Model | Cutting Edge Length | Thickness | Material | Manufacturer Grade | Material-machining | Finish-machining | Primary Material Application Iso Code | Cutting Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CCGT060202-X5 WTP35 | 0.254" | - | - | Wtp35 | - | Ticn+Tin | P | - | €40.13 | |
| CCGT060202-X5 WAK15 | 0.254" | - | Carbide | Wak15 | Carbide | Ticn+Al2O3+(Tin) | K | - | €39.70 | |
| CCGT060202-X15 WTP35 | 0.254" | - | - | Wtp35 | - | Ticn+Tin | P | - | €40.13 | |
| CCGT060202-X15 WXM15 | 0.254" | - | - | Wxm15 | - | Tialn+Tin | - | - | €39.70 | |
| CCGT060204-X5 WTP35 | 0.254" | - | - | Wtp35 | - | Ticn+Tin | P | - | €40.28 | |
| CCGT060204-X15 WXM15 | 0.254" | - | - | Wxm15 | - | Tialn+Tin | - | - | €39.23 | |
| CCGT060204-X5 WXM15 | 0.254" | - | - | Wxm15 | - | Tialn+Tin | - | - | €39.70 |
