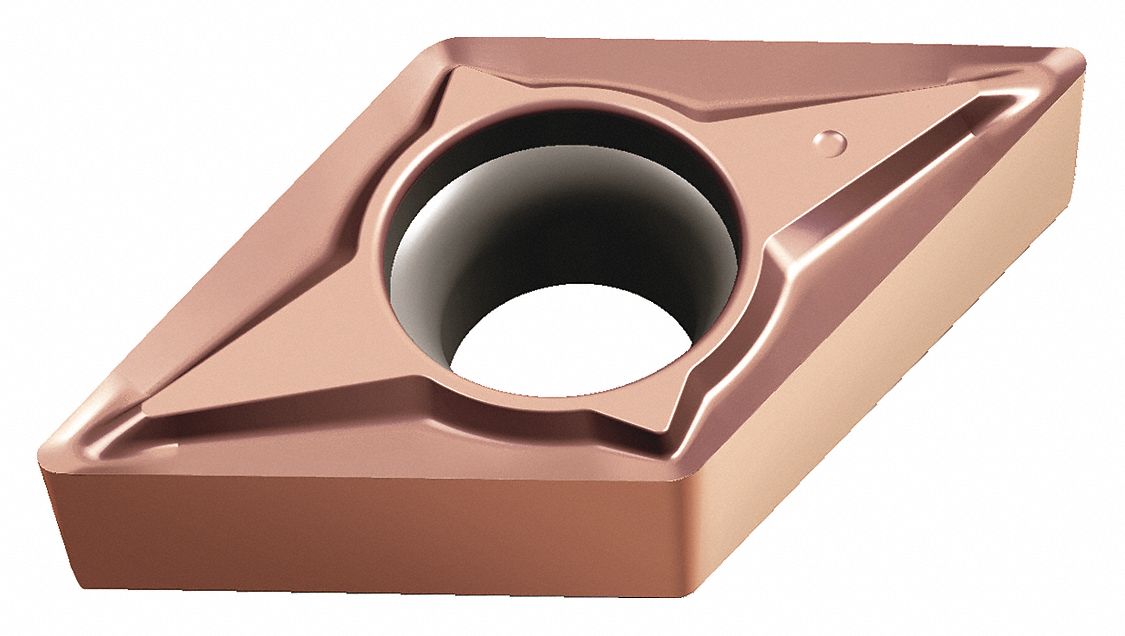

WALTER TOOLS DCGT070204-PM2 WXN10 Carbide Turning Insert Aluminium
Item: AF9MVDModel: DCGT070204-PM2 WXN10Cross Ref: 30FN25
7 In Stock
Ships within 2 days via
10.00% off
€29.70 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Turning Insert |
| Ansi Code | DCGT2(1.5)1-PM2 |
| Chip-breaker | Yes |
| Chip-breaker Code | PM2 |
| Clearance Angle | 7° |
| Coating | PVD |
| Corner Radius | 1/64" |
| Cutting Application | Turning |
| Cutting Edge Length | 7.75 mm |
| Finish - Machining | Ticn+ |
| Grade | Grade WXN10 |
| Included Angle | 55° |
| Inscribed Circle | 1/4" |
| Insert Code | DCGT21.51 |
| Insert Holding Type | 40° to 60°Countersink Hole |
| Insert Material | Carbide |
| Insert Size | 7 |
| Insert Style | DCGT |
| Iso Number | DCGT070204-PM2WXN10 |
| Iso Number | DCGT070204-PM2 |
| Manufacturer Grade | Wxn10 |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Mounting Style | Screw Clamp |
| No. Of Edges | 2 |
| Nose Radius | 0.015" |
| Number Of Cutting Edges | 2 |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Magnesium |
| Primary Material Application Iso Code | N |
| Rake | Positive |
| Relief Angle | 7 Degrees |
| Relief Angle | 7° |
| Shape | Rhombic |
| Style | DCGT |
| Thickness | 3/32" |
Shipping Info:
| Ship height (cm) | 1.09 |
| Ship length (cm) | 9.8 |
| Ship width (cm) | 3.99 |
| HS code | 8209000030 |
| Country of Origin | DE |
Product Details:
- Cast Iron (K) Compatibility (No)
- Hardened (H) Compatibility (No)
- Non Ferrous (N) Compatibility (Yes)
- Stainless (M) Compatibility (No)
- Steel (P) Compatibility (No)
- Super Alloy (S) Compatibility (No)
Product Variants
| Product | Model | Insert Code | Corner Radius | Chip-breaker Code | Nose Radius | Insert Style | Clearance Angle | Inscribed Circle | Thickness | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
DCGT070202-PM2 WXN10 | DCGT21.5.5 | 0.008" | PM2 | 0.007" | DCGT | 7° | 1/4" | 3/32" | €33.00 | |
 |
DCGT070204-PF2 WXN10 | DCGT21.51 | 1/64" | PF2 | 0.015" | DCGT | 7° | 1/4" | 3/32" | €33.63 |
