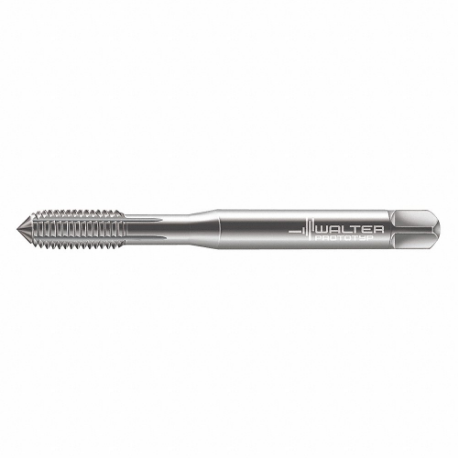

WALTER TOOLS D7063700-M5 5201828 Thread Forming Tap, Hss-E, Bright, M5X0.8 Thread Size, 13 mm Thread Length
Item: CU9JAAModel: D7063700-M5Cross Ref: 427X80 / 5201828
7 In Stock
Ships within 2 days via
10.00% off
€117.46 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Thread Forming Tap |
| 55% Thread Drill Size | 4.4 mm |
| 65% Thread Drill Size | 4.3 mm |
| 75% Thread Drill Size | 4.2 mm |
| Coolant Fed | Non Coolant Through |
| Extended Neck | Yes |
| Finish | Bright |
| Material Grade - Machining | Vanadium High Speed Steel |
| Number Of Flutes | 5 |
| Overall Length | 70 mm |
| Primary Material Application | All Materials |
| Primary Material Application Iso Code | H, K, M, N, O, P, S |
| Secondary Material Application | Aluminum, Brass, Bronze, Copper, Steel |
| Secondary Material Application Iso Code | N, P |
| Shank Dia. | 6 mm |
| Shank Length | 45 mm |
| Spiral Direction | Neutral |
| Square Size | 4.9 mm |
| Standards | Din 2174 |
| Tap Chamfer | Modified Bottom, Semi Bottoming |
| Tap Finish | Bright |
| Tap Material | High Speed Steel E |
| Tap Style | Thread Forming |
| Tap Type | Thread Forming |
| Thread Direction | Right Hand |
| Thread Length | 13 mm |
| Thread Limit | 6GX |
| Thread Limit/class Of Fit | 6GX |
| Thread Pitch | 0.8 mm |
| Thread Size | M5 X 0.8 |
| Thread Standard | Metric Coarse |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 7 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Tap Finish | Thread Length | Thread Limit | Number Of Flutes | Overall Length | Thread Size | 75% Thread Drill Size | Thread Standard | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EP2168706-M12X1.5 | TiCN | 21 mm | 6GX | 5 | 102 mm | - | - | Metric Fine | €172.99 | |
 |
EP2066746-M12 | TiCN | 23 mm | 6HX | 5 | 110 mm | - | - | Metric Coarse | €205.10 | |
 |
TC410.UNF5/8-L6-WY80AD | Tin | 1 1/8" | 2BX | 6 | 3 15/16" | 5/8"-18 | - | Fine | €303.38 | |
 |
D70617-M10 | Black Oxide | 20 mm | 6HX | 5 | 100 mm | M10 x 1.5 | 8.5 mm | Metric Coarse | €173.62 | |
|
D70617-M3.5 | Black Oxide | 11 mm | 6HX | 4 | 56 mm | M3.5 x 0.6 | 2.9 mm | Metric Coarse | €123.79 | |
|
D70617-M3 | Black Oxide | 9 mm | 6HX | 4 | 56 mm | M3 x 0.5 | 2.5 mm | Metric Coarse | €121.73 | |
|
D70617-M4 | Black Oxide | 12 mm | 6HX | 5 | 63 mm | M4 x 0.7 | 3.3 mm | Metric Coarse | €120.47 |
