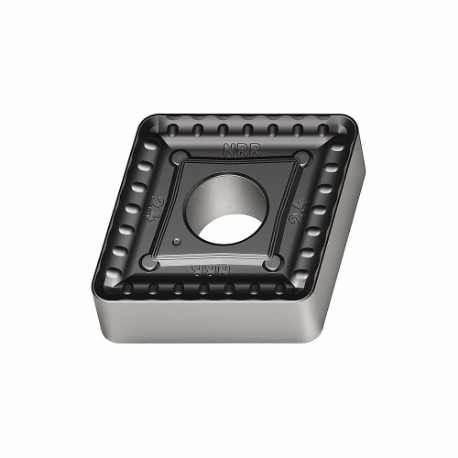

WALTER TOOLS CNMM190616-NRR WPP30S Diamond Turning Insert, Neutral, 1/4 Inch Thick, 1/16 Inch Corner Radius
Get it by Tuesday, Sep 1
This product can only be shipped in multiples of 10
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Turning Insert |
| Ansi Code | CNMM644-NRR WPP30S |
| Chip Breaker | Yes |
| Chip-breaker Code | NRR |
| Clearance Angle | 0° |
| Corner Radius | 1/16" |
| Cutting Application | Turning |
| Cutting Depth | 2 mm to 13 mm |
| Cutting Direction | Neutral |
| Cutting Edge Length | 19.34 mm |
| Cutting Speed | 270 SFPM to 620 SFPM |
| Dia. Of Inscribed Circle | 3/4" |
| Feed Rate | 0.02" to 0.043" |
| Finish-machining | Ticn+Al2O3+Ticn |
| Included Angle | 80° |
| Inscribed Circle | 3/4" |
| Insert Code | CNMM644 |
| Insert Holding Type | Straight Hole |
| Insert Style | CNMM |
| Insert Thickness | 1/4" |
| Iso Number | CNMM190616-NRR WPP30S |
| Major Clearance Angle | 0° |
| Manufacturer Grade | Wpp30S |
| Material | Carbide |
| Material-machining | Carbide |
| Measurement System | Fractional Inch |
| No. Of Cutting Edges | 2 |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Radius | 0.063" |
| Rake | Negative |
| Shape | Rhombic |
| System Of Measurement | Imperial |
| Thickness | 1/4" |
Shipping Info:
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Model | Cutting Edge Length | Thickness | Material | Manufacturer Grade | Material-machining | Finish-machining | Primary Material Application Iso Code | Cutting Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CCGT060202-X5 WTP35 | 0.254" | - | - | Wtp35 | - | Ticn+Tin | P | - | €40.13 | |
| CCGT060202-X5 WAK15 | 0.254" | - | Carbide | Wak15 | Carbide | Ticn+Al2O3+(Tin) | K | - | €39.70 | |
| CCGT060202-X15 WTP35 | 0.254" | - | - | Wtp35 | - | Ticn+Tin | P | - | €40.13 | |
| CCGT060202-X15 WXM15 | 0.254" | - | - | Wxm15 | - | Tialn+Tin | - | - | €39.70 | |
| CCGT060204-X5 WTP35 | 0.254" | - | - | Wtp35 | - | Ticn+Tin | P | - | €40.28 | |
| CCGT060204-X15 WXM15 | 0.254" | - | - | Wxm15 | - | Tialn+Tin | - | - | €39.23 | |
| CCGT060204-X5 WXM15 | 0.254" | - | - | Wxm15 | - | Tialn+Tin | - | - | €39.70 |
