WALTER TOOLS CNMG190624-RP5 WPP20S Carbide Turning Insert Cnmg 3/4 Inch
Item: AF8MLVModel: CNMG190624-RP5 WPP20SCross Ref: 28MG36
7 In Stock
Ships within 2 days via
5.00% off
€53.49 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Turning Insert |
| Ansi Code | CNMG646-RP5 WPP20S |
| Chip Breaker | Yes |
| Chip-breaker Code | RP5 |
| Clearance Angle | 0° |
| Coating | Chemical vapor deposition |
| Corner Radius | 3/32" |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Edge Length | 19.34 mm |
| Cutting Speed | 310 SFPM to 770 SFPM |
| Depth Of Cut | 2 mm to 10 mm |
| Dia. Of Inscribed Circle | 3/4" |
| Feed Rate | 0.018" to 0.039" |
| Finish-machining | Ticn+Al2O3+Ticn |
| Grade | Grade WPP20S |
| Included Angle | 80° |
| Inscribed Circle | 3/4" |
| Insert Code | CNMG646 |
| Insert Holding Type | Straight Hole |
| Insert Material | Carbide |
| Insert Size | 3/4" |
| Insert Style | CNMG |
| Insert Thickness | 1/4" |
| Iso Number | CNMG190624-RP5 WPP20S |
| Major Clearance Angle | 0° |
| Manufacturer Grade | Wpp20S |
| Material-machining | Carbide |
| Measurement System | Fractional Inch |
| Mounting Style | Screw Held |
| No. Of Cutting Edges | 4 , 8 |
| No. Of Edges | 8 |
| Nose Radius | 0.094" |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Radius | 0.094" |
| Rake | Negative |
| Relief Angle | 0° |
| Relief Angle | 0 Degrees |
| Shape | Rhombic |
| Style | CNMG |
| Thickness | 1/4" |
Shipping Info:
| Ship weight (kg) | 0.3 |
| Ship height (cm) | 1.3 |
| Ship length (cm) | 13.79 |
| Ship width (cm) | 5.61 |
| HS code | 8209000030 |
| Country of Origin | DE |
Product Details:
- Cast Iron (K) Compatibility (No)
- Hardened (H) Compatibility (No)
- Non Ferrous (N) Compatibility (No)
- Stainless (M) Compatibility (No)
- Steel (P) Compatibility (Yes)
- Super Alloy (S) Compatibility (No)
Product Variants
| Model | Cutting Edge Length | Manufacturer Grade | Grade | Chip-breaker Code | Ansi Code | Iso Number | Coating | Nose Radius | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CNMG190608-RP5 WPP10S | 19.34 mm | Wpp10S | Grade WPP10S | RP5 | CNMG642-RP5 WPP10S | CNMG190608-RP5 WPP10S | Chemical vapor deposition | 0.031" | - | RFQ
|
| CNMG190608-RP5 WPP20S | 19.34 mm | Wpp20S | Grade WPP20S | RP5 | CNMG642-RP5 WPP20S | CNMG190608-RP5 WPP20S | Chemical vapor deposition | 0.031" | - | RFQ
|
| CNMG190608-RP5 WPP30S | - | - | Grade WPP30S | RP | CNMG642-RP5 | CNMG190608-RP5 WPP30S | Chemical vapor deposition | 0.031" | - | RFQ
|

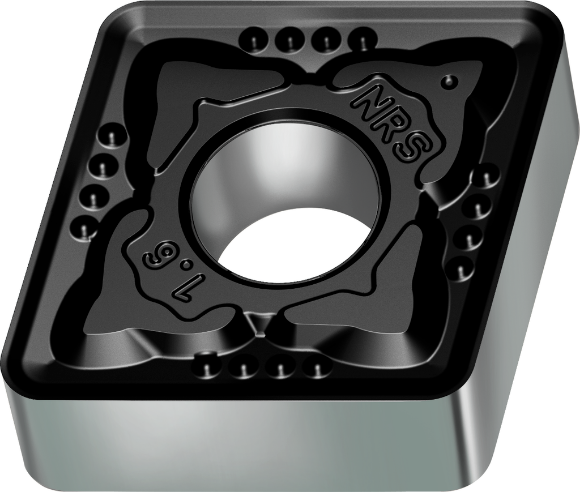

| CNMG190612-NRS WSM20 | - | - | Grade WSM20 | NRS | CNMG643-NRS | CNMG190612-NRS WSM20 | PVD | 0.047" | €49.09 | |
| CNMG190612-RP5 WPP10S | 19.34 mm | Wpp10S | Grade WPP10S | RP5 | CNMG643-RP5 WPP10S | CNMG190612-RP5 WPP10S | Chemical vapor deposition | 0.047" | €57.19 | |
| CNMG190612-RP5 WPP20S | 19.34 mm | Wpp20S | Grade WPP20S | RP5 | CNMG643-RP5 WPP20S | CNMG190612-RP5 WPP20S | Chemical vapor deposition | 0.047" | €59.24 | |
| CNMG190612-RP5 WPP30S | 19.34 mm | Wpp30S | Grade WPP30S | RP5 | CNMG643-RP5 WPP30S | CNMG190612-RP5 WPP30S | Chemical vapor deposition | 0.047" | €59.80 |
