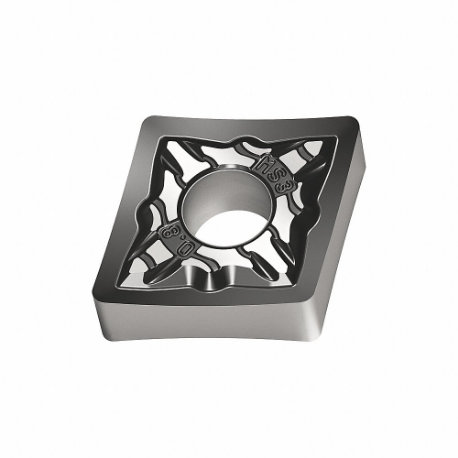

WALTER TOOLS CNMG120408-MS3 WSM01 6890871 Diamond Turning Insert, Neutral, 3/16 Inch Thick, 1/32 Inch Corner Radius
Item: CU9LXHModel: CNMG120408-MS3 WSM01Cross Ref: 53UT59 / 6890871
7 In Stock
Ships within 2 days via
5.00% off
€27.75 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Turning Insert |
| Ansi Code | CNMG432-MS3 WSM01 |
| Chip Breaker | Yes |
| Chip-breaker Code | MS3 |
| Clearance Angle | 0° |
| Corner Radius | 1/32" |
| Cutting Application | Turning |
| Cutting Depth | 0.8 mm to 3 mm |
| Cutting Direction | Neutral |
| Cutting Edge Length | 12.9 mm |
| Cutting Speed | 320 SFPM to 500 SFPM |
| Dia. Of Inscribed Circle | 1/2" |
| Feed Rate | 0.006" to 0.012" |
| Finish | Titanium Aluminum Nitride Coating |
| Finish-machining | TiAlN |
| Included Angle | 80° |
| Inscribed Circle | 1/2" |
| Insert Code | CNMG432 |
| Insert Holding Type | Straight Hole |
| Insert Style | CNMG |
| Insert Thickness | 0.188" |
| Iso Number | CNMG120408-MS3 WSM01 |
| Major Clearance Angle | 0° |
| Manufacturer Grade | Wsm01 |
| Material | Carbide |
| Material-machining | Carbide |
| Measurement System | Fractional Inch |
| No. Of Cutting Edges | 2 , 4 |
| Primary Material Application | Nickel, Stainless Steel, Titanium |
| Primary Material Application Iso Code | M, S |
| Radius | 0.031" |
| Rake | Negative |
| Shape | Rhombic |
| System Of Measurement | Imperial |
| Thickness | 3/16" |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Model | Cutting Edge Length | Thickness | Material | Manufacturer Grade | Material-machining | Finish-machining | Primary Material Application Iso Code | Cutting Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CCGT060202-X5 WTP35 | 0.254" | - | - | Wtp35 | - | Ticn+Tin | P | - | €40.13 | |
| CCGT060202-X5 WAK15 | 0.254" | - | Carbide | Wak15 | Carbide | Ticn+Al2O3+(Tin) | K | - | €39.70 | |
| CCGT060202-X15 WTP35 | 0.254" | - | - | Wtp35 | - | Ticn+Tin | P | - | €40.13 | |
| CCGT060202-X15 WXM15 | 0.254" | - | - | Wxm15 | - | Tialn+Tin | - | - | €39.70 | |
| CCGT060204-X5 WTP35 | 0.254" | - | - | Wtp35 | - | Ticn+Tin | P | - | €40.28 | |
| CCGT060204-X15 WXM15 | 0.254" | - | - | Wxm15 | - | Tialn+Tin | - | - | €39.23 | |
| CCGT060204-X5 WXM15 | 0.254" | - | - | Wxm15 | - | Tialn+Tin | - | - | €39.70 |
