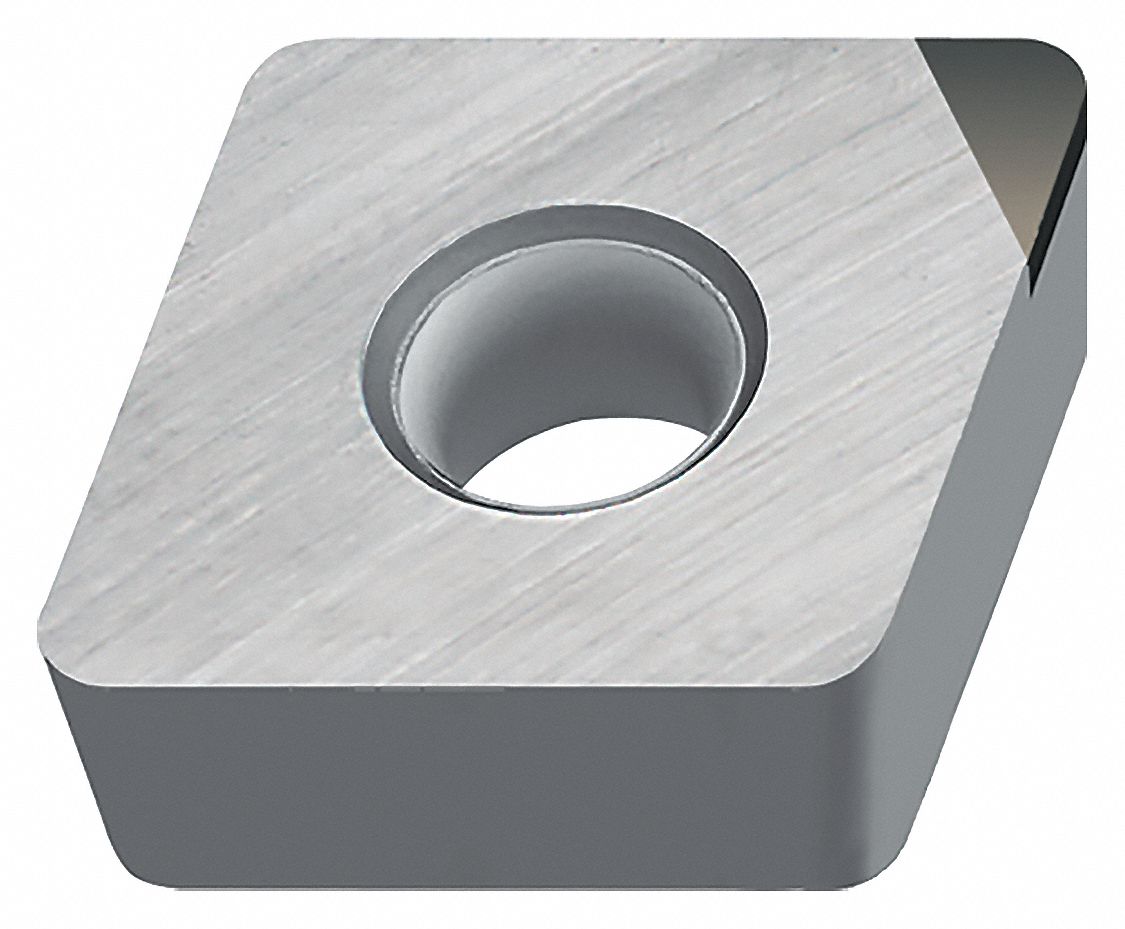

WALTER TOOLS CCMW060204-2 WCB50 Carbide Turning Insert Hardened Material
Item: AF9MRVModel: CCMW060204-2 WCB50Cross Ref: 30FL55
7 In Stock
Ships within 2 days via
10.00% off
€161.19 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Turning Insert |
| Ansi Code | CCMW2(1.5)1-2 |
| Chip-breaker | Yes |
| Chip-breaker Code | Mw |
| Clearance Angle | 7° |
| Coating | Uncoated |
| Corner Radius | 1/64" |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Edge Length | 6.45 mm |
| Depth Of Cut | 0.4 mm to 2.5 mm |
| Grade | Grade WCB50 |
| Included Angle | 80° |
| Inscribed Circle | 1/4" |
| Insert Code | CCMW21.51 |
| Insert Holding Type | 40° to 60°Countersink Hole |
| Insert Material | Carbide |
| Insert Size | 6 |
| Insert Style | CCMW |
| Iso Number | CCMW060204-2 |
| Iso Number | CCMW060204-2WCB50 |
| Manufacturer Grade | Wcb50 |
| Material - Machining | CBN |
| Measurement System | Fractional Inch |
| Mounting Style | Screw Clamp |
| No. Of Edges | 2 |
| Nose Radius | 0.015" |
| Number Of Cutting Edges | 2 |
| Primary Material Application | Hardened Steel |
| Primary Material Application Iso Code | H |
| Rake | Positive |
| Relief Angle | 7 Degrees |
| Relief Angle | 7° |
| Shape | Rhombic |
| Style | CCMW |
| Thickness | 3/32" |
| Wiper Insert | Yes |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 1.5 |
| Ship length (cm) | 4.09 |
| Ship width (cm) | 3.91 |
| HS code | 8209000030 |
| Country of Origin | DE |
Product Details:
- Cast Iron (K) Compatibility (No)
- Hardened (H) Compatibility (Yes)
- Non Ferrous (N) Compatibility (No)
- Stainless (M) Compatibility (No)
- Steel (P) Compatibility (No)
- Super Alloy (S) Compatibility (No)
