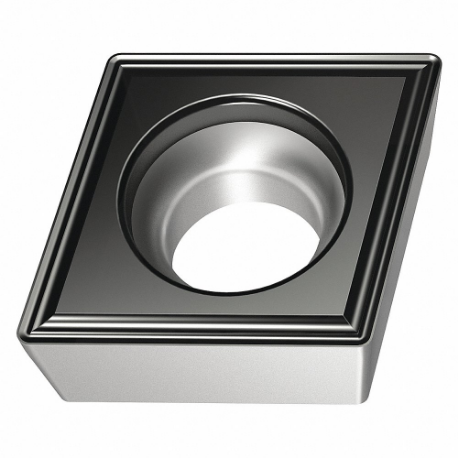

WALTER TOOLS CCMT120404-FP6 WPP20S Diamond Turning Insert, Neutral, 3/16 Inch Thick, 1/64 Inch Corner Radius
Get it by Thursday, Dec 18
This product can only be shipped in multiples of 10
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Turning Insert |
| Ansi Code | CCMT431-FP6 WPP20S |
| Chip-breaker | Yes |
| Chip-breaker Code | FP6 |
| Clearance Angle | 7° |
| Corner Radius | 1/64" |
| Cutting Application | Turning |
| Cutting Depth | 0.3 mm to 2.5 mm |
| Cutting Direction | Neutral |
| Cutting Edge Length | 12.9 mm |
| Finish - Machining | Ticn+Al2O3+Ticn |
| Included Angle | 80° |
| Inscribed Circle | 1/2" |
| Insert Code | CCMT431 |
| Insert Holding Angle | 40° to 60.0° |
| Insert Holding Type | 40° To 60° Countersink Hole |
| Insert Style | CCMT |
| Iso Number | CCMT120404-FP6 WPP20S |
| Manufacturer Grade | Wpp20S |
| Material | Carbide |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Number Of Cutting Edges | 2 |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Rake | Positive |
| Shape | Rhombic |
| System Of Measurement | Imperial |
| Thickness | 3/16" |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Model | Insert Code | Corner Radius | Clearance Angle | Cutting Direction | Insert Style | Thickness | Inscribed Circle | Chip-breaker Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CCGT060202-X5 WTP35 | CCGT.5 | 0.008" | 7° | Neutral | CCGT | - | - | X5 | €40.13 | |
| CCGT060202-X5 WAK15 | CCGT.5 | 0.008" | 7° | Neutral | CCGT | - | - | X5 | €39.70 | |
| CCGT060202-X15 WTP35 | CCGT.5 | 0.008" | 7° | Neutral | CCGT | - | - | X15 | €40.13 | |
| CCGT060202-X15 WXM15 | CCGT.5 | 0.008" | - | Neutral | CCGT | - | - | X15 | €39.70 | |
| CCGT060204-X5 WTP35 | CCGT1 | 1/64" | 7° | Neutral | CCGT | - | - | X5 | €40.28 | |
| CCGT060204-X15 WXM15 | CCGT1 | 1/64" | - | Neutral | CCGT | - | - | X15 | €39.23 | |
| CCGT060204-X5 WXM15 | CCGT1 | 1/64" | 7° | Neutral | CCGT | - | - | X5 | €39.70 |
