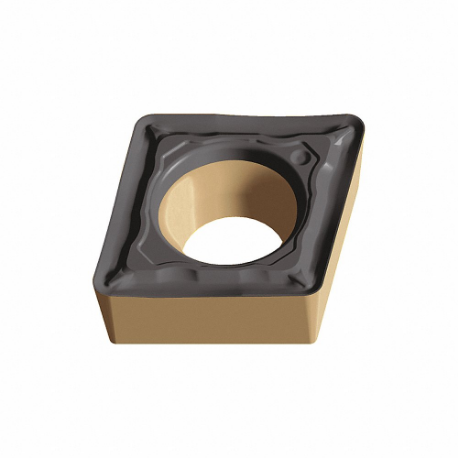

WALTER TOOLS CCMT09T308-PF4 WPP01 Diamond Turning Insert, Neutral, 5/32 Inch Thick, 1/32 Inch Corner Radius
Item: CU9NLJModel: CCMT09T308-PF4 WPP01Cross Ref: 53UR05
7 In Stock
Ships within 2 days via
5.00% off
€18.61 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Turning Insert |
| Ansi Code | CCMT3(2.5)2-PF4 WPP01 |
| Chip Breaker | Yes |
| Chip-breaker Code | PF4 |
| Clearance Angle | 7° |
| Corner Radius | 1/32" |
| Cutting Application | Turning |
| Cutting Depth | 0.1 mm to 1.5 mm |
| Cutting Direction | Neutral |
| Cutting Edge Length | 9.67 mm |
| Cutting Speed | 830 SFPM to 1240 SFPM |
| Dia. Of Inscribed Circle | 3/8" |
| Feed Rate | 0.003" to 0.008" |
| Finish-machining | Ticn+Al2O3+Tin |
| Included Angle | 80° |
| Inscribed Circle | 3/8" |
| Insert Code | CCMT32.52 |
| Insert Holding Angle | 40° to 60.0° |
| Insert Holding Type | 40° To 60° Countersink Hole |
| Insert Style | CCMT |
| Insert Thickness | 0.156" |
| Iso Number | CCMT09T308-PF4 WPP01 |
| Major Clearance Angle | 7° |
| Manufacturer Grade | Wpp01 |
| Material | Carbide |
| Material-machining | Carbide |
| Measurement System | Fractional Inch |
| No. Of Cutting Edges | 2 |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Radius | 0.031" |
| Rake | Positive |
| Shape | Rhombic |
| System Of Measurement | Imperial |
| Thickness | 5/32" |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Model | Cutting Edge Length | Thickness | Material | Manufacturer Grade | Material-machining | Finish-machining | Primary Material Application Iso Code | Cutting Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CCGT060202-X5 WTP35 | 0.254" | - | - | Wtp35 | - | Ticn+Tin | P | - | €40.13 | |
| CCGT060202-X5 WAK15 | 0.254" | - | Carbide | Wak15 | Carbide | Ticn+Al2O3+(Tin) | K | - | €39.70 | |
| CCGT060202-X15 WTP35 | 0.254" | - | - | Wtp35 | - | Ticn+Tin | P | - | €40.13 | |
| CCGT060202-X15 WXM15 | 0.254" | - | - | Wxm15 | - | Tialn+Tin | - | - | €39.70 | |
| CCGT060204-X5 WTP35 | 0.254" | - | - | Wtp35 | - | Ticn+Tin | P | - | €40.28 | |
| CCGT060204-X15 WXM15 | 0.254" | - | - | Wxm15 | - | Tialn+Tin | - | - | €39.23 | |
| CCGT060204-X5 WXM15 | 0.254" | - | - | Wxm15 | - | Tialn+Tin | - | - | €39.70 |
