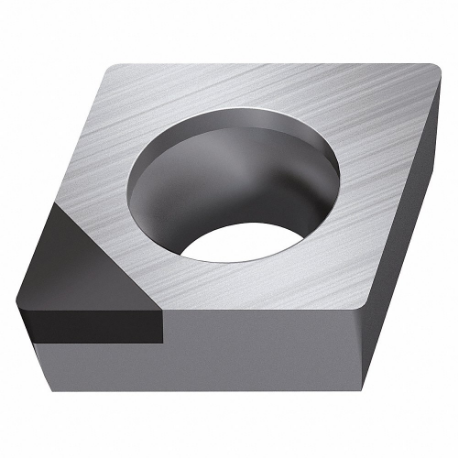

WALTER TOOLS CCGW09T304FSL-9 WDN10 6674538 Diamond Turning Insert, Left Hand, 5/32 Inch Thick, 1/64 Inch Corner Radius
Item: CU9NCDModel: CCGW09T304FSL-9 WDN10Cross Ref: 449W59 / 6674538
7 In Stock
Ships within 2 days via
10.00% off
€248.78 /unit
This product can only be shipped in multiples of 2Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Turning Insert |
| Ansi Code | CCGW3(2.5)1FSL-9 |
| Chip-breaker | Yes |
| Chip-breaker Code | FSL-9 |
| Clearance Angle | 7° |
| Corner Radius | 1/64" |
| Cutting Application | Turning |
| Cutting Depth | 0.1 mm to 9.7 mm |
| Cutting Direction | Left Hand |
| Cutting Edge Length | 9.67 mm |
| Included Angle | 80° |
| Inscribed Circle | 3/8" |
| Insert Code | CCGW32.51 |
| Insert Holding Angle | 40° to 60.0° |
| Insert Holding Type | 40° To 60° Countersink Hole |
| Insert Style | CCGW |
| Iso Number | CCGW09T304FSL-9 |
| Manufacturer Grade | Wdn10 |
| Material | Polycrystalline Diamond |
| Material - Machining | Polycrystalline Diamond |
| Measurement System | Fractional Inch |
| Number Of Cutting Edges | 1 |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Magnesium |
| Primary Material Application Iso Code | N |
| Rake | Positive |
| Shape | Rhombic |
| System Of Measurement | Imperial |
| Thickness | 5/32" |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Model | Insert Code | Corner Radius | Clearance Angle | Cutting Direction | Insert Style | Thickness | Inscribed Circle | Chip-breaker Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CCGT060202-X5 WTP35 | CCGT.5 | 0.008" | 7° | Neutral | CCGT | - | - | X5 | €40.13 | |
| CCGT060202-X5 WAK15 | CCGT.5 | 0.008" | 7° | Neutral | CCGT | - | - | X5 | €39.70 | |
| CCGT060202-X15 WTP35 | CCGT.5 | 0.008" | 7° | Neutral | CCGT | - | - | X15 | €40.13 | |
| CCGT060202-X15 WXM15 | CCGT.5 | 0.008" | - | Neutral | CCGT | - | - | X15 | €39.70 | |
| CCGT060204-X5 WTP35 | CCGT1 | 1/64" | 7° | Neutral | CCGT | - | - | X5 | €40.28 | |
| CCGT060204-X15 WXM15 | CCGT1 | 1/64" | - | Neutral | CCGT | - | - | X15 | €39.23 | |
| CCGT060204-X5 WXM15 | CCGT1 | 1/64" | 7° | Neutral | CCGT | - | - | X5 | €39.70 |
