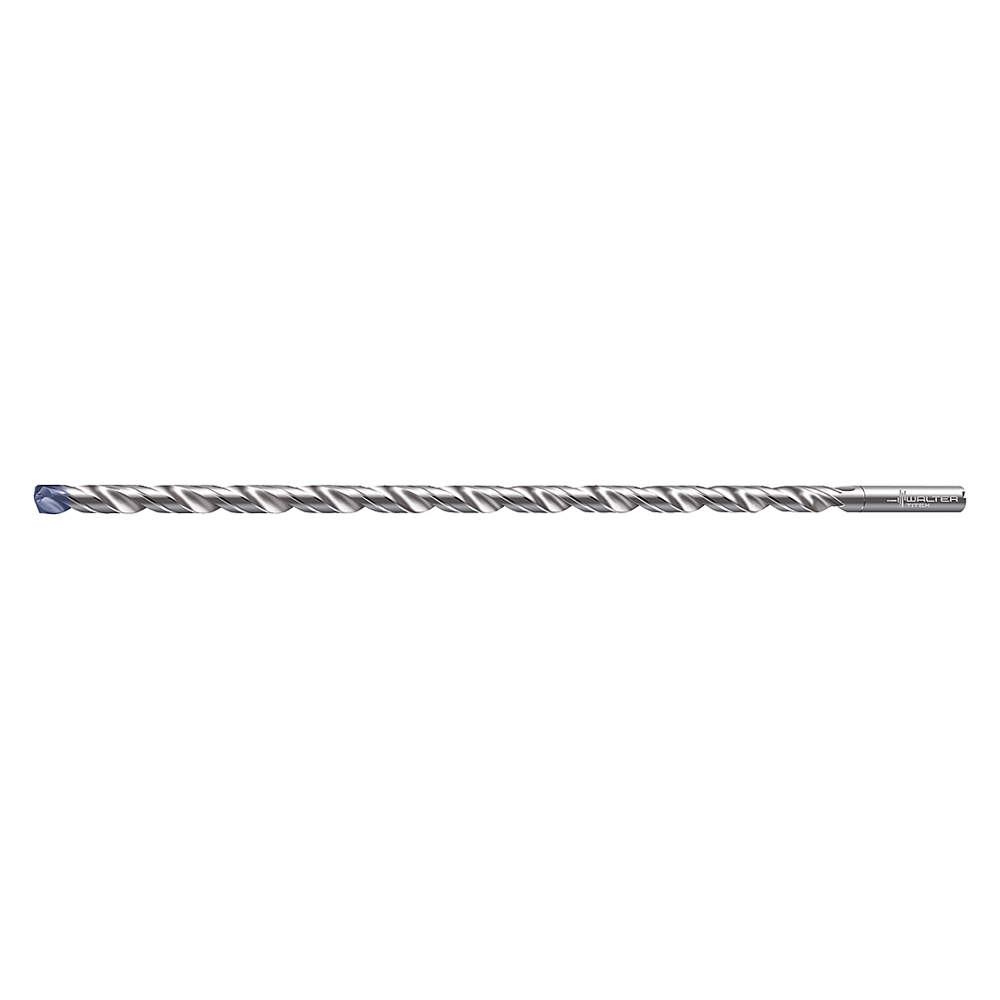

WALTER TOOLS A6994TFP-8 5565037 Coolant Fed Drill 8mm 140 Carbide
Item: AF8XPNModel: A6994TFP-8Cross Ref: 29HY29 / 5565037
7 In Stock
Ships within 2 days via
10.00% off
€985.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Drill Bit |
| Coolant Fed | Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.315 |
| Depthdia. Ratio | 30xd |
| Dimension Type | Metric |
| Drill Bit Point Angle | 140° |
| Drill Bit Point Type | Self Centering Point |
| Drill Bit Size | 8 mm |
| Drill Diameter Tolerance | H7 |
| Drill Length Class | Jobber Length |
| Drill Point Length | 1.46 mm |
| Finish - Machining | Tinal |
| Flute Length | 256 mm |
| Flute Type | Spiral |
| Grade | Grade K30F |
| List Number | A3382 |
| Material | Solid Carbide |
| Material - Machining | Carbide |
| Material Grade - Machining | Grade K30F |
| Maximum Drilling Depth | 256 mm |
| Measurement System | Metric |
| Number Of Coolant Holes | 2 |
| Number Of Flutes | 2 |
| Overall Length | 294 mm |
| Point Angle | 140° |
| Point Type | Self Centering |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Hardened Steel, Nickel, Stainless Steel, Titanium |
| Secondary Material Application Iso Code | H, K, M, N, S |
| Series | X.Treme Dh30 |
| Shank Dia. | 8 mm |
| Shank Length | 36 mm |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 29.4 |
| Ship width (cm) | 2.54 |
| HS code | 8466100130 |
| Country of Origin | FR |
Product Details:
- Coolant Through (Yes)
Product Variants
| Model | Decimal Equivalent | Size | Dimension Type | Material | Point Angle | Finish | Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|
| A6994TFP-3 | 0.1181 | 3" | Metric | Solid Carbide | 140° | - | Grade K30F | €926.57 | |
| A6994TFP-1/8IN | 0.125 | 3.175 mm | Fractional Inch | Solid Carbide | 140° | - | Grade K30F | €926.57 | |
| A6994TFP-3.5 | 0.1378 | - | Metric | Solid Carbide | 140° | - | Grade K30F | €912.67 | |
| A6994TFP-9/64IN | 0.1406 | 3.572 mm | Fractional Inch | Solid Carbide | - | - | Grade K30F | €912.67 | |
| A6994TFP-5/32IN | 0.1563 | 3.969 mm | Fractional Inch | Solid Carbide | - | AlTiN Coat | Grade K30F | €912.67 | |
| A6994TFP-4 | 0.1575 | - | Metric | Solid Carbide | 140° | - | Grade K30F | €912.67 | |
| A6994TFP-4.5 | 0.1772 | - | Metric | Solid Carbide | 140° | - | Grade K30F | €912.67 |
