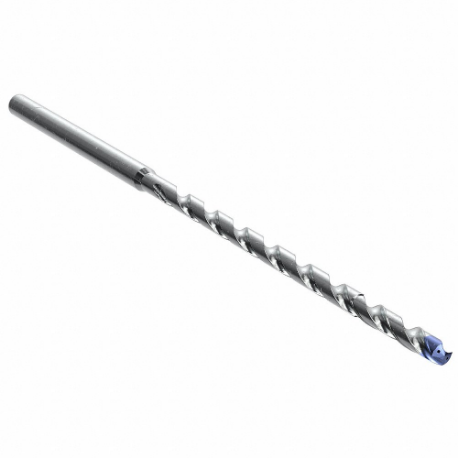

WALTER TOOLS A6789AMP-3/32IN Micro Drill Bit, 3/32 Inch Drill Bit Size, 2 3/16 Inch Flute Length, 3 mm Shank Dia
Get it by Wednesday, Feb 18
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Micro Drill Bit |
| Circuit Board Drill | No |
| Coolant Fed | Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.0938 |
| Depthdia. Ratio | 20xd |
| Drill Bit Point Angle | 140° |
| Drill Bit Point Type | Self Centering Point |
| Drill Bit Size | 3/32" |
| Drill Diameter Tolerance | H7 |
| Finish - Machining | AlTiN |
| Flute Length | 2 3/16" |
| Flute Type | Spiral |
| Grade | High Performance |
| Material | Carbide |
| Material - Machining | Carbide |
| Material Grade - Machining | HIGH PERFORMANCE |
| Maximum Drilling Depth | 2.205" |
| Measurement System | Fractional Inch |
| Number Of Flutes | 2 |
| Overall Length | 97 mm |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Nickel, Stainless Steel, Steel, Titanium |
| Primary Material Application Iso Code | K, M, N, P, S |
| Secondary Material Application | Composite, Hardened Steel |
| Secondary Material Application Iso Code | H, O |
| Shank Dia. | 3 mm |
| Shank Length | 37 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Standards | Tp-Norm 67M |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 9.7 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Overall Length | Decimal Equivalent | Shank Dia. | Drill Bit Size | Max. Drilling Depth | Price | |
|---|---|---|---|---|---|---|---|---|
 |
DB130-05-00.990U0-WJ30UU | 25 mm | 0.039 | 1.5 mm | #61 | 0.268" | €51.17 | |
 |
A3162-0.99 | 25 mm | 0.039 | 1.5 mm | #61 | 7.3 mm | - | RFQ
|
 |
A3143-0.94 | 25 mm | 0.037 | 1.5 mm | #63 | - | €15.41 | |
|
A3162-0.94 | 25 mm | 0.037 | 1.5 mm | #63 | 6.47 mm | - | RFQ
|
|
DB130-05-00.940U0-WJ30UU | 25 mm | 0.037 | 1.5 mm | #63 | 0.236" | €53.27 | |
 |
A3153-0.94 | 25 mm | 0.037 | 1.5 mm | #63 | 0.236" | €28.27 | |
|
A3143-0.89 | 25 mm | 0.035 | 1.5 mm | #65 | 0.236" | €15.91 |
