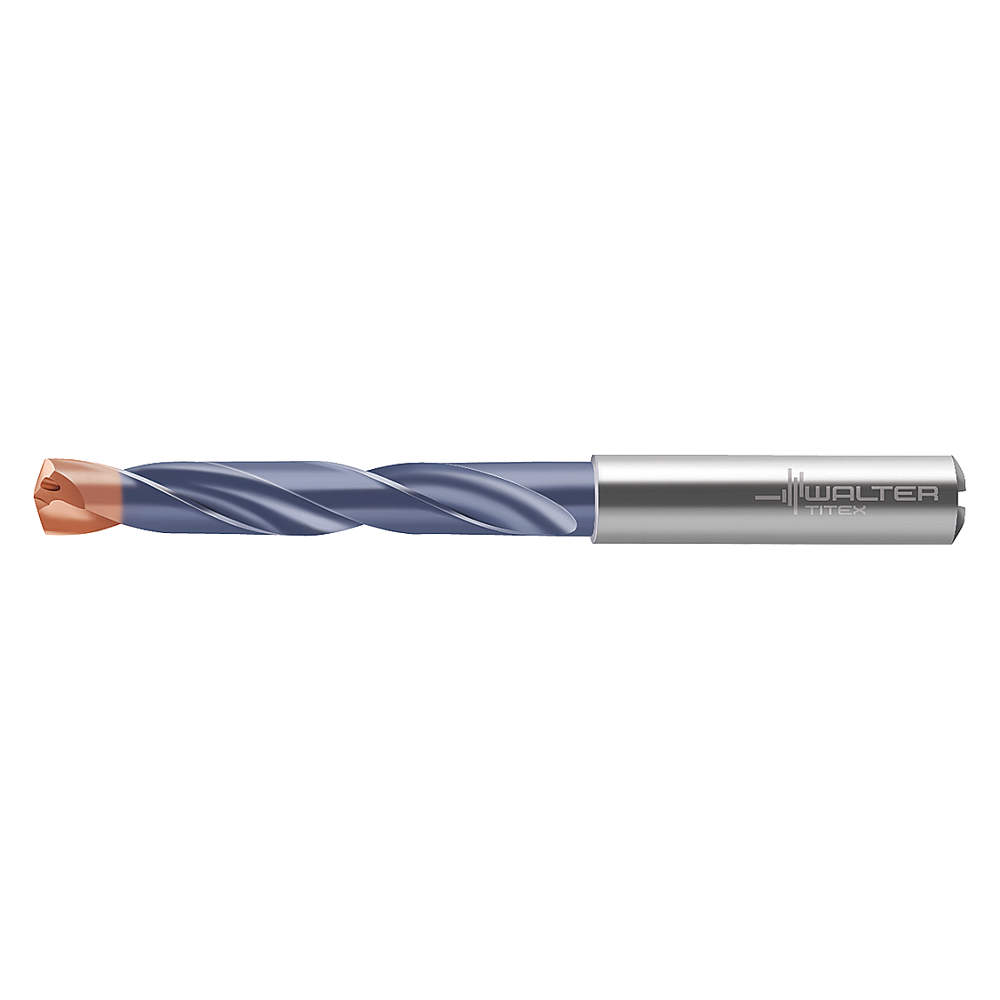

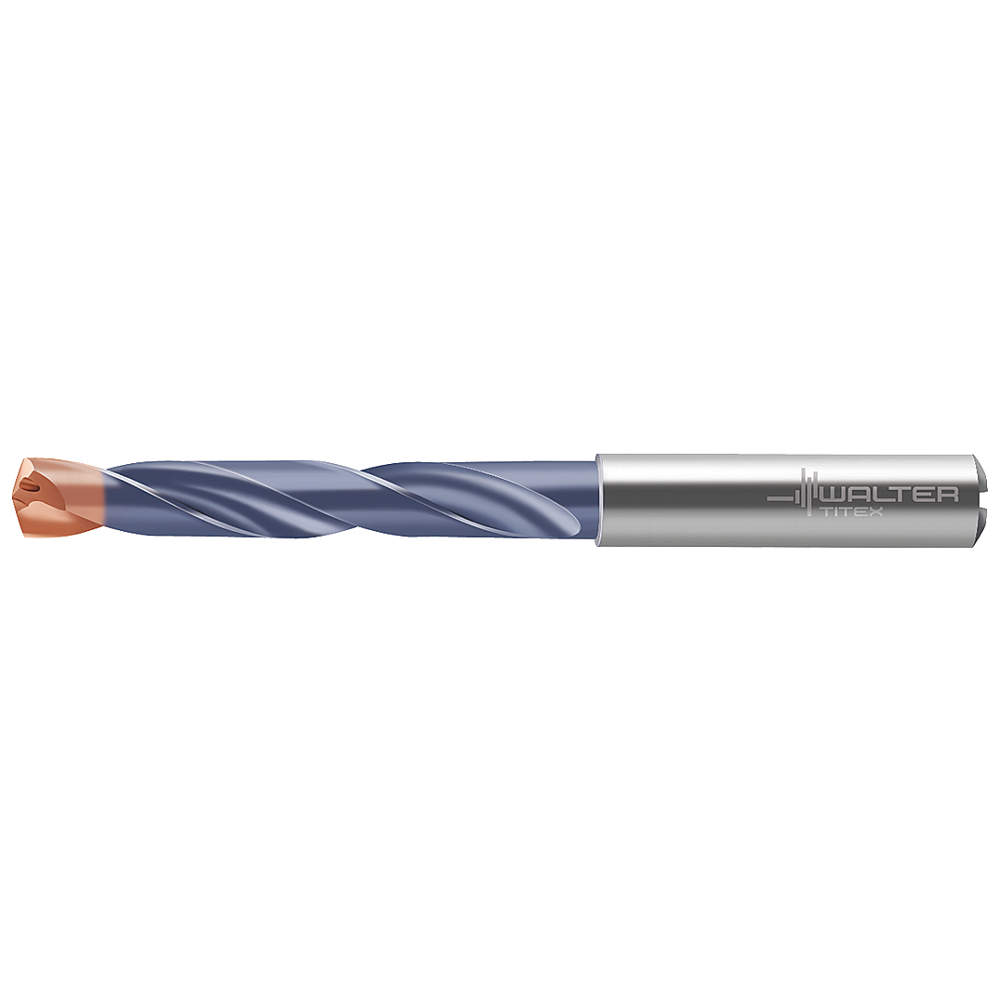

WALTER TOOLS A3389DPL-5 5337027 Coolant Fed Drill 5mm 140 Carbide
Item: AF8UHXModel: A3389DPL-5Cross Ref: 29HC38 / 5337027
7 In Stock
Ships within 2 days via
10.00% off
€260.09 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Drill Bit |
| Coolant Fed | Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.1969 |
| Depthdia. Ratio | 5xd |
| Dimension Type | Metric |
| Drill Bit Point Angle | 140° |
| Drill Bit Point Type | Self Centering Point |
| Drill Bit Size | 5 mm |
| Drill Diameter Tolerance | M7 |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.91 mm |
| Finish | TiAlN |
| Finish - Machining | TiAlN |
| Flute Length | 44 mm |
| Flute Type | Spiral |
| Grade | Grade K30F |
| List Number | A3382 |
| Material | Solid Carbide |
| Material - Machining | Carbide |
| Material Grade - Machining | Grade K30F |
| Maximum Drilling Depth | 35 mm |
| Measurement System | Metric |
| Number Of Coolant Holes | 2 |
| Number Of Flutes | 2 |
| Overall Length | 82 mm |
| Point Type | Self Centering |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Hardened Steel, Nickel, Stainless Steel, Steel, Titanium |
| Primary Material Application Iso Code | H, K, M, N, P, S |
| Secondary Material Application | Composite |
| Secondary Material Application Iso Code | O |
| Series | X.Treme Plus |
| Shank Diameter | 6 mm |
| Shank Length | 36 mm |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Size | 5" |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8.2 |
| Ship width (cm) | 2.54 |
| HS code | 8466100130 |
| Country of Origin | CN |
Product Details:
- Coolant Through (Yes)
Product Variants
| Model | Decimal Equivalent | Size | Dimension Type | Material | Finish | Point Angle | Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|
| A3389DPL-3 | 0.118" | 3" | Metric | Solid Carbide | TiAlN | 140° | Grade K30F | €343.67 | |
| A3389DPL-3.1 | 0.122 | 3.1 mm | Metric | Solid Carbide | TiAlN | 140° | Grade K30F | €289.38 | |
| A3389DPL-1/8IN | 0.125 | 3.175 mm | Fractional Inch | Solid Carbide | TiAlN | - | Grade K30F | €303.53 | |
| A3389DPL-3.2 | 0.126 | 3.2 mm | Metric | Solid Carbide | TiAlN | 140° | Grade K30F | €343.67 | |
| A3389DPL-3.3 | 0.1299 | 3.3 mm | Metric | Solid Carbide | TiAlN | 140° | Grade K30F | €335.51 | |
| A3389DPL-3.4 | 0.1339 | 3.4 mm | Metric | Solid Carbide | TiAlN | 140° | Grade K30F | €289.38 | |
| A3389DPL-3.5 | 0.1378 | - | Metric | Solid Carbide | TiAlN | 140° | Grade K30F | €343.67 |
