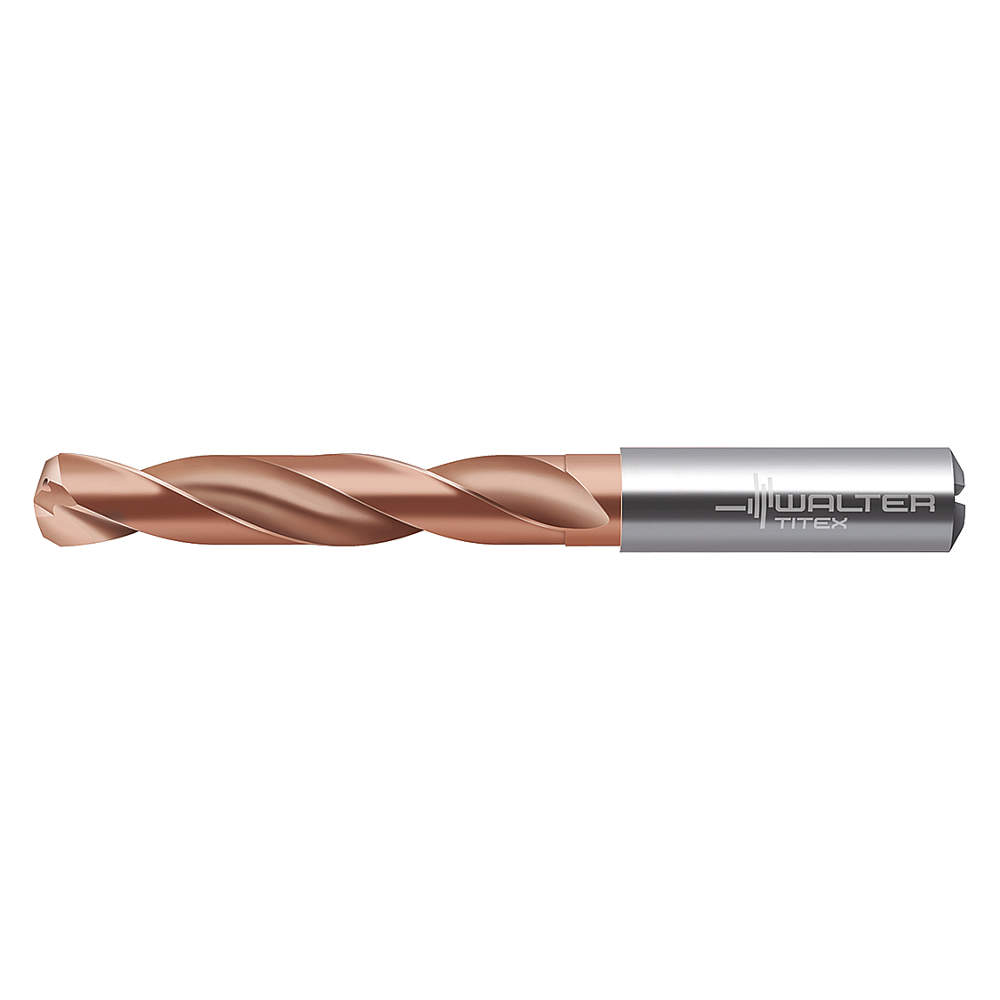

WALTER TOOLS A3382XPL-9 Coolant Fed Drill 9mm 140 Carbide
Item: AF8UCYModel: A3382XPL-9Cross Ref: 29HA42
7 In Stock
Ships within 2 days via
5.00% off
€428.29 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Drill Bit |
| Coolant Fed | Coolant Through |
| Cutting Direction | Right Hand |
| Cutting Edge Dia. | 0.354" |
| Cutting Edge Length | 1.929" |
| Decimal Equivalent | 0.3543 |
| Depth Dia. Ratio | 5xd |
| Dimensions Type | Metric |
| Drill Bit Point Angle | 140° |
| Drill Bit Point Type | Self Centering Point |
| Drill Bit Size | 9 mm |
| Drill Dia. Tolerance | M7 |
| Drill Length Class | Jobber Length |
| Drill Point Length | 1.64 mm |
| Finish | AlCrN |
| Finish-machining | AlCrn |
| Flute Length | 61 mm |
| Flute Type | Spiral |
| Grade | Grade K30F |
| Length | 4.055" |
| List Number | A3382 |
| Material | Solid Carbide |
| Material Grade-machining | Grade K30F |
| Material-machining | Carbide |
| Max. Drilling Depth | 49 mm |
| Measurement System | Metric |
| No. Of Coolant Holes | 2 |
| No. Of Flutes | 2 |
| Overall Length | 103 mm |
| Point Type | Self Centering |
| Primary Material Application | Cast Iron |
| Primary Material Application Iso Code | K |
| Secondary Material Application | Aluminum, Brass, Bronze, Copper |
| Secondary Material Application Iso Code | N |
| Series | X.Treme Ci |
| Shank Dia. | 10 mm |
| Shank Length | 40 mm |
| Shank Type-machining | Straight |
| Sheeter Drill | No |
| Size | 9 mm |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10.3 |
| Ship width (cm) | 2.54 |
| HS code | 8466100130 |
| Country of Origin | DE |
Product Details:
- Coolant Through (Yes)
Product Variants
| Model | Shank Dia. | Flute Length | Decimal Equivalent | Shank Length | Drill Bit Size | Primary Material Application Iso Code | Drill Dia. Tolerance | Drill Point Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| A3382XPL-4.2 | 6 mm | 36 mm | 0.1654 | 36 mm | 4.2 mm | K | M7 | 0.764 mm | - | RFQ
|
| A3382XPL-4.5 | 6 mm | 36 mm | 0.1772 | 36 mm | 4.5 mm | K | M7 | 0.819 mm | - | RFQ
|
| A3382XPL-3 | 6 mm | 28 mm | 0.1181 | 36 mm | 3 mm | K | M7 | 0.546 mm | €343.67 | |
| A3382XPL-3.3 | 6 mm | 28 mm | 0.1299 | 36 mm | 3.3 mm | K | M7 | 0.601 mm | €321.54 | |
| A3382XPL-3.5 | 6 mm | 28 mm | 0.1378 | 36 mm | 3.5 mm | K | M7 | 0.637 mm | €321.54 | |
| A3382XPL-4 | 6 mm | 36 mm | 0.1575 | 36 mm | 4 mm | K | M7 | 0.728 mm | - | RFQ
|
| A3382XPL-5 | 6 mm | 44 mm | 0.1969 | 36 mm | 5 mm | K | M7 | 0.91 mm | €321.54 |
