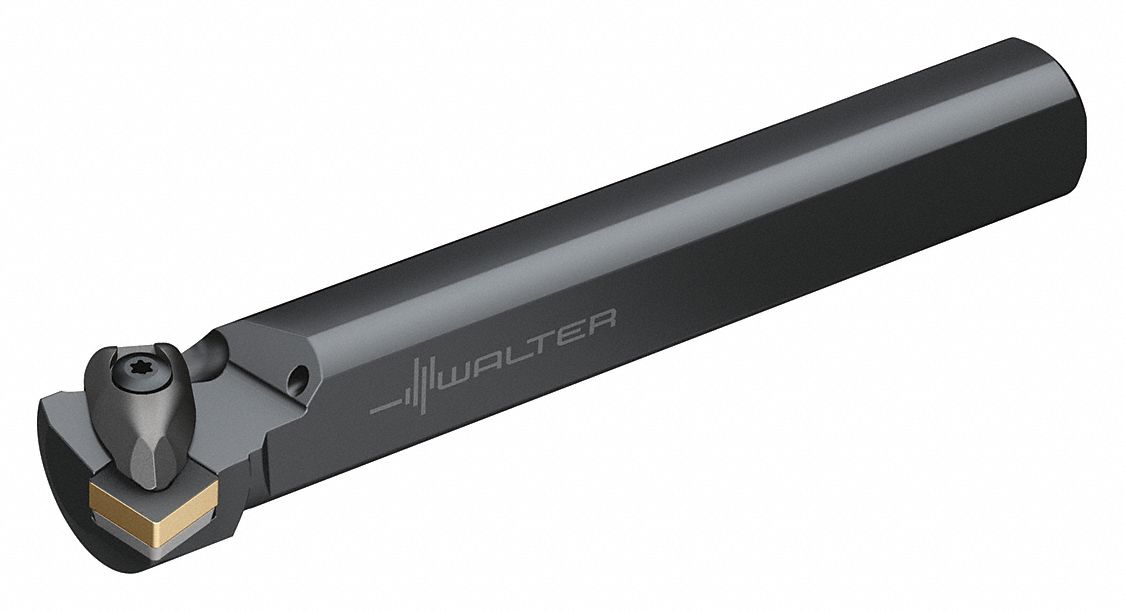

WALTER TOOLS A32T-DSKNR12 5522863 Indexable Boring Bar Top And Hole Clamp
Item: AF9METModel: A32T-DSKNR12Cross Ref: 30EP09 / 5522863
7 In Stock
Ships within 2 days via
5.00% off
€601.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Indexable Boring Bar |
| Ansi Number | A32T-DSKNR12 |
| Approach Angle | 75° |
| Bar Dia. | 1.260" |
| Center To Cutting Tip | 22 mm |
| Compatible Hardware | Ap355-Sn12 Shim, Fs1461 Screw, Fs1465 Torx Key, Fs1470 Pressure Spring, Fs1473 Clamp Screw, Pk241 Clamp, Rs117 Pin |
| Connection Dia. | 1.26" |
| Coolant Fed | Coolant Through |
| Coolant Pressure | 145.038 psi |
| Cutting Angle | -6° |
| Cutting Application | Facing, Interrupted Cuts, Profiling, Turning |
| Cutting Direction | Right |
| Cutting Edge Angle | -6° |
| Functional Length | 11.811" |
| Functional Width | 0.866" |
| Hand | R |
| Head Material | Steel |
| Inclination Angle | -9° |
| Included | Ap355-Sn12 Shim, Fs1461 Screw, Fs1465 Torx Key, Fs1470 Pressure Spring, Fs1473 Clamp Screw, Pk241 Clamp, Rs117 Pin |
| Insert Clearance Angle | 0° |
| Insert Holding Type | Clamp |
| Insert Seat Size | 12 |
| Insert Shape | Square |
| Insert Size | 1204 |
| Insert Style | SN |
| Iso Number | A32T-DSKNR12 |
| Lead Angle | 75° |
| Max. Bore Depth | 128 mm |
| Min. Bore Dia. | 40 mm |
| Min. Dia. | 1.575" |
| Mounting Style | Top And Hole Clamping |
| No. Of Coolant Holes | 1 |
| No. Of Inserts | 1 |
| Orthogonal Rake Angle | -6° |
| Overall Length | 303.05 mm |
| Primary Material Application | Cast Iron, Hardened Steel, Nickel, Steel, Titanium |
| Primary Material Application Iso Code | H, K, S |
| Rake | Negative |
| Secondary Material Application | Stainless Steel |
| Secondary Material Application Iso Code | M |
| Shank Dia. | 32 mm |
| Shank Height | 1.181" |
| Side Cutting Edge Angle | -6° |
| Style | 75 Degrees Boring And Facing |
| Type | Coolant Thru |
Shipping Info:
| Ship weight (kg) | 1.69 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 30.3 |
| Ship width (cm) | 2.54 |
| HS code | 8209000030 |
| Country of Origin | SE |
Product Variants
| Product | Model | Min. Bore Dia. | Shank Material | Shank Dia. | Bar Dia. | Insert Size | Functional Width | Functional Length | Min. Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A12S-DTFNR3 | 1.024" | High Speed Steel | 3/4" | 0.472" | - | 1/2" | 10" | 1.024" | €565.82 | |
 |
A16T-DWLNR4 | 1.299" | High Speed Steel | 1" | 0.63" | - | 3/4" | 12" | 1.299" | €605.97 | |
 |
A24T-DCLNL4 | 1.76" | High Speed Steel | 1 1/2" | 0.945" | - | 0.89" | 12" | 1 19/25" | €746.91 | |
|
A12S-DTFNL3 | 1.024" | High Speed Steel | 3/4" | 0.472" | - | 1/2" | 10" | 1.024" | €558.26 | |
|
A16T-DCLNL4 | 1.28" | High Speed Steel | 1" | 0.63" | - | 16/25" | 12" | 1 7/25" | €605.97 | |
|
A16T-DCLNR4 | 1.28" | High Speed Steel | 1" | 0.63" | - | 16/25" | 12" | 1 7/25" | €605.97 | |
 |
A16T-DDUNL4 | 1 1/2" | High Speed Steel | 1" | 0.63" | - | 3/4" | 12" | 1 1/2" | €605.97 |
