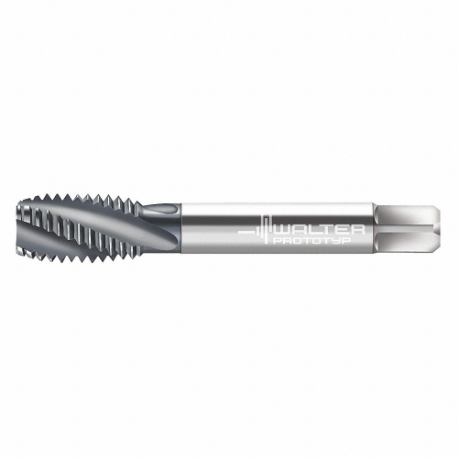

WALTER TOOLS A224503-UNC1 Spiral Flute Tap, 1-8 Thread Size, 37 mm Thread Length, 130.20 mm Length, Nit
Get it by Tuesday, Feb 17
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 29/32" |
| 65% Thread Drill Size | 57/64" |
| 75% Thread Drill Size | 22.25 mm |
| Class Of Fit | Class 3B |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 0.876" |
| Extended Neck | Yes |
| Features | For Long Chipping Materials |
| Finish | Black Oxide |
| Helix Angle | 25° |
| Material Grade - Machining | Grade NIT |
| Measurement System | Fractional Inch |
| Number Of Flutes | 5 |
| Overall Length | 130.2 mm |
| Primary Material Application | Nickel, Titanium |
| Primary Material Application Iso Code | S |
| Secondary Material Application | Steel |
| Secondary Material Application Iso Code | P |
| Shank Dia. | 20.32 mm |
| Shank Length | 64.6 mm |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Square Size | 15.24 mm |
| Standards | Ansi B94.9 |
| System Of Measurement | Imperial |
| Tap Chamfer | Bottoming |
| Tap Finish | Black Oxide |
| Tap Material | High Speed Steel |
| Tap Shank Standard | ANSI B94.9 |
| Tap Style | Spiral Flute |
| Tap Thread Size | 1"-8 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 37 mm |
| Thread Limit | H5 |
| Thread Limit / Class Of Fit | H5, 3B |
| Thread Size | 1"-8 |
| Thread Standard | Coarse |
| Threads Per Inch | 8 |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 13.02 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Thread Size | Thread Direction | Number Of Flutes | Thread Length | Thread Limit | Overall Length | Tap Finish | 75% Thread Drill Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A2340876-UNF0 | #0-80 | Right Hand | 3 | 5.5 mm | H1 | 41.3 mm | TiCN | 1.2 mm | €167.14 | |
 |
A2340806-UNF0 | #0-80 | Right Hand | 2 | 5.5 mm | H1 | 41.3 mm | TiCN | 1.2 mm | €147.22 | |
 |
224101-UNJC10 | #10-24 | Right Hand | 3 | 13.5 mm | 3B | 70 mm | Bright | #25 | €189.67 | |
 |
224164-UNC10 | #10-24 | Right Hand | 3 | 16 mm | H2, H3 | 70 mm | Bright | #25 | €118.54 | |
 |
22416-UNC10 | #10-24 | Right Hand | 3 | 16 mm | H3, H4 | 70 mm | Bright | #25 | €98.04 | |
 |
224102-UNC10 | #10-24 | Right Hand | 3 | 16 mm | H3, H4 | 70 mm | Bright | #25 | €98.04 | |
 |
P22509-UNC10 | #10-24 | Right Hand | 3 | 8 mm | H2, H3 | 70 mm | - | #25 | €72.34 |
