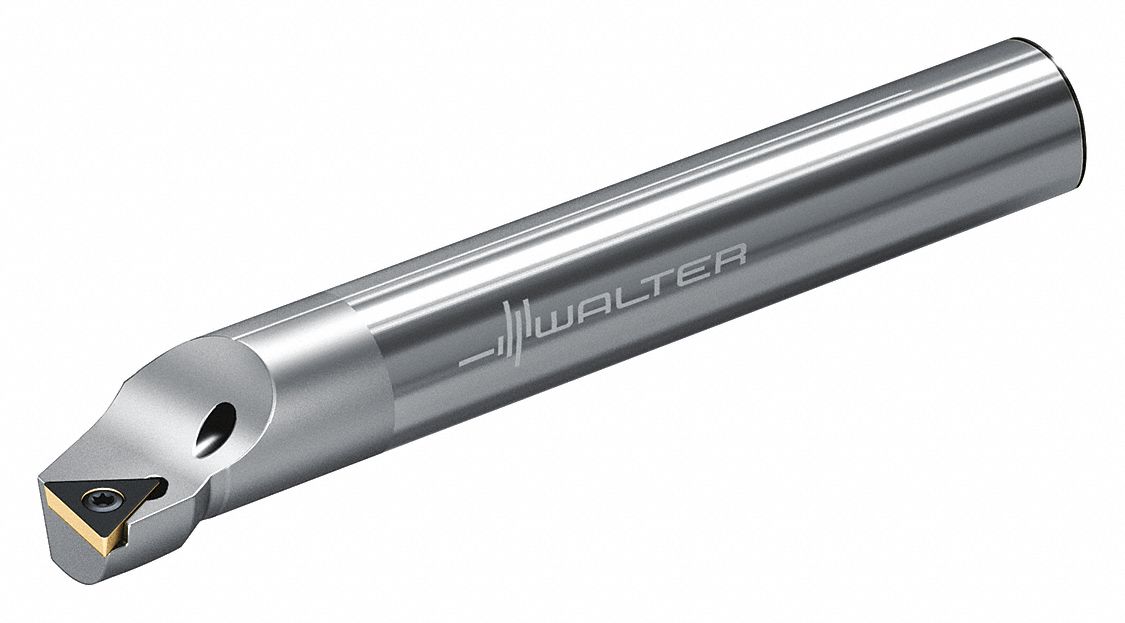

WALTER TOOLS A12M-STFCL11-R 5204680 Indexable Boring Bar Screw Clamp Steel
Item: AF9LWQModel: A12M-STFCL11-RCross Ref: 30EL96 / 5204680
7 In Stock
Ships within 2 days via
5.00% off
€264.46 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Indexable Boring Bar |
| Ansi Number | A12M-STFCL11-R |
| Approach Angle | 91° |
| Bar Dia. | 0.472" |
| Center To Cutting Tip | 9 mm |
| Compatible Hardware | Fs1490 Torx Key, Fs2067 Clamping Screw |
| Connection Dia. | 0.472" |
| Coolant Fed | Coolant Through |
| Cutting Angle | 0° |
| Cutting Application | Facing, Interrupted Cuts, Profiling, Turning |
| Cutting Direction | Left Hand |
| Cutting Edge Angle | 0° |
| Functional Length | 5.906" |
| Functional Width | 0.354" |
| Hand | L |
| Head Material | Steel |
| Inclination Angle | -7° |
| Included | Fs1490 Torx Key, Fs2067 Clamping Screw |
| Insert Clearance Angle | 7° |
| Insert Holding Type | Screw On |
| Insert Seat Size | 11 |
| Insert Shape | Triangular |
| Insert Size | 1102 |
| Insert Style | TC |
| Iso Number | A12M-STFCL11-R |
| Lead Angle | 90° |
| Max. Bore Depth | 48 mm |
| Min. Bore Dia. | 16 mm |
| Min. Dia. | 0.63" |
| Mounting Style | Screw Clamp |
| No. Of Coolant Holes | 1 |
| No. Of Inserts | 1 |
| Orthogonal Rake Angle | 0° |
| Overall Length | 150 mm |
| Primary Material Application | Cast Iron, Nickel, Stainless Steel, Steel, Titanium |
| Primary Material Application Iso Code | K, M, N, P, S |
| Rake | Positive |
| Secondary Material Application | Hardened Steel |
| Secondary Material Application Iso Code | H |
| Shank Dia. | 12 mm |
| Shank Material | High Speed Steel |
| Side Cutting Edge Angle | 0° |
| Style | 90 Degrees Boring And Facing |
| Type | Coolant Thru |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 15 |
| Ship width (cm) | 2.54 |
| HS code | 8209000030 |
| Country of Origin | US |
Product Variants
| Product | Model | Min. Bore Dia. | Shank Material | Shank Dia. | Bar Dia. | Insert Size | Functional Width | Functional Length | Min. Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A12S-SCLCL3 | 0.929" | High Speed Steel | 3/4" | 0.472" | - | 1/2" | 10" | 0.929" | €342.38 | |
|
A12S-SCLCR3 | 0.929" | High Speed Steel | 3/4" | 0.472" | - | 1/2" | 10" | 0.929" | €342.38 | |
|
A16T-SCLCL3 | 1.201" | High Speed Steel | 1" | 0.63" | - | 16/25" | 12" | 1.201" | €397.33 | |
|
A16T-SCLCL4 | 1.201" | High Speed Steel | 1" | 0.63" | - | 16/25" | 12" | 1.201" | €392.08 | |
|
A16T-SCLCR3 | 1.201" | High Speed Steel | 1" | 0.63" | - | 16/25" | 12" | 1.201" | €422.79 | |
 |
A20T-STFCR3 | 1.469" | High Speed Steel | 1 1/4" | 0.787" | - | 0.765" | 12" | 1.469" | €552.51 | |
 |
A20T-SVUBL3 | 1.705" | High Speed Steel | 1 1/4" | 0.787" | - | 1" | 12" | 1.705" | €549.59 |
