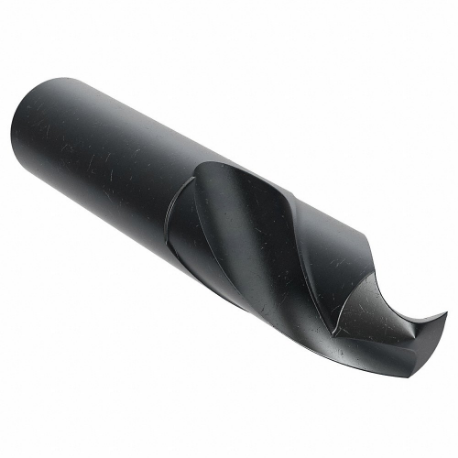

WALTER TOOLS A1111-28 Screw Machine Drill Bit, 28 mm Drill Bit Size, 3 3/16 Inch Flute Length, Conical Point | CU8WYT 442A37

WALTER TOOLS A1111-28 Screw Machine Drill Bit, 28 mm Size, 3 3/16 Inch Flute Length, Conical Point

Item: CU8WYTModel: A1111-28Cross Ref: 442A37
7 In Stock

Ships within 2 days via

€348.74
5.00% off
€331.30 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Screw Machine Drill Bit
Coolant Fed Non Coolant Through
Cutting Direction Right Hand
Cutting Edge Dia. 1.102"
Cutting Edge Length 2.087"
Decimal Equivalent 1.1024
Depth X Dia. Ratio 3xd
Drill Bit Point Angle 118°
Drill Bit Size 28 mm
Drill Dia. Tolerance H8
Drill Length Class Screw Machine Length
Drill Point Length 8.41 mm
Finish Bright Uncoated
Finish-machining Bright (Uncoated)
Flute Length 3 3/16"
Flute Type Spiral
Grade General Purpose
Length 6.378"
Material High Speed Steel
Material Grade-machining General Purpose
Material-machining High Speed Steel
No. Of Flutes 2
Overall Length 162 mm
Primary Material Application Cast Iron, Steel
Primary Material Application Iso Code K, P
Secondary Material Application Aluminum, Brass, Bronze, Composite, Copper, Nickel, Stainless Steel, Titanium
Secondary Material Application Iso Code M, N, O, S
Shank Dia. 28 mm
Shank Length 81 mm
Shank Type Straight
Shank Type-machining Straight
Sheeter Drill No
System Of Measurement Metric

Shipping Info:

Ship weight (kg) 0.27
Ship height (cm)2.54
Ship length (cm)16.2
Ship width (cm)2.54
Country of OriginFR

Product Variants

ProductModelShank Dia.Decimal EquivalentDrill Bit SizeOverall LengthPrice
WALTER TOOLS A1149XPL-NO1 Screw Machine Drill Bit, #1 Drill Bit Size, 1 3/32 Inch Flute Length, 66 mm Overall Length | CU8WFC 441L43 A1149XPL-NO15.79 mm0.228#166 mm€41.25
WALTER TOOLS A1148-NO1 Screw Machine Drill Bit, #1 Drill Bit Size, 1 3/32 Inch Flute Length, 66 mm Overall Length | CU8WFD 441H86 A1148-NO15.79 mm0.228#166 mm€19.04
WALTER TOOLS A1149XPL-NO10 Screw Machine Drill Bit, #10 Drill Bit Size, 62 mm Overall Length | CU8WFE 441L44 A1149XPL-NO104.92 mm0.1935#1062 mm€36.90
WALTER TOOLS A1148-NO11 Screw Machine Drill Bit, #11 Drill Bit Size, 62 mm Overall Length | CU8WFF 441H88 A1148-NO114.85 mm0.191#1162 mm€15.75
WALTER TOOLS A1149XPL-NO11 Screw Machine Drill Bit, #11 Drill Bit Size, 62 mm Overall Length | CU8WFG 441L45 A1149XPL-NO114.85 mm0.191#1162 mm€35.85
WALTER TOOLS A1148-NO12 Screw Machine Drill Bit, #12 Drill Bit Size, 62 mm Overall Length | CU8WFH 441H89 A1148-NO124.8 mm0.189#1262 mm€15.75
WALTER TOOLS A1149XPL-NO12 Screw Machine Drill Bit, #12 Drill Bit Size, 62 mm Overall Length | CU8WFJ 441L46 A1149XPL-NO124.8 mm0.189#1262 mm€35.85
