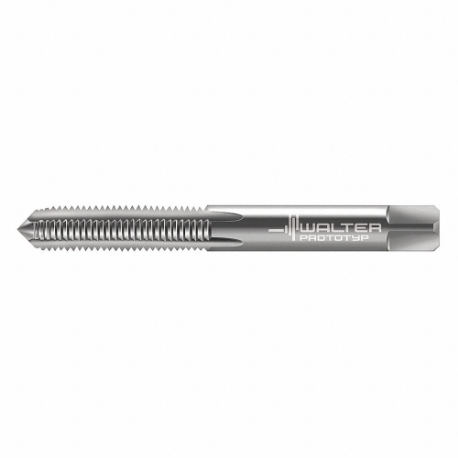

WALTER TOOLS 80311-M3 5079695 Straight Flute Tap, M3X0.5 Thread Size, 10 mm Thread Length, 56 mm Length
Item: CU9BTDModel: 80311-M3Cross Ref: 427J11 / 5079695
7 In Stock
Ships within 2 days via
€382.57 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Straight Flute Tap |
| 55% Thread Drill Size | #37 |
| 65% Thread Drill Size | #38 |
| 75% Thread Drill Size | 2.5 mm |
| Clamping Width | 0.106" |
| Connection Dia. | 0.138" |
| Coolant Fed | Non Coolant Through |
| Driving Square Length | 0.236" |
| Extended Neck | Yes |
| Functional Length | 2.205" |
| No. Of Flutes | 3 |
| No. Of Grooves | 3 |
| Overall Length | 56 mm |
| Primary Material Application | Aluminum, Brass, Bronze, Composite, Copper |
| Primary Material Application Iso Code | N, O |
| Secondary Material Application | Cast Iron, Hardened Steel, Nickel, Titanium |
| Secondary Material Application Iso Code | H, K, S |
| Shank Dia. | 3.5 mm |
| Shank Length | 21 mm |
| Shank Type-machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 2.7 mm |
| System Of Measurement | Metric |
| Tap Chamfer | Modified Bottoming, Semi Bottoming |
| Tap Finish | Bright Uncoated |
| Tap Length Standard | DIN 371 |
| Tap Material | High Speed Steel |
| Tap Shank Standard | DIN 371 |
| Tap Style | Straight Flute Hand |
| Thread Direction | Right Hand |
| Thread Length | 10 mm |
| Thread Limit/class Of Fit | D3 |
| Thread Pitch | 0.02" |
| Thread Size | M3 x 0.5 |
| Thread Standard | Metric Coarse |
| Usable Length | 1.378" |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 5.6 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Model | Thread Standard | Shank Dia. | Functional Length | Connection Dia. | Usable Length | Clamping Width | Driving Square Length | Thread Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 8231106-UNC10 | Coarse | 6 mm | 2.756" | 0.236" | 0.63" | 0.193" | 0.315" | 16 mm | €481.93 | |
| 8331106-UNF10 | Fine | 6 mm | 2.756" | 0.236" | 1.85" | 0.193" | 0.315" | 16 mm | €481.93 | |

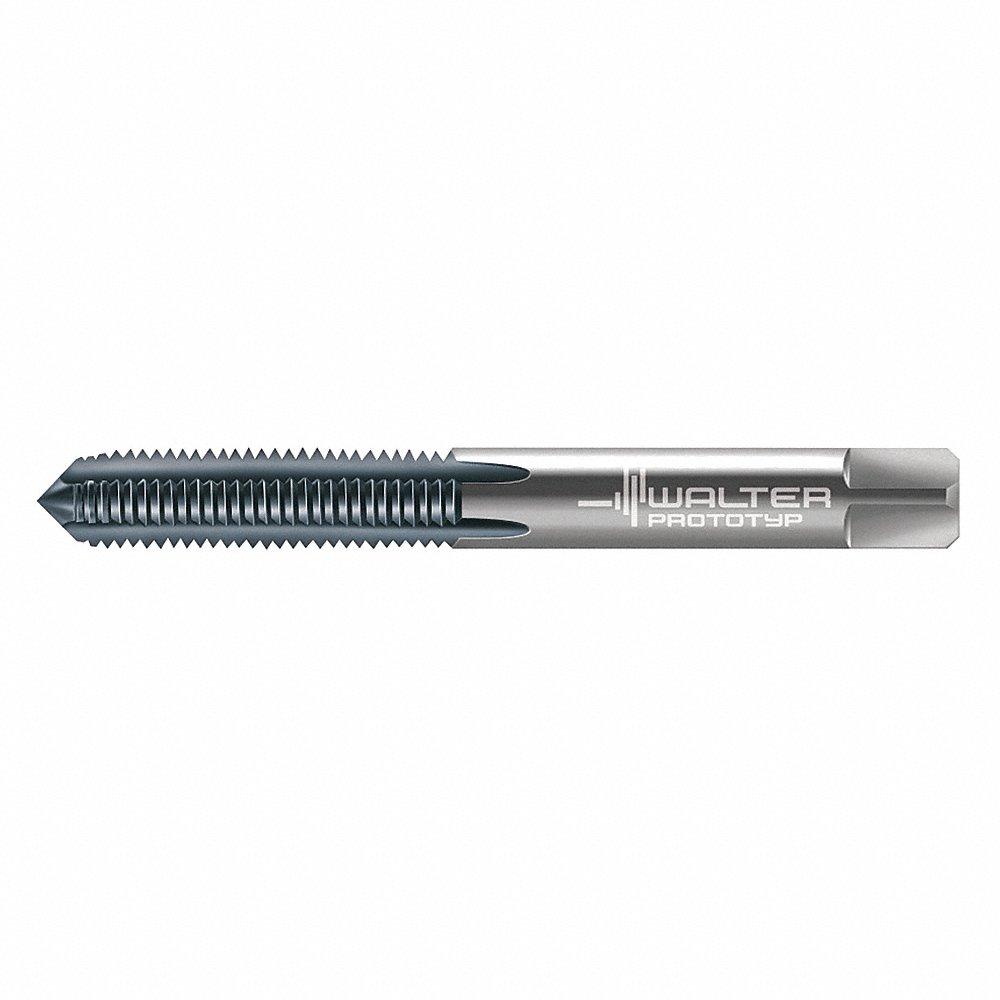

| 8231106-UNC1/4 | Coarse | 7 mm | 3.15" | 0.276" | 0.787" | 0.217" | 0.315" | 20 mm | €638.58 | |
| 8331106-UNF1/4 | Fine | 17/64" | 3.15" | 0.276" | 2.244" | 0.217" | 0.315" | 3/4" | €638.58 | |
| 8231106-UNC3/8 | Coarse | 10 mm | 3.937" | 0.394" | 1.181" | 0.315" | 0.433" | 30 mm | €1,022.98 | |
| 8331106-UNF3/8 | Fine | 25/64" | 3.543" | 0.394" | 2.441" | 0.315" | 0.433" | 1 1/8" | €1,022.98 | |
| 8231106-UNC5/16 | Coarse | - | 3.543" | 0.315" | 0.984" | 0.244" | 0.354" | 25 mm | €781.35 |
