WALTER TOOLS 8021006-M6 5344196 Spiral Point Tap, M6X1 Thread Size, 19 mm Thread Length, 80 mm Length
Item: CU9HUJModel: 8021006-M6Cross Ref: 427H93 / 5344196
7 In Stock
Ships within 2 days via
€390.24 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Point Tap |
| 55% Thread Drill Size | 5.25 mm |
| 65% Thread Drill Size | 13/64" |
| 75% Thread Drill Size | 5 mm |
| Clamping Width | 0.193" |
| Class Of Fit | Class 6H |
| Connection Dia. | 0.236" |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 5 mm |
| Driving Square Length | 0.315" |
| Extended Neck | Yes |
| Functional Length | 3.15" |
| No. Of Flutes | 3 |
| Overall Length | 80 mm |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Shank Dia. | 6 mm |
| Shank Length | 50 mm |
| Shank Type-machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 4.9 mm |
| System Of Measurement | Metric |
| Tap Chamfer | Plug |
| Tap Finish | TiCN |
| Tap Material | Carbide |
| Tap Thread Size | M6 x 1 |
| Thread Direction | Right Hand |
| Thread Length | 19 mm |
| Thread Limit | 6HX |
| Thread Pitch | 0.039" |
| Thread Size | M6 x 1 |
| Usable Length | 1.181" |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Model | Shank Dia. | Overall Length | Drill Bit Size | Thread Standard | Thread Direction | Primary Material Application | Tap Finish | Extended Neck | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 8121006-M10X1 | 10 mm | 90 mm | 9 mm | Metric Fine | Right Hand | Cast Iron, Steel | TiCN | Yes | €628.77 | |
| 8021006-M10 | 10 mm | - | 8.5 mm | Metric Coarse | Right Hand | Cast Iron, Steel | TiCN | Yes | €557.46 | |

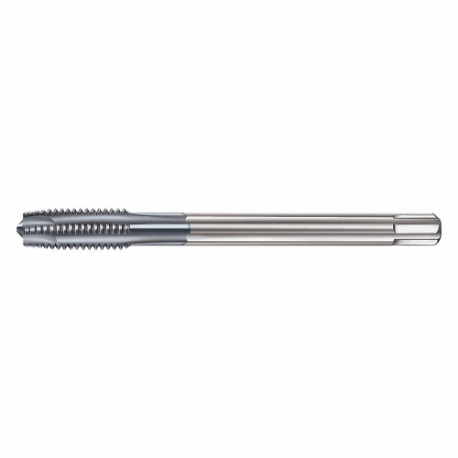

| 8126006-M12X1.5 | 9 mm | 100 mm | 10.5 mm | Metric Fine | Right Hand | Cast Iron, Steel | TiCN | Yes | €711.40 | |
| 8026006-M12 | 9 mm | - | 10.2 mm | Metric Coarse | Right Hand | Cast Iron, Steel | TiCN | Yes | €658.36 | |
| 8126006-M14X1.5 | 11 mm | 100 mm | 12.75 mm | Metric Fine | Right Hand | Cast Iron, Steel | TiCN | Yes | €897.47 | |
| 8126006-M16X1.5 | 12 mm | 100 mm | 14.8 mm | Metric Fine | Right Hand | Cast Iron, Steel | TiCN | Yes | €1,004.48 | |

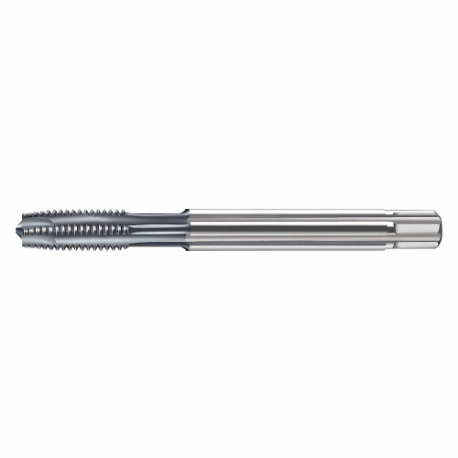

| 8121006-M8X1 | 8 mm | 90 mm | 7 mm | Metric Fine | Right Hand | Cast Iron, Steel | TiCN | Yes | €577.14 |
