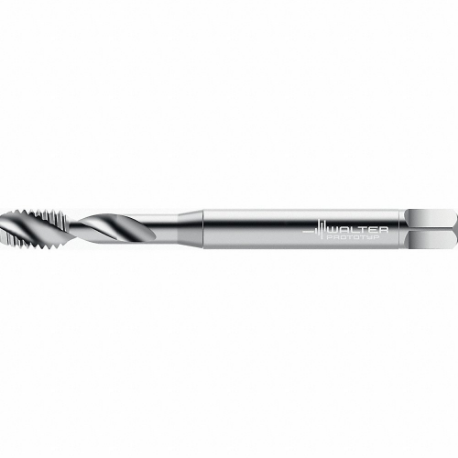

WALTER TOOLS 7569501 Spiral Flute Tap, 0.2310 Inch Thread Size, 0.3940 Inch Thread Length, 3.150 Inch Length
Item: CU9DDLModel: 7569501Cross Ref: 60HF09
7 In Stock
Ships within 2 days via
10.00% off
€77.11 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 0.1673" |
| 65% Thread Drill Size | 0.1633" |
| 75% Thread Drill Size | #21 |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | #21 |
| Extended Neck | Yes |
| Features | For Long-Chipping Aluminum Alloys (Si Content Less Than 7%) |
| Finish | Bright |
| Fits Class | Class 3B |
| Measurement System | Wire |
| Number Of Flutes | 2 |
| Overall Length | 3.15" |
| Primary Material Application | Aluminium, Brass, Bronze, Copper |
| Primary Material Application Iso Code | N |
| Secondary Material Application | Graphite, Plastic, Super Alloy, Synthetic Materials, Titanium |
| Secondary Material Application Iso Code | O, S |
| Shank Dia. | 0.255" |
| Shank Length | 1.969" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Square Size | 0.191" |
| Standards | Ansi, Din |
| Tap Chamfer | Modified Bottoming |
| Tap Finish | Bright |
| Tap Material | High Speed Steel |
| Tap Style | Spiral Flute |
| Tap Thread Size | #10-32 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 0.394" |
| Thread Limit | 3B |
| Thread Limit/class Of Fit | 3B, 3B |
| Thread Size | 0.231" |
| Thread Standard | Fine |
| Threads Per Inch | 32 |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8 |
| Ship width (cm) | 2.54 |
| Country of Origin | IN |
Product Variants
| Product | Model | Thread Size | Thread Direction | Thread Limit | Number Of Flutes | Overall Length | Thread Length | 75% Thread Drill Size | Tap Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
23400-UNF0 | #0-80 | Right Hand | H1 | 3 | 40 mm | 6 mm | 1.2 mm | Bright | €141.41 | |
|
23410-UNF0 | #0-80 | Right Hand | H1, H2 | 3 | 40 mm | 6 mm | 1.2 mm | Bright | €131.93 | |
 |
AS2251005-UNC10 | #10-24 | Right Hand | H3, H4 | 3 | 70 mm | 11 mm | #25 | Tin/Vap | €91.44 | |
 |
EP2251302-UNC10 | #10-24 | Right Hand | H3, H4 | 3 | 70 mm | 8 mm | #25 | THL | €107.87 | |
 |
22410-UNC10 | #10-24 | Right Hand | H3, H4 | 3 | 70 mm | 8 mm | #25 | Bright | €78.08 | |
 |
AEP2251302-UNC10 | #10-24 | Right Hand | H3, H4 | 3 | 70 mm | 8 mm | #25 | THL | €107.42 | |
 |
TC115-UNC10-C0-WY80AA | #10-24 | Right Hand | H3, H4 | 3 | 70 mm | 8 mm | #25 | Tin | €40.56 |
