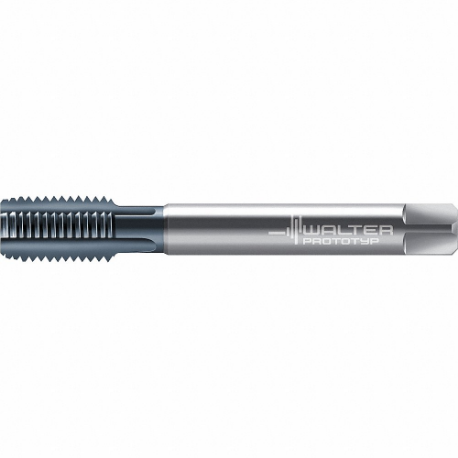

WALTER TOOLS 7569324 Straight Flute Tap, 9/16-12 Thread Size, 0.9840 Inch Thread Length, 4.3310 Inch Length
Item: CU9BBBModel: 7569324Cross Ref: 60HC54
7 In Stock
Ships within 2 days via
10.00% off
€317.33 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Straight Flute Tap |
| 55% Thread Drill Size | 1/2" |
| 65% Thread Drill Size | 0.4921" |
| 75% Thread Drill Size | 0.4803" |
| Coolant Fed | Coolant Through |
| Extended Neck | No |
| Finish | Titanium Carbonitride Coated |
| Fits Class | Class 2B |
| Material Grade - Machining | TiCN |
| Measurement System | Decimal Inch |
| Number Of Flutes | 4 |
| Overall Length | 4.331" |
| Primary Material Application | Aluminium, Brass, Bronze, Cast Iron, Copper, Graphite, Plastic, Synthetic Materials |
| Primary Material Application Iso Code | K, N, O |
| Shank Dia. | 0.429" |
| Shank Length | 1.1692" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 0.322" |
| Standards | Ansi, Din |
| System Of Measurement | Imperial |
| Tap Chamfer | Modified Bottoming |
| Tap Finish | TiCN |
| Tap Length Standard | ANSI, DIN |
| Tap Material | High Speed Steel E |
| Tap Shank Standard | ANSI, DIN |
| Tap Style | Straight Flute |
| Tap Type | Straight Flute |
| Thread Direction | Right Hand |
| Thread Length | 0.984" |
| Thread Limit | 2B |
| Thread Limit/class Of Fit | 2B |
| Thread Size | 9/16"-12 |
| Thread Standard | Coarse |
| Threads Per Inch | 12 |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 11 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Number Of Flutes | Thread Direction | Thread Limit | Overall Length | Thread Length | Thread Size | Tap Finish | 75% Thread Drill Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7569439 | 4 | Right Hand | 2B | 2.756" | 0.512" | #10-24 | Taft. (Tialn) | #25 | - | RFQ
|
 |
E22314-UNC10 | 4 | Right Hand | H3, H4 | 70 mm | 13 mm | #10-24 | Black Oxide | #25 | €86.54 | |
|
A23314-UNF10 | 4 | Right Hand | H2, H3 | 60.4 mm | 18 mm | #10-32 | Black Oxide | #21 | €103.84 | |
 |
7569327 | 4 | Right Hand | 2B | 3.15" | 0.591" | #12-28 | TiCN | 0.1811" | - | RFQ
|
 |
7569435 | 3 | Right Hand | - | 1.772" | 0.276" | #2-56 | Taft. (Tialn) | 0.0681" | €128.18 | |
|
7569436 | 3 | Right Hand | 2B | 2.205" | 0.354" | #4-40 | Taft. (Tialn) | 0.0866" | €99.82 | |
|
E22314-UNC6 | 3 | Right Hand | H3, H4 | 56 mm | 11 mm | #6-32 | Black Oxide | #36 | €78.91 |
