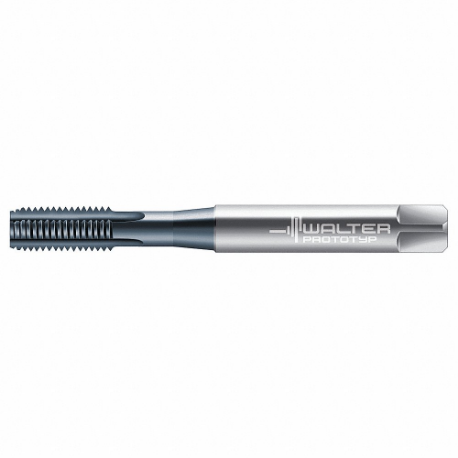

WALTER TOOLS 7569322 Straight Flute Tap, #8-32 Thread Size, 0.4720 Inch Thread Length, 2.4800 Inch Length, 2B | CU9AYX 60HC52

WALTER TOOLS 7569322 Straight Flute Tap, #8-32 Thread Size, 0.4720 Inch Thread Length, 2.4800 Inch Length, 2B

Item: CU9AYXModel: 7569322Cross Ref: 60HC52
7 In Stock

Ships within 2 days via

€137.60
10.00% off
€123.84 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Straight Flute Tap
55% Thread Drill Size 0.1417"
65% Thread Drill Size 0.1377"
75% Thread Drill Size 0.1338"
Coolant Fed Coolant Through
Extended Neck No
Finish Titanium Carbonitride Coated
Fits Class Class 2B
Material Grade - Machining TiCN
Measurement System Decimal Inch
Number Of Flutes 3
Overall Length 2 12/25"
Primary Material Application Aluminium, Brass, Bronze, Cast Iron, Copper, Graphite, Plastic, Synthetic Materials
Primary Material Application Iso Code K, N, O
Shank Dia. 0.168"
Shank Length 1.6535"
Shank Type Straight
Shank Type - Machining Straight
Spiral Direction Neutral
Square Size 0.131"
Standards Ansi, Din
System Of Measurement Imperial
Tap Chamfer Modified Bottoming
Tap Finish TiCN
Tap Length Standard ANSI, DIN
Tap Material High Speed Steel E
Tap Shank Standard ANSI, DIN
Tap Style Straight Flute
Tap Type Straight Flute
Thread Length 0.472"
Thread Limit 2B
Thread Limit/class Of Fit 2B
Thread Size #8-32
Thread Standard Coarse
Threads Per Inch 32

Shipping Info:

Ship weight (kg) 0.01
Ship height (cm)2.54
Ship length (cm)6.3
Ship width (cm)2.54
Country of OriginDE

Product Variants

ProductModelNumber Of FlutesThread DirectionThread LimitOverall LengthThread LengthThread SizeTap Finish75% Thread Drill SizePrice
WALTER TOOLS 7569439 Straight Flute Tap, #10-24 Thread Size, 0.5120 Inch Thread Length, 2.7560 Inch Length | CU9AYJ 60HC66 75694394Right Hand2B2.756"0.512"#10-24Taft. (Tialn)#25-
RFQ
WALTER TOOLS E22314-UNC10 Straight Flute Tap, #10-24 Thread Size, 13 mm Thread Length, 70 mm Length | CU9AYK 428A85 E22314-UNC104Right HandH3, H470 mm13 mm#10-24Black Oxide#25€86.54
WALTER TOOLS A23314-UNF10 Straight Flute Tap, #10-32 Thread Size, 18 mm Thread Length, 60.40 mm Length | CU9AYQ 427R73 A23314-UNF104Right HandH2, H360.4 mm18 mm#10-32Black Oxide#21€103.84
WALTER TOOLS 7569327 Straight Flute Tap, #12-28 Thread Size, 0.5910 Inch Thread Length, 3.1500 Inch Length | CU9AYR 60HC57 75693274Right Hand2B3.15"0.591"#12-28TiCN0.1811"-
RFQ
WALTER TOOLS 7569435 Straight Flute Tap, #2-56 Thread Size, 0.2760 Inch Thread Length, 1.7720 Inch Length | CU9AYT 60HC62 75694353Right Hand-1.772"0.276"#2-56Taft. (Tialn)0.0681"€128.18
WALTER TOOLS 7569436 Straight Flute Tap, #4-40 Thread Size, 0.3540 Inch Thread Length, 2.2050 Inch Length | CU9AYU 60HC63 75694363Right Hand2B2.205"0.354"#4-40Taft. (Tialn)0.0866"€99.82
WALTER TOOLS E22314-UNC6 Straight Flute Tap, #6-32 Thread Size, 11 mm Thread Length, 56 mm Length | CU9AYV 428A86 E22314-UNC63Right HandH3, H456 mm11 mm#6-32Black Oxide#36€78.91
