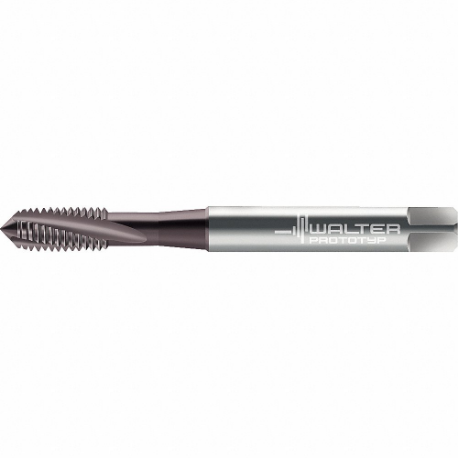

WALTER TOOLS 7569285 Spiral Flute Tap, 6.35 mm Thread Size, 10 mm Thread Length, 80 mm Length, Right Hand
Get it by Monday, Dec 22
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 5.41 mm |
| 65% Thread Drill Size | 5.21 mm |
| 75% Thread Drill Size | 5.1 mm |
| Coolant Fed | Coolant Through |
| Drill Bit Size | 6.35 mm |
| Extended Neck | Yes |
| Features | Problem Solver For Steels-No Bird-Nesting, Reduced Helix And Bright Rake Face In Chamfer Area |
| Finish | Bright |
| Fits Class | Class 2B |
| Grade | Grade WY80FC |
| Helix Angle | 15° |
| Material Grade - Machining | Grade WY80FC |
| Number Of Flutes | 3 |
| Overall Length | 80 mm |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | Aluminium, Brass, Bronze, Cast Iron, Copper, Steel |
| Secondary Material Application Iso Code | K, N |
| Shank Dia. | 6.47 mm |
| Shank Length | 50 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Square Size | 4.85 mm |
| Standards | Ansi, Din |
| System Of Measurement | Metric |
| Tap Chamfer | Modified Bottoming |
| Tap Finish | Bright |
| Tap Length Standard | ANSI, DIN |
| Tap Material | High Speed Steel |
| Tap Shank Standard | ANSI, DIN |
| Tap Style | Spiral Flute |
| Tap Thread Size | 6.35 mm |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 10 mm |
| Thread Limit | 2B |
| Thread Limit/class Of Fit | 2B, 2B |
| Thread Size | 6.35 mm |
| Thread Standard | Coarse |
| Threads Per Inch | 20 |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Thread Size | Thread Direction | Thread Limit | Number Of Flutes | Overall Length | Thread Length | 75% Thread Drill Size | Tap Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
23400-UNF0 | #0-80 | Right Hand | H1 | 3 | 40 mm | 6 mm | 1.2 mm | Bright | €141.41 | |
|
23410-UNF0 | #0-80 | Right Hand | H1, H2 | 3 | 40 mm | 6 mm | 1.2 mm | Bright | €131.93 | |
 |
AS2251005-UNC10 | #10-24 | Right Hand | H3, H4 | 3 | 70 mm | 11 mm | #25 | Tin/Vap | €91.44 | |
 |
EP2251302-UNC10 | #10-24 | Right Hand | H3, H4 | 3 | 70 mm | 8 mm | #25 | THL | €107.87 | |
 |
22410-UNC10 | #10-24 | Right Hand | H3, H4 | 3 | 70 mm | 8 mm | #25 | Bright | €78.08 | |
 |
AEP2251302-UNC10 | #10-24 | Right Hand | H3, H4 | 3 | 70 mm | 8 mm | #25 | THL | €107.42 | |
 |
TC115-UNC10-C0-WY80AA | #10-24 | Right Hand | H3, H4 | 3 | 70 mm | 8 mm | #25 | Tin | €40.56 |
