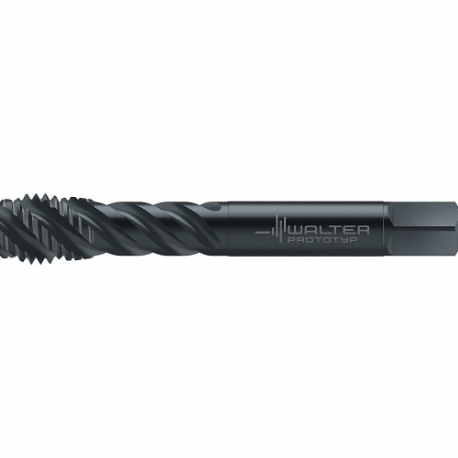

WALTER TOOLS 7569281 Spiral Flute Tap, 14.29 mm Thread Size, 15 mm Thread Length, 100 mm Length, 4 Flutes
Get it by Monday, Dec 22
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 13.25 mm |
| 65% Thread Drill Size | 13.09 mm |
| 75% Thread Drill Size | 12.9 mm |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 14.29 mm |
| Extended Neck | Yes |
| Features | WW60RB-Best Wear Resistance, WY80FC-Best Chip Control |
| Fits Class | Class 2B |
| Grade | Grade WY80FC |
| Helix Angle | 50° |
| Material Grade - Machining | Grade WY80FC |
| Number Of Flutes | 4 |
| Overall Length | 100 mm |
| Primary Material Application | Stainless Steel |
| Primary Material Application Iso Code | M |
| Secondary Material Application | Steel |
| Secondary Material Application Iso Code | P |
| Shank Dia. | 10.89 mm |
| Shank Length | 29.7 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Square Size | 8.18 mm |
| Standards | Ansi, Din |
| System Of Measurement | Metric |
| Tap Chamfer | Modified Bottoming |
| Tap Length Standard | ANSI, DIN |
| Tap Material | High Speed Steel |
| Tap Shank Standard | ANSI, DIN |
| Tap Style | Spiral Flute |
| Tap Thread Size | 14.28 mm |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 15 mm |
| Thread Limit | 2B |
| Thread Limit/class Of Fit | 2B, 2B |
| Thread Size | 14.29 mm |
| Thread Standard | Fine |
| Threads Per Inch | 18 |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Thread Size | Thread Direction | Thread Limit | Number Of Flutes | Overall Length | Thread Length | 75% Thread Drill Size | Tap Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
23400-UNF0 | #0-80 | Right Hand | H1 | 3 | 40 mm | 6 mm | 1.2 mm | Bright | €141.41 | |
|
23410-UNF0 | #0-80 | Right Hand | H1, H2 | 3 | 40 mm | 6 mm | 1.2 mm | Bright | €131.93 | |
 |
AS2251005-UNC10 | #10-24 | Right Hand | H3, H4 | 3 | 70 mm | 11 mm | #25 | Tin/Vap | €91.44 | |
 |
EP2251302-UNC10 | #10-24 | Right Hand | H3, H4 | 3 | 70 mm | 8 mm | #25 | THL | €107.87 | |
 |
22410-UNC10 | #10-24 | Right Hand | H3, H4 | 3 | 70 mm | 8 mm | #25 | Bright | €78.08 | |
 |
AEP2251302-UNC10 | #10-24 | Right Hand | H3, H4 | 3 | 70 mm | 8 mm | #25 | THL | €107.42 | |
 |
TC115-UNC10-C0-WY80AA | #10-24 | Right Hand | H3, H4 | 3 | 70 mm | 8 mm | #25 | Tin | €40.56 |
