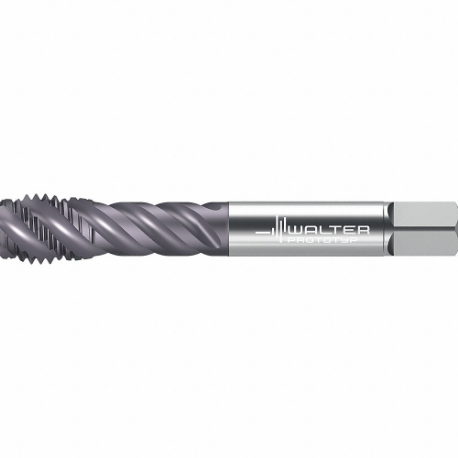

WALTER TOOLS 7569273 Spiral Flute Tap, 15.88 mm Thread Size, 20 mm Thread Length, 110 mm Length, 4 Flutes
Get it by Tuesday, Jun 30
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 14.2 mm |
| 65% Thread Drill Size | 13.9 mm |
| 75% Thread Drill Size | 13.6 mm |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 13.6 mm |
| Extended Neck | Yes |
| Features | WW60RB-Best Wear Resistance, WY80FC-Best Chip Control |
| Fits Class | Class 2B |
| Grade | Grade WW60RB |
| Helix Angle | 50° |
| Material Grade-machining | Grade WW60RB |
| No. Of Flutes | 4 |
| Overall Length | 110 mm |
| Primary Material Application | Stainless Steel |
| Primary Material Application Iso Code | M |
| Secondary Material Application | Steel |
| Secondary Material Application Iso Code | P |
| Shank Length | 44.3 mm |
| Shank Type | Straight |
| Shank Type-machining | Straight |
| Square Size | 9.14 mm |
| Standards | Ansi, Din |
| System Of Measurement | Metric |
| Tap Chamfer | Modified Bottoming |
| Tap Finish | TiAlN |
| Tap Length Standard | ANSI, DIN |
| Tap Material | High Speed Steel |
| Tap Shank Standard | ANSI, DIN |
| Tap Style | Spiral Flute |
| Tap Thread Size | 15.87 mm |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 20 mm |
| Thread Limit | 2B |
| Thread Limit/class Of Fit | 2B, 2B |
| Thread Size | 15.88 mm |
| Thread Standard | Coarse |
| Threads Per Inch | 11 |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 11 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Thread Size | Thread Direction | Thread Limit | Overall Length | 75% Thread Drill Size | Tap Finish | Tap Material | Thread Standard | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
23400-UNF0 | #0-80 | Right Hand | H1 | 40 mm | 1.2 mm | Bright | High Speed Steel | Fine | €98.99 | |
|
23410-UNF0 | #0-80 | Right Hand | H1, H2 | 40 mm | 1.2 mm | Bright | High Speed Steel | Fine | €92.35 | |
 |
AS2251005-UNC10 | #10-24 | Right Hand | H3, H4 | 70 mm | #25 | TiN, Vap | High Speed Steel | Coarse | €64.00 | |
 |
EP2251302-UNC10 | #10-24 | Right Hand | H3, H4 | 70 mm | #25 | THL | High Speed Steel | Coarse | €75.51 | |
 |
22410-UNC10 | #10-24 | Right Hand | H3, H4 | 70 mm | #25 | Bright | High Speed Steel | Coarse | €54.66 | |
 |
AEP2251302-UNC10 | #10-24 | Right Hand | H3, H4 | 70 mm | #25 | THL | High Speed Steel | Coarse | €75.20 | |
 |
TC115-UNC10-C0-WY80AA | #10-24 | Right Hand | H3, H4 | 70 mm | #25 | TiN | High Speed Steel | Coarse | €28.39 |
