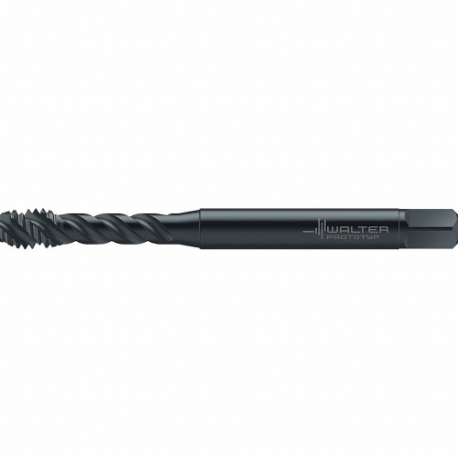

WALTER TOOLS 7569259 Spiral Flute Tap, 0.1900 Inch Thread Size, 0.3150 Inch Thread Length, 2.756 Inch Length
Item: CU9DDGModel: 7569259Cross Ref: 60HE61
7 In Stock
Ships within 2 days via
10.00% off
€94.00 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | #21 |
| 65% Thread Drill Size | #23 |
| 75% Thread Drill Size | #25 |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 0.19" |
| Extended Neck | No |
| Fits Class | Class 2BX |
| Grade | Grade WY80FC |
| Helix Angle | 50° |
| Material Grade - Machining | Grade WY80FC |
| Measurement System | Decimal Inch |
| Number Of Flutes | 3 |
| Overall Length | 2.756" |
| Primary Material Application | Stainless Steel |
| Primary Material Application Iso Code | M |
| Secondary Material Application | Steel |
| Secondary Material Application Iso Code | P |
| Shank Dia. | 0.194" |
| Shank Length | 1.7716" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Square Size | 0.152" |
| Standards | Ansi, Din |
| System Of Measurement | Imperial |
| Tap Chamfer | Modified Bottoming |
| Tap Material | High Speed Steel |
| Tap Shank Standard | ANSI, DIN |
| Tap Style | Spiral Flute |
| Tap Thread Size | #10-24 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 0.315" |
| Thread Limit | 2BX |
| Thread Limit / Class Of Fit | 2BX, 2BX |
| Thread Size | 0.19" |
| Thread Standard | Coarse |
| Threads Per Inch | 24 |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 7 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Thread Size | Thread Direction | Thread Limit | Number Of Flutes | Overall Length | Thread Length | 75% Thread Drill Size | Tap Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
23400-UNF0 | #0-80 | Right Hand | H1 | 3 | 40 mm | 6 mm | 1.2 mm | Bright | €141.41 | |
|
23410-UNF0 | #0-80 | Right Hand | H1, H2 | 3 | 40 mm | 6 mm | 1.2 mm | Bright | €131.93 | |
 |
AS2251005-UNC10 | #10-24 | Right Hand | H3, H4 | 3 | 70 mm | 11 mm | #25 | Tin/Vap | €91.44 | |
 |
EP2251302-UNC10 | #10-24 | Right Hand | H3, H4 | 3 | 70 mm | 8 mm | #25 | THL | €107.87 | |
 |
22410-UNC10 | #10-24 | Right Hand | H3, H4 | 3 | 70 mm | 8 mm | #25 | Bright | €78.08 | |
 |
AEP2251302-UNC10 | #10-24 | Right Hand | H3, H4 | 3 | 70 mm | 8 mm | #25 | THL | €107.42 | |
 |
TC115-UNC10-C0-WY80AA | #10-24 | Right Hand | H3, H4 | 3 | 70 mm | 8 mm | #25 | Tin | €40.56 |
