WALTER TOOLS 7051773-M3 Spiral Flute Tap, M3X0.5 Thread Size, 6 mm Thread Length, 56 mm Length, Vap | CU9FGH 427G97

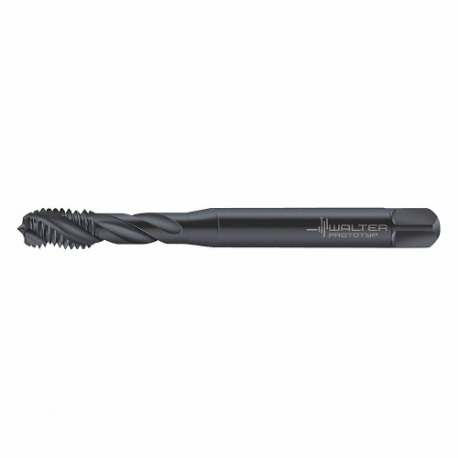

WALTER TOOLS 7051773-M3 5200688 Spiral Flute Tap, M3X0.5 Thread Size, 6 mm Thread Length, 56 mm Length, Vap

Item: CU9FGHModel: 7051773-M3Cross Ref: 427G97 / 5200688
7 In Stock

Ships within 2 days via

€57.71
10.00% off
€51.94 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Spiral Flute Tap
55% Thread Drill Size #37
65% Thread Drill Size #38
75% Thread Drill Size 2.5 mm
Coolant Fed Non Coolant Through
Drill Bit Size 2.5 mm
Extended Neck Yes
Features For Long Chipping Materials
Finish Vaporized
Helix Angle 40°
Material Grade - Machining Grade VAP
Number Of Flutes 3
Overall Length 56 mm
Primary Material Application Steel
Primary Material Application Iso Code P
Secondary Material Application Aluminum, Brass, Bronze, Cast Iron, Copper
Secondary Material Application Iso Code K, N
Shank Dia. 3.5 mm
Shank Length 38 mm
Shank Type Straight
Shank Type - Machining Straight
Spiral Direction Right Hand
Square Size 2.7 mm
Standards DIN 371
System Of Measurement Metric
Tap Chamfer Modified Bottoming, Semi Bottoming
Tap Finish Vap
Tap Material High Speed Steel
Tap Shank Standard DIN 371
Tap Style Spiral Flute
Tap Thread Size M3 x 0.5
Tap Type Spiral Flute
Thread Direction Right Hand
Thread Length 6 mm
Thread Limit D3
Thread Limit/class Of Fit D3
Thread Pitch 0.5 mm
Thread Size M3 x 0.5
Thread Standard Metric Coarse

Shipping Info:

Ship height (cm)2.54
Ship length (cm)5.6
Ship width (cm)2.54
Country of OriginIN

Product Variants

ProductModelThread SizeThread DirectionNumber Of FlutesThread LengthThread LimitOverall LengthTap Finish75% Thread Drill SizePrice
WALTER TOOLS A2340876-UNF0 Spiral Flute Tap, #0-80 Thread Size, 5.50 mm Thread Length, 41.30 mm Length, Ticn | CU9CWM 427T39 A2340876-UNF0#0-80Right Hand35.5 mmH141.3 mmTiCN1.2 mm€167.14
WALTER TOOLS A2340806-UNF0 Spiral Flute Tap, #0-80 Thread Size, 5.50 mm Thread Length, 41.30 mm Length, Ticn | CU9CWN 427T32 A2340806-UNF0#0-80Right Hand25.5 mmH141.3 mmTiCN1.2 mm€147.22
WALTER TOOLS 224101-UNJC10 Spiral Flute Tap, #10-24 Thread Size, 13.50 mm Thread Length, 70 mm Length | CU9CWT 427C96 224101-UNJC10#10-24Right Hand313.5 mm3B70 mmBright#25€189.67
WALTER TOOLS 224164-UNC10 Spiral Flute Tap, #10-24 Thread Size, 16 mm Thread Length, 70 mm Length | CU9CWU 427D31 224164-UNC10#10-24Right Hand316 mmH2, H370 mmBright#25€118.54
WALTER TOOLS 22416-UNC10 Spiral Flute Tap, #10-24 Thread Size, 16 mm Thread Length, 70 mm Length, Pipe | CU9CWV 427D37 22416-UNC10#10-24Right Hand316 mmH3, H470 mmBright#25€98.04
WALTER TOOLS 224102-UNC10 Spiral Flute Tap, #10-24 Thread Size, 16 mm Thread Length, 70 mm Length, Pipe | CU9CWW 427D04 224102-UNC10#10-24Right Hand316 mmH3, H470 mmBright#25€98.04
WALTER TOOLS P22509-UNC10 Spiral Flute Tap, #10-24 Thread Size, 8 mm Thread Length, 70 mm Length | CU9CWY 428Z45 P22509-UNC10#10-24Right Hand38 mmH2, H370 mm-#25€72.34
