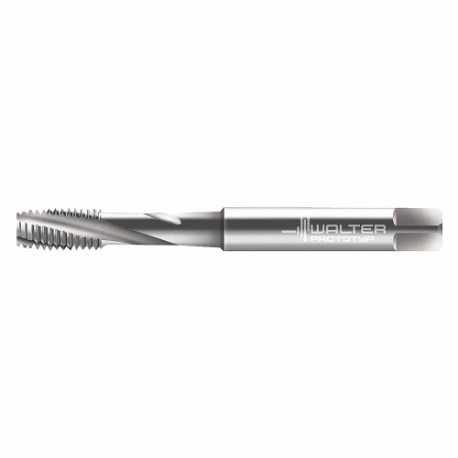

WALTER TOOLS 2041210-M5 5076522 Spiral Flute Tap, M5X0.8 Thread Size, 13 mm Thread Length, 70 mm Length, D3/D4
Item: CU9JPAModel: 2041210-M5Cross Ref: 426X37 / 5076522
7 In Stock
Ships within 2 days via
€73.12 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 4.4 mm |
| 65% Thread Drill Size | 4.3 mm |
| 75% Thread Drill Size | 4.2 mm |
| Clamping Width | 0.193" |
| Connection Dia. | 0.236" |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 4.2 mm |
| Driving Square Length | 0.315" |
| Extended Neck | Yes |
| Finish | Bright |
| Functional Length | 2.756" |
| Helix Angle | 15° |
| No. Of Flutes | 3 |
| No. Of Grooves | 3 |
| Overall Length | 70 mm |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Secondary Material Application | Aluminum, Brass, Bronze, Composite, Copper |
| Secondary Material Application Iso Code | N, O |
| Shank Dia. | 6 mm |
| Shank Length | 45 mm |
| Shank Type | Straight |
| Shank Type-machining | Straight |
| Spiral Direction | Right Hand |
| Square Size | 4.9 mm |
| System Of Measurement | Metric |
| Tap Chamfer | Modified Bottoming, Semi Bottoming |
| Tap Finish | Bright |
| Tap Material | High Speed Steel |
| Tap Shank Standard | DIN 371 |
| Tap Style | Spiral Flute |
| Tap Thread Size | M5 X 0.8 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 13 mm |
| Thread Limit | D3, D4 |
| Thread Limit/class Of Fit | D3, D4 |
| Thread Pitch | 0.8 mm |
| Thread Size | M5 x 0.8 |
| Thread Standard | Metric Coarse |
| Usable Length | 0.984" |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 7 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Thread Size | Thread Direction | Thread Limit | Thread Length | Overall Length | 75% Thread Drill Size | Tap Finish | Tap Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
23400-UNF0 | #0-80 | Right Hand | H1 | 6 mm | 40 mm | 1.2 mm | Bright | High Speed Steel | €109.99 | |
|
23410-UNF0 | #0-80 | Right Hand | H1, H2 | 6 mm | 40 mm | 1.2 mm | Bright | High Speed Steel | €106.75 | |
 |
AS2251005-UNC10 | #10-24 | Right Hand | H3, H4 | 11 mm | 70 mm | #25 | TiN, Vap | High Speed Steel | €70.70 | |
 |
EP2251302-UNC10 | #10-24 | Right Hand | H3, H4 | 8 mm | 70 mm | #25 | THL | High Speed Steel | €87.87 | |
 |
22410-UNC10 | #10-24 | Right Hand | H3, H4 | 8 mm | 70 mm | #25 | Bright | High Speed Steel | €68.67 | |
 |
AEP2251302-UNC10 | #10-24 | Right Hand | H3, H4 | 8 mm | 70 mm | #25 | THL | High Speed Steel | €87.87 | |
 |
TC115-UNC10-C0-WY80AA | #10-24 | Right Hand | H3, H4 | 8 mm | 70 mm | #25 | TiN | High Speed Steel | €32.73 |
