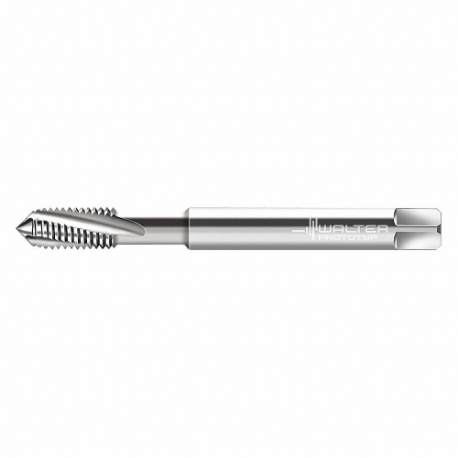

WALTER TOOLS 204069-EGM4 5076445 Sti Tap, M4X0.7 Thread Size, 16 mm Thread Length, Right Hand
Item: CU9ATPModel: 204069-EGM4Cross Ref: 426W52 / 5076445
7 In Stock
Ships within 2 days via
13.00% off
€77.85 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tap |
| 55% Thread Drill Size | 3.5 mm |
| 65% Thread Drill Size | 3.4 mm |
| 75% Thread Drill Size | 3.3 mm |
| Clamping Width | 0.193" |
| Connection Dia. | 0.236" |
| Coolant Fed | Non Coolant Through |
| Driving Square Length | 0.315" |
| Extended Neck | Yes |
| Functional Length | 2.756" |
| Material Grade-machining | Vanadium High Speed Steel |
| No. Of Flutes | 3 |
| No. Of Grooves | 3 |
| Overall Length | 70 mm |
| Primary Material Application | Nickel, Steel, Titanium |
| Primary Material Application Iso Code | P, S |
| Secondary Material Application | Aluminum, Brass, Bronze, Copper |
| Secondary Material Application Iso Code | N |
| Shank Dia. | 6 mm |
| Shank Length | 54 mm |
| Shank Type-machining | Straight |
| Spiral Direction | Right Hand |
| Square Size | 4.9 mm |
| System Of Measurement | Metric |
| Tap Chamfer | Modified Bottoming, Semi Bottoming |
| Tap Finish | Bright Uncoated |
| Tap Material | High Speed Steel |
| Tap Style | Spiral Flute |
| Tap Thread Size | M4 x 0.7 |
| Thread Direction | Right Hand |
| Thread Length | 16 mm |
| Thread Limit | D2, D3 |
| Thread Pitch | 0.028" |
| Thread Size | M4 x 0.7 |
| Thread Standard | EGM |
| Usable Length | 0.63" |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 7 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Thread Standard | Shank Dia. | Functional Length | Connection Dia. | Usable Length | Clamping Width | Driving Square Length | Thread Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
P223009-EGUNC10 | Coarse | 7 mm | 3.15" | 0.276" | 1.181" | 0.217" | 0.315" | 15 mm | €71.39 | |
 |
M233009-EGUNF10 | EGUNF | 6 mm | 3.15" | 0.236" | 1.181" | 0.193" | 0.315" | 15 mm | €88.33 | |
 |
234069-EGUNF10 | EGUNF | 6 mm | 3.15" | 0.236" | 0.906" | 0.193" | 0.315" | 15 mm | €137.37 | |
 |
A232079-STIUNF10 | EGUNF | 6.48 mm | 2 1/2" | 0.255" | 1.181" | 0.191" | 0.313" | 16 mm | €42.19 | |
|
A222079-STIUNC2 | Coarse | 3.58 mm | 1.878" | 0.141" | 0.394" | 0.11" | 0.19" | 10 mm | €35.60 | |
 |
224069-EGUNC4 | Coarse | 4.5 mm | 2 12/25" | 0.177" | 0.512" | 0.134" | 0.236" | 13 mm | €119.67 | |
|
A222079-STIUNC4 | Coarse | 3.58 mm | 2" | 0.141" | 0.591" | 0.11" | 0.19" | 15 mm | €36.83 |
