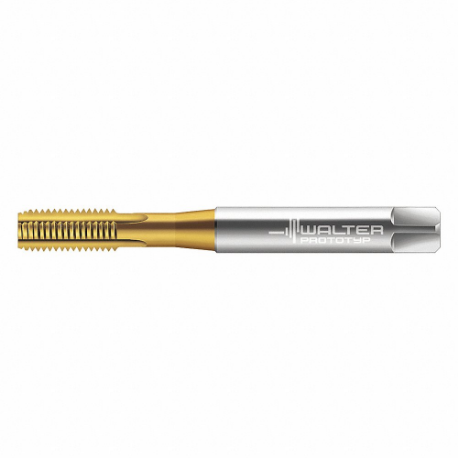

WALTER TOOLS 2031115-M4 Straight Flute Tap, M4X0.7 Thread Size, 12 mm Thread Length, 63 mm Length, Tin
Get it by Tuesday, Aug 18
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Straight Flute Tap |
| 55% Thread Drill Size | 3.5 mm |
| 65% Thread Drill Size | 3.4 mm |
| 75% Thread Drill Size | 3.3 mm |
| Clamping Width | 0.134" |
| Connection Dia. | 0.177" |
| Coolant Fed | Coolant Through |
| Driving Square Length | 0.236" |
| Extended Neck | Yes |
| Finish | Titanium Nitride Coated |
| Functional Length | 2 12/25" |
| No. Of Flutes | 3 |
| No. Of Grooves | 3 |
| Overall Length | 63 mm |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Secondary Material Application | Aluminum, Brass, Bronze, Composite, Copper |
| Secondary Material Application Iso Code | N, O |
| Shank Dia. | 4.5 mm |
| Shank Length | 42 mm |
| Shank Type | Straight |
| Shank Type-machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 3.4 mm |
| System Of Measurement | Metric |
| Tap Chamfer | Modified Bottoming, Semi Bottoming |
| Tap Finish | TiN |
| Tap Length Standard | DIN 371 |
| Tap Material | High Speed Steel |
| Tap Shank Standard | DIN 371 |
| Tap Style | Straight Flute (Hand) |
| Thread Direction | Right Hand |
| Thread Length | 12 mm |
| Thread Limit | D3, D4 |
| Thread Limit/class Of Fit | D3, D4 |
| Thread Pitch | 0.7 mm |
| Thread Size | M4 x 0.7 |
| Thread Standard | Metric Coarse |
| Usable Length | 0.827" |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 6.3 |
| Ship width (cm) | 2.54 |
| Country of Origin | IN |
Product Variants
| Product | Model | Thread Length | Thread Size | Thread Direction | Thread Limit | Overall Length | Tap Finish | 75% Thread Drill Size | Tap Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7569439 | 0.512" | #10-24 | Right Hand | 2B | 2.756" | Taft (TiAlN) | #25 | High Speed Steel E | - | RFQ
|
 |
E22314-UNC10 | 13 mm | #10-24 | Right Hand | H3, H4 | 70 mm | Black Oxide | #25 | High Speed Steel | €78.91 | |
|
A23314-UNF10 | 18 mm | #10-32 | Right Hand | H2, H3 | 60.4 mm | Black Oxide | #21 | High Speed Steel | €85.95 | |
 |
7569327 | 0.591" | #12-28 | Right Hand | 2B | 3.15" | TiCN | 0.1811" | High Speed Steel E | - | RFQ
|
 |
7569435 | 0.276" | #2-56 | Right Hand | - | 1.772" | Taft (TiAlN) | 0.0681" | High Speed Steel E | €128.18 | |
|
7569436 | 0.354" | #4-40 | Right Hand | 2B | 2.205" | Taft (TiAlN) | 0.0866" | High Speed Steel E | €99.82 | |
|
E22314-UNC6 | 11 mm | #6-32 | Right Hand | H3, H4 | 56 mm | Black Oxide | #36 | High Speed Steel | €71.98 |
