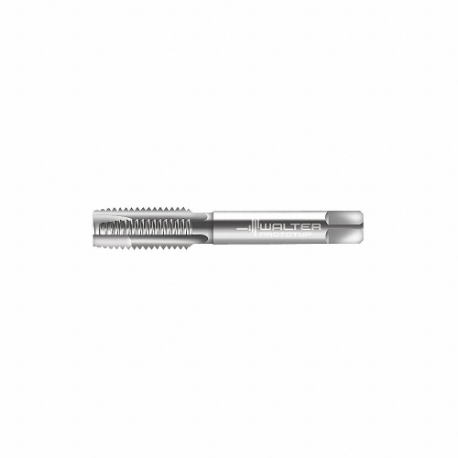

WALTER TOOLS 20160-M3 5075777 Spiral Point Tap, M3X0.5 Thread Size, 9 mm Thread Length, 40 mm Length
Item: CU9HLAModel: 20160-M3Cross Ref: 426R78 / 5075777
7 In Stock
Ships within 2 days via
€37.88 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Point Tap |
| 55% Thread Drill Size | #37 |
| 65% Thread Drill Size | #38 |
| 75% Thread Drill Size | 2.5 mm |
| Clamping Width | 0.106" |
| Connection Dia. | 0.138" |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 2.5 mm |
| Driving Square Length | 0.236" |
| Extended Neck | Yes |
| Finish | Bright |
| Fits Class | Class JIS 2 |
| Functional Length | 1.575" |
| No. Of Flutes | 3 |
| Overall Length | 40 mm |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Primary Material Application Iso Code | K, N, P |
| Secondary Material Application | Composite |
| Secondary Material Application Iso Code | O |
| Shank Length | 26.5 mm |
| Shank Type | Straight |
| Shank Type-machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 2.7 mm |
| System Of Measurement | Metric |
| Tap Chamfer | Plug |
| Tap Finish | Bright |
| Tap Material | High Speed Steel |
| Tap Thread Size | M3 x 0.5 |
| Thread Direction | Right Hand |
| Thread Length | 9 mm |
| Thread Limit | D3 |
| Thread Limit/class Of Fit | D3, JIS 2 |
| Thread Pitch | 0.5 mm |
| Thread Size | M3 x 0.5 |
| Thread Standard | Metric Coarse |
| Usable Length | 0.531" |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 4 |
| Ship width (cm) | 2.54 |
| Country of Origin | IN |
Product Variants
| Product | Model | Thread Size | Thread Direction | 75% Thread Drill Size | Overall Length | Thread Limit | Tap Finish | Thread Standard | Tap Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TC217.UNC10-G0-WY80FC | #10-24 | Right Hand | #25 | 2 13/16" | 2B | Black Oxide | Coarse | Cobalt | €60.78 | |
 |
EP2221302-UNC10 | #10-24 | Right Hand | #25 | 70 mm | H3, H4 | THL | Coarse | High Speed Steel | €79.66 | |
 |
AEP2221002-UNC10 | #10-24 | Right Hand | #25 | 70 mm | H3, H4 | THL | Coarse | High Speed Steel E | €74.32 | |
|
TC217.UNF10-G0-WY80RG | #10-32 | Right Hand | #21 | 2.812" | 2B | - | Fine | Cobalt | €73.75 | |
|
EP2321302-UNF10 | #10-32 | Right Hand | #21 | 70 mm | H2, H3 | THL | Fine | High Speed Steel | €87.46 | |
|
EP2221302-UNC2 | #2-56 | Right Hand | 1.73 mm | 45 mm | H2, H3 | THL | Coarse | High Speed Steel | €96.41 | |
 |
AS2221005-UNC4 | #4-40 | Right Hand | 2.2 mm | 56 mm | H2, H3 | TiN | Coarse | High Speed Steel | - | RFQ
|
