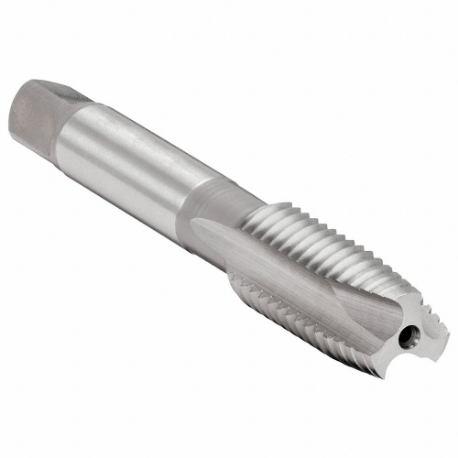

WALTER TOOLS 20160-M10 5075782 Spiral Point Tap, M10X1.5 Thread Size, 22 mm Thread Length, 70 mm Length
Item: CU9GVRModel: 20160-M10Cross Ref: 426R76 / 5075782
7 In Stock
Ships within 2 days via
10.00% off
€74.37 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Point Tap |
| 55% Thread Drill Size | 8.9 mm |
| 65% Thread Drill Size | 11/32" |
| 75% Thread Drill Size | 8.5 mm |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 8.5 mm |
| Extended Neck | Yes |
| Finish | Bright |
| Fits Class | Class 6H |
| Number Of Flutes | 3 |
| Overall Length | 70 mm |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Primary Material Application Iso Code | K, N, P |
| Secondary Material Application | Composite |
| Secondary Material Application Iso Code | O |
| Shank Dia. | 7 mm |
| Shank Length | 23 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 5.5 mm |
| System Of Measurement | Metric |
| Tap Chamfer | Plug |
| Tap Finish | Bright |
| Tap Material | High Speed Steel |
| Tap Thread Size | M10 x 1.5 |
| Thread Direction | Right Hand |
| Thread Length | 22 mm |
| Thread Limit | D4, D5 |
| Thread Limit/class Of Fit | D4, 6H, D5, 6H |
| Thread Pitch | 1.5 mm |
| Thread Size | M10 x 1.5 |
| Thread Standard | Metric Coarse |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 7.2 |
| Ship width (cm) | 2.54 |
| Country of Origin | IN |
Product Variants
| Product | Model | Thread Size | Number Of Flutes | Thread Direction | 75% Thread Drill Size | Thread Length | Overall Length | Thread Limit | Tap Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TC217.UNC10-G0-WY80FC | #10-24 | 3 | Right Hand | #25 | 1/2" | 2 13/16" | 2B | Black Oxide | €86.82 | |
 |
EP2221302-UNC10 | #10-24 | 3 | Right Hand | #25 | 13 mm | 70 mm | H3, H4 | THL | €113.79 | |
 |
AEP2221002-UNC10 | #10-24 | 3 | Right Hand | #25 | 13 mm | 70 mm | H3, H4 | THL | €106.17 | |
|
TC217.UNF10-G0-WY80RG | #10-32 | 3 | Right Hand | #21 | 1/2" | 2.812" | 2B | - | €105.35 | |
|
EP2321302-UNF10 | #10-32 | 3 | Right Hand | #21 | 13 mm | 70 mm | H2, H3 | THL | €124.94 | |
|
EP2221302-UNC2 | #2-56 | 3 | Right Hand | 1.73 mm | 7 mm | 45 mm | H2, H3 | THL | €137.72 | |
 |
AS2221005-UNC4 | #4-40 | 3 | Right Hand | 2.2 mm | 6.4 mm | 56 mm | H2, H3 | Tin | - | RFQ
|
