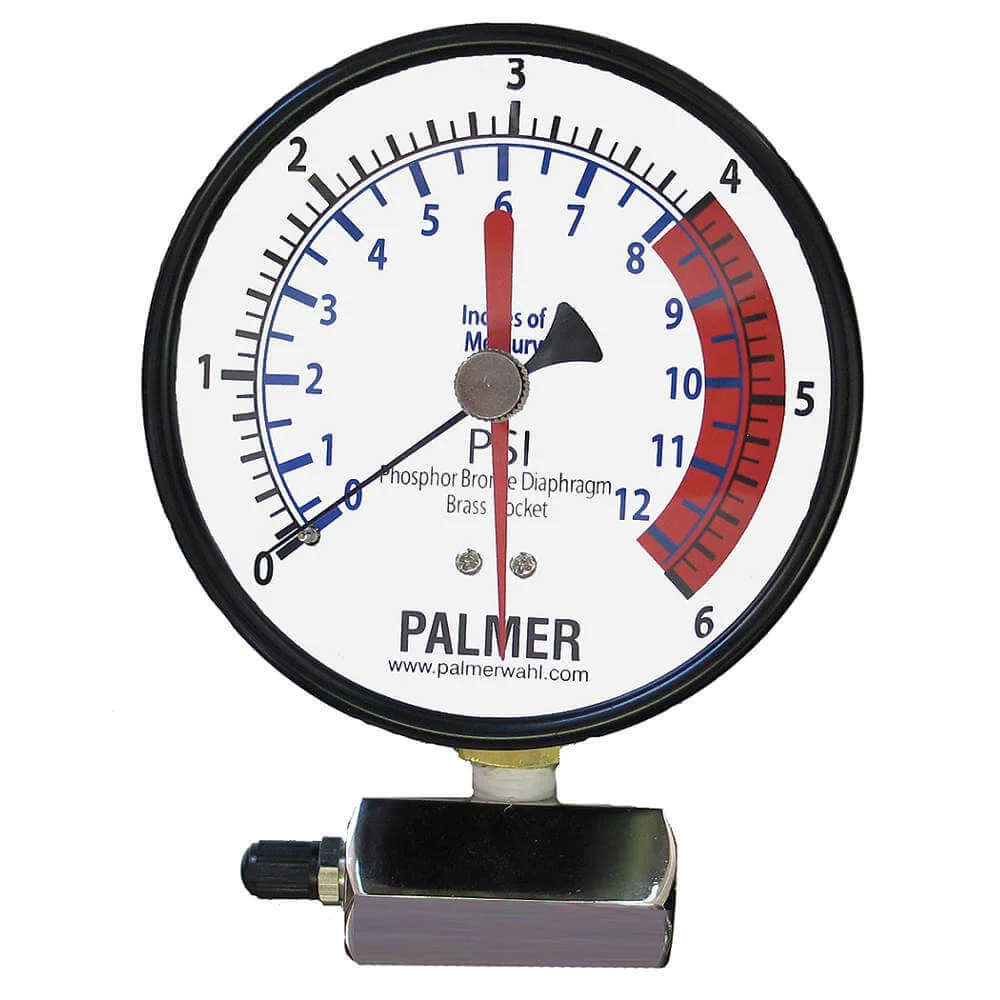

WAHL 40KBDLA6#HG Pressure Gauge, Gas Line Pressure Test Kit, Air/Gas/Water, 0 to 6 Psi, NPT, Bottom
Item: AE9ZZQModel: 40KBDLA6#HGCross Ref: 6PEZ6
7 In Stock
Ships within 2 days via
13.00% off
€194.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gas Test Guage |
| Accuracy | -1% to +1% |
| Accuracy Scale | Full Scale |
| Basic Gauge Case Material | Steel |
| Calibration Certificate Included | No |
| Case Color | Black |
| Case Dia. | 4" |
| Case Finish | Painted |
| Case Material | Steel |
| Color | Black |
| Connection Location | Stem Mount Lower |
| Connection Size | 3/4" |
| Dial Color | White |
| Display Units | Psi, Hg |
| Features | Dual Scale (Psi/In Hg) Dual Color, Equipped With Set Hand, Heavy Duty Construction Solid Brass Internal Body, Heavy Duty Gear Movement, Phosphor Bronze Diaphragn Internals, Plastic Lens |
| Freeze Resistant Movement | No |
| Gauge Case Color | Black |
| Gauge Connection Location | Bottom Right |
| Gauge Connection Size | 3/4" |
| Gauge Mounting Type | Stem-Mount |
| Gauge Nominal Dial Size | 4" |
| Gauge Panel Mountable | No |
| Gauge Primary Range Smallest Graduation | 0.1 |
| Gauge Primary Range Units | Psi |
| Gauge Special Options | Maximum Reading Pointer |
| Included | Schrader Air Valve |
| Lens Material | Plastic |
| Liquid Filled | No |
| Mounting Type | Stem-Mount |
| Nominal Dial Size | 4" |
| Operating Temp. | -4°F to +160°F |
| Pointer Characteristics | Set Hand, Set Pointer For Leak Off |
| Pressure | 0 psi to 6 psi |
| Pressure And Vacuum Gauge Type | Pressure Gauge |
| Pressure Gauge Type | Gas Line Pressure Test Kit |
| Pressure Type | Pressure |
| Primary Pressure Scale Color | Black |
| Primary Scale Minor Graduations | 0.1 |
| Primary Scale Units | PSI |
| Process Connection | NPT |
| Process Connection Location | Bottom |
| Product Datasheet | wahl-40kbdla15-hg.pdf |
| Resolution | 1/10Th psi Or 1/2 in. Hg |
| Scale Type | Dual |
| Secondary Pressure Scale Color | Blue |
| Secondary Scale Units | In Hg |
| Sensor Material | Bronze |
| Sensor Type | Bourdon Tube |
| Socket Material | Brass |
| Wheel Color | Black |
Shipping Info:
| Ship weight (kg) | 0.86 |
| Ship height (cm) | 8.13 |
| Ship length (cm) | 15.75 |
| Ship width (cm) | 13.46 |
| HS code | 9026208000 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Pressure | Mounting Type | Socket Material | Process Connection | Case Material | Case Color | Connection Location | Process Connection Location | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
40KBDLA15#HG | 0 psi to 15 psi | Stem Mount | Brass | NPT | Steel | Black | Stem Mount Lower | Bottom | €223.17 |
