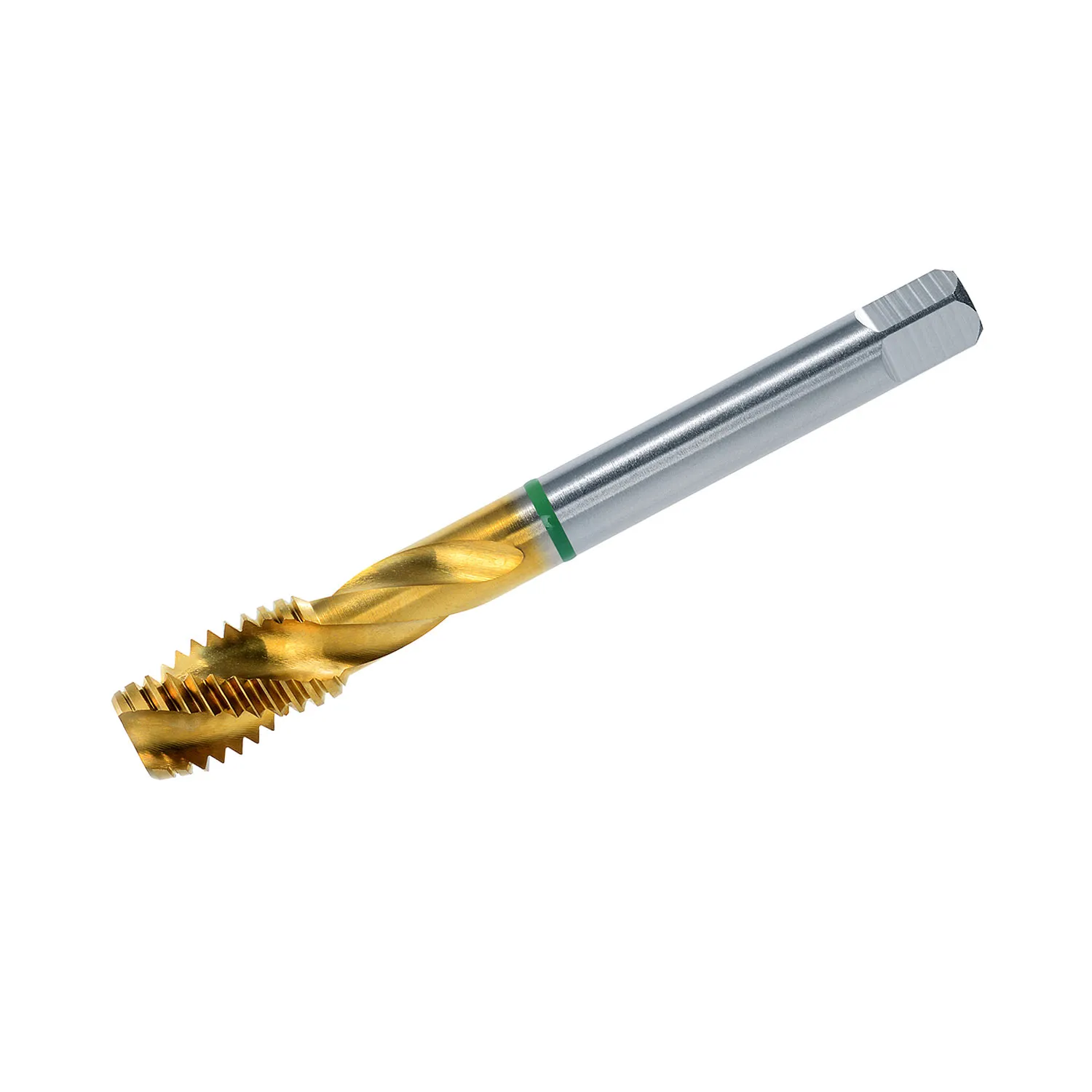

VOLKEL 91165 Machine Tap, Green Ring, JIS B-4430/C-R39 HSSE-PM-TiN, M 12 x 1.75 Size
Get it by Friday, Aug 14
€40.13 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Machine Tap |
| Application | For Blind Holes |
| Coating | TiN |
| Core Hole Dia. | 10.2 mm |
| Drive Connector | 6.5 mm |
| Flute Angle | 39° |
| Flute Type | Spiral Flute |
| Form | Form C |
| Material | HSSE-PM |
| Overall Length | 82 mm |
| Shank Dia. | 8.5 mm |
| Size | M12 x 1.75 |
| Thread Length | 18 mm |
| Thread Type | Metric ISO Thread |
| Tolerance | OH2 |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8.2 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Model | Thread Length | Overall Length | Shank Dia. | Size | Thread Type | Flute Type | Price | |
|---|---|---|---|---|---|---|---|---|
| 91155 | 6 mm | 46 mm | 4 mm | M3 x 0.5 | Metric ISO Thread | Spiral Flute | €15.20 | |
| 91157 | 7 mm | 52 mm | 5 mm | M4 x 0.7 | Metric ISO Thread | Spiral Flute | €15.20 | |
| 91158 | 8 mm | 60 mm | 5.5 mm | M5 x 0.8 | Metric ISO Thread | Spiral Flute | €16.36 | |
| 91159 | 10 mm | 62 mm | 6 mm | M6 x 1 | Metric ISO Thread | Spiral Flute | €18.32 | |
| 91161 | 14 mm | 70 mm | 6.2 mm | M8 x 1.25 | Metric ISO Thread | Spiral Flute | €22.59 | |
| 91163 | 16 mm | 75 mm | 7 mm | M10 x 1.5 | Metric ISO Thread | Spiral Flute | €28.44 | |
| 91166 | 20 mm | 88 mm | 10.5 mm | M14 x 2 | Metric ISO Thread | Spiral Flute | €62.34 |
