VNE STAINLESS EG93CCC-64.0 Ball Valve, 4 Inch Pipe, 800 PSI, -65-350 Deg F, Clamp
Get it by Friday, Aug 21
13.00% off
€7,046.92 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve |
| 3-a Certified | Meets 3A Sanitary Standards |
| Ansi Flange Class | Not Applicable |
| Ball Material | Stainless Steel |
| Ball Material Grade | Grade 316 |
| Ball Port Style | Full Port |
| Body Material | Stainless Steel |
| Body Style | Three Way |
| Compliance | Meets 3A Sanitary Standards |
| Connection Type | Clamp |
| Flow Pattern | L Flow |
| Handle | Locking Lever |
| Handle Color | Blue |
| Handle Height | 5.74" |
| Handle Length | 15.98" |
| Handle Material | Stainless Steel |
| Handle-locking | Locking |
| Included Mounting | Iso 5211 Actuator Mounting Pad |
| Inlet Connection Entry | Side |
| Inlet Connection Height | 5.69" |
| Inlet Connection Size | 4" |
| Inlet Connection Type | Clamp |
| Max. Pressure | 800 psi |
| Max. Pressure (cwp) | 400 psi |
| Max. Pressure For Combustible Gas | Not Rated |
| Max. Pressure-steam | 60 psi |
| Media Temp. | -65°F to +320°F |
| Nominal Valve Size | 4" |
| Outlet Connection Size-side 1 | 4" |
| Outlet Connection Size-side 2 | 4" |
| Outlet Connection Type-side 1 | Clamp |
| Outlet Connection Type-side 2 | Clamp |
| Overall Length | 11.42" |
| Pipe Schedule Compatibility | Not Applicable |
| Pipe Size | 4" |
| Seal Material | RPTFE |
| Seat Material | PTFE |
| Stem Material | 316 Stainless Steel |
| Stem Type | Blowout Resistant |
| Temp. | -65°F to +350°F |
| Vacuum Service Rating | Not Applicable |
| Valve Construction | Three-Piece |
| Valve Series | EG93CCC Series |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 26.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 31.75 |
| Ship width (cm) | 2.54 |
| Country of Origin | TW |
Product Variants
| Model | Ball Material | Stem Material | Max. Pressure | Nominal Valve Size | Media Temp. | Handle Material | Valve Construction | 3-a Certified | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| EG93CCC-62.5 | Stainless Steel | 316 Stainless Steel | 800 psi | 2 1/2" | -65°F to +320°F | Stainless Steel | Three-Piece | Meets 3A Sanitary Standards | €4,425.80 | |
| EG93CCC-62.5-T | Stainless Steel | 316 Stainless Steel | 800 psi | 2 1/2" | -65°F to +320°F | Stainless Steel | Three-Piece | Meets 3A Sanitary Standards | €4,226.97 | |
| EG93CCC-63.0 | Stainless Steel | 316 Stainless Steel | 800 psi | 3" | -65°F to +320°F | Stainless Steel | Three-Piece | Meets 3A Sanitary Standards | €6,228.68 | |

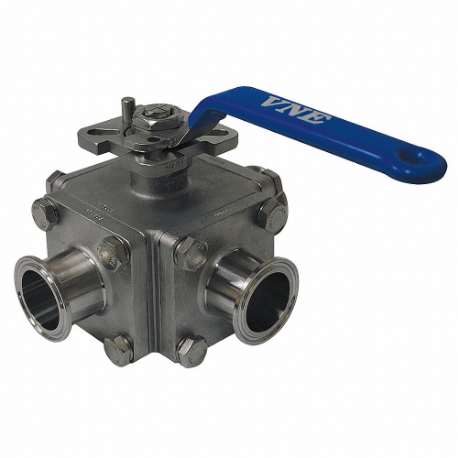

| EG93CCC-63.0-T | Stainless Steel | 316 Stainless Steel | 800 psi | 3" | -65°F to +320°F | Stainless Steel | Three-Piece | Meets 3A Sanitary Standards | €5,802.74 | |
| EG93CCC-64.0-T | Stainless Steel | 316 Stainless Steel | 800 psi | 4" | -65°F to +320°F | Stainless Steel | Three-Piece | Meets 3A Sanitary Standards | €8,099.90 | |

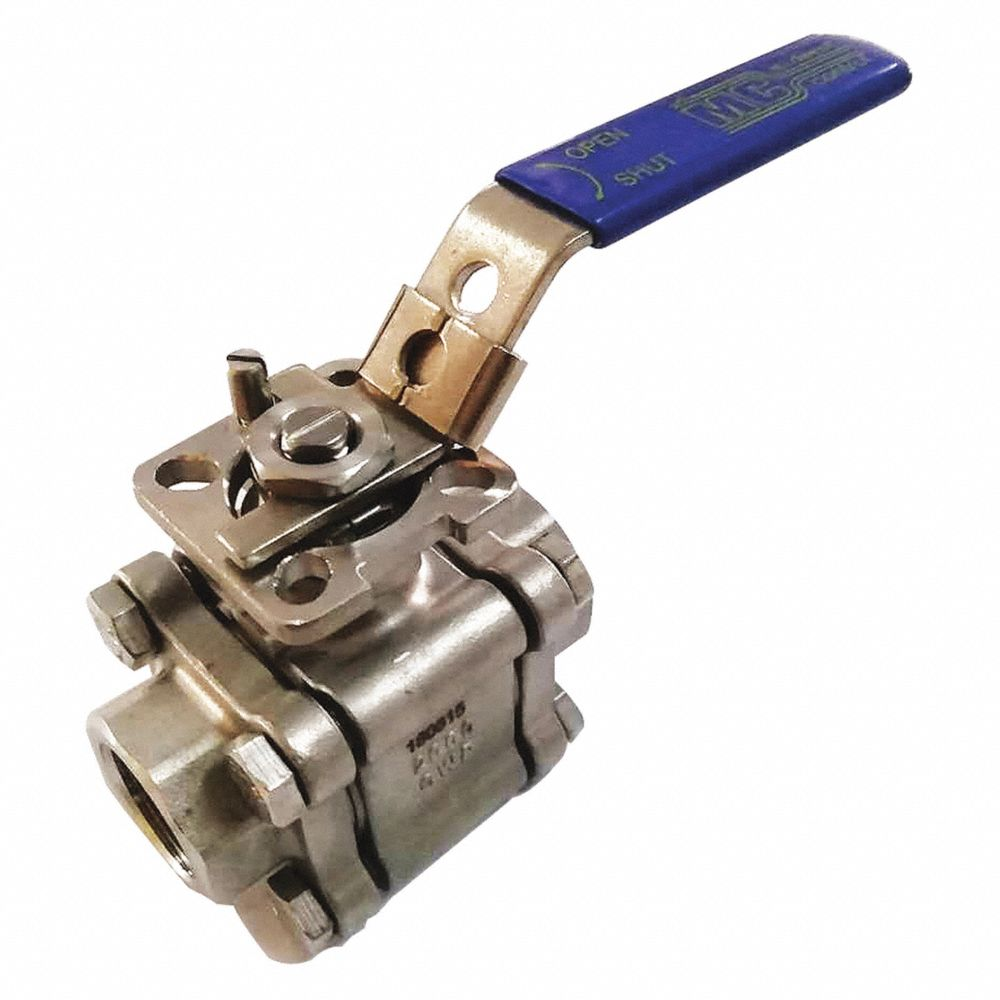

| GS3P2K50 | Stainless Steel | Stainless Steel | - | 1/2" | -20°F to +500°F | Stainless Steel | Three Piece | Not Rated | €232.10 | |
| GS3P2K75 | Stainless Steel | Stainless Steel | - | 3/4" | -20°F to +500°F | Stainless Steel | Three Piece | Not Rated | €278.94 |
