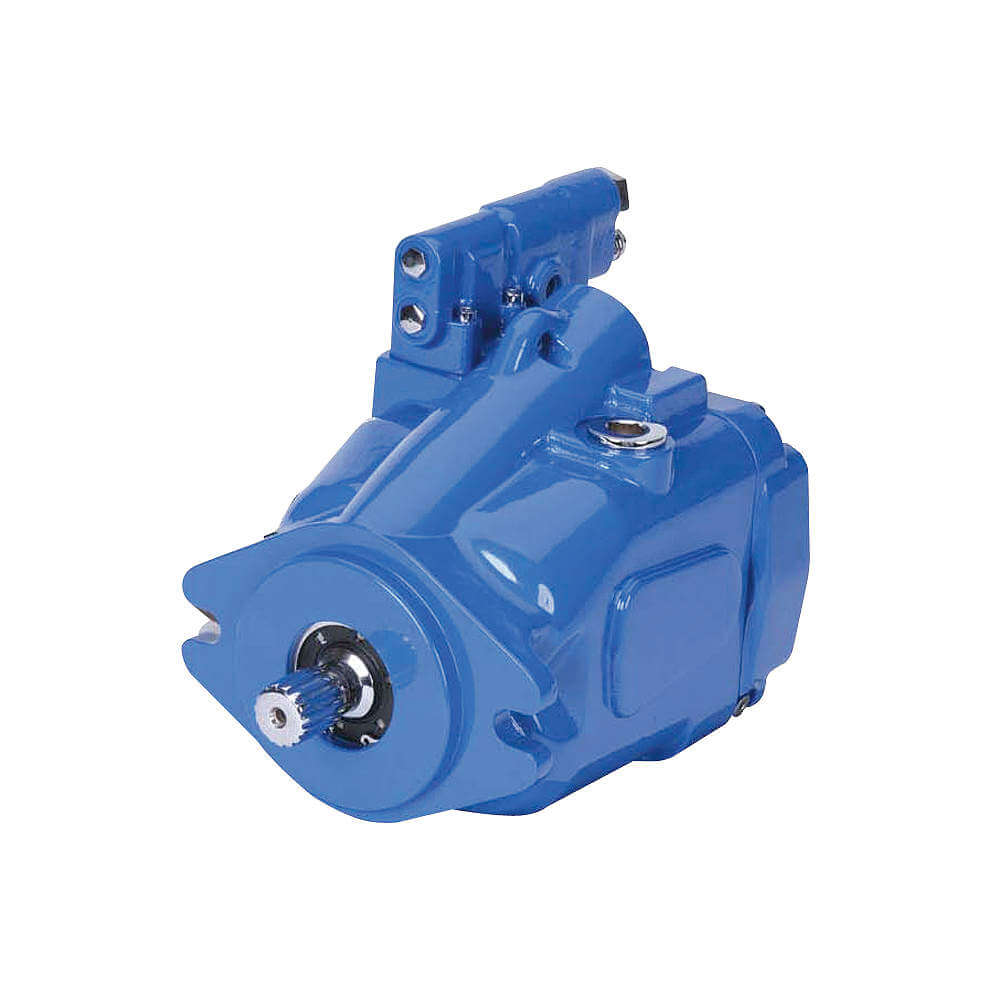

VICKERS 421AK01107B Piston Pump 3.8 Cubic In./rev 42 Gpm
Get it by Tuesday, Dec 23
10.00% off
€4,780.25 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Open Circuit Piston Pump |
| Case Pressure (maximum) | 5076 psi |
| Continuous Pressure (maximum) | 4641 psi |
| Discharge Connection Size | 1" |
| Discharge Connection Type | Sae Code 61 Flange |
| Displacement | 3.8 cu. in./rev. |
| Displacement Per Revolution | 3.8 cu. in./rev. |
| Flow Compensator Setting (maximum) | 220 lbf./sq. in. |
| Flow Rate | 42 GPM |
| Flow Rate (maximum) | 42 GPM |
| Horsepower (maximum) | 101.3 hp |
| Housing Material | Cast Iron |
| Inlet Port | 2" CD 61 Flange |
| Intermittent Pressure (maximum) | 4600 psi |
| Max. Continuous Pressure | 4000 psi |
| Max. Continuous Psi | 4000 |
| Max. Intermittent Pressure | 4600 |
| Max. Power | 101 3/10 hp |
| Max. Rpm | 3600 RPM |
| Media Intake Connection Size | 2" |
| Media Intake Connection Type | SAE Code 61 Flange |
| Min. Rpm | 600 |
| Min. Rpm | 600 RPM |
| Motor Speed (maximum) | 3600 RPM |
| Motor Speed (minimum) | 600 RPM |
| Mount | 2 Bolt B |
| Mounting Type | 2 Bolt B |
| Number Of Shaft Teeth | 15 |
| Outlet Port | 1" CD 61 Flange |
| Port Location | Rear |
| Pressure Compensator Setting (maximum) | 4100 lbf./sq. in. |
| Rotation | CW |
| Shaft Outer Diameter | 1 13/16" |
| Shaft Seal | Polyacrylate |
| Shaft Seal Material | Polyacrylate |
| Shaft Size | 1/2" |
| Shaft Size | 16/32 Spline |
| Shaft Type | Spline |
Shipping Info:
| Ship weight (kg) | 27.09 |
| Ship height (cm) | 40.39 |
| Ship length (cm) | 33.02 |
| Ship width (cm) | 30.99 |
| HS code | 8413309090 |
| Country of Origin | US |
Product Details:
- Controller Type (Pressure Flow Compensator With # 4 SAE O-Ring Load Sense Port)
- Flow Compensator Setting (180-220 lbf/sq. in.)
- Pressure Compensator Setting (4000-4100 lbf/sq. in.)
- Shaft Rotation (Right)
- Special Features: Quiet Pump And Compact Design
Product Variants
| Model | Max. Continuous Pressure | Flow Rate | Max. Power | Displacement | Mount | Price | |
|---|---|---|---|---|---|---|---|
| 421AK00454B | 4000 psi | 42 GPM | 101 3/10 hp | - | 2 Bolt B | €5,297.43 | |
| 421AK01108B | 4000 psi | 42 GPM | 101 3/10 hp | 3.8 cu. in./rev. | - | €5,311.39 | |
| 421AK01109B | 4000 psi | 42 GPM | 101 3/10 hp | 3.8 cu. in./rev. | 2 Bolt B | €5,328.93 |
