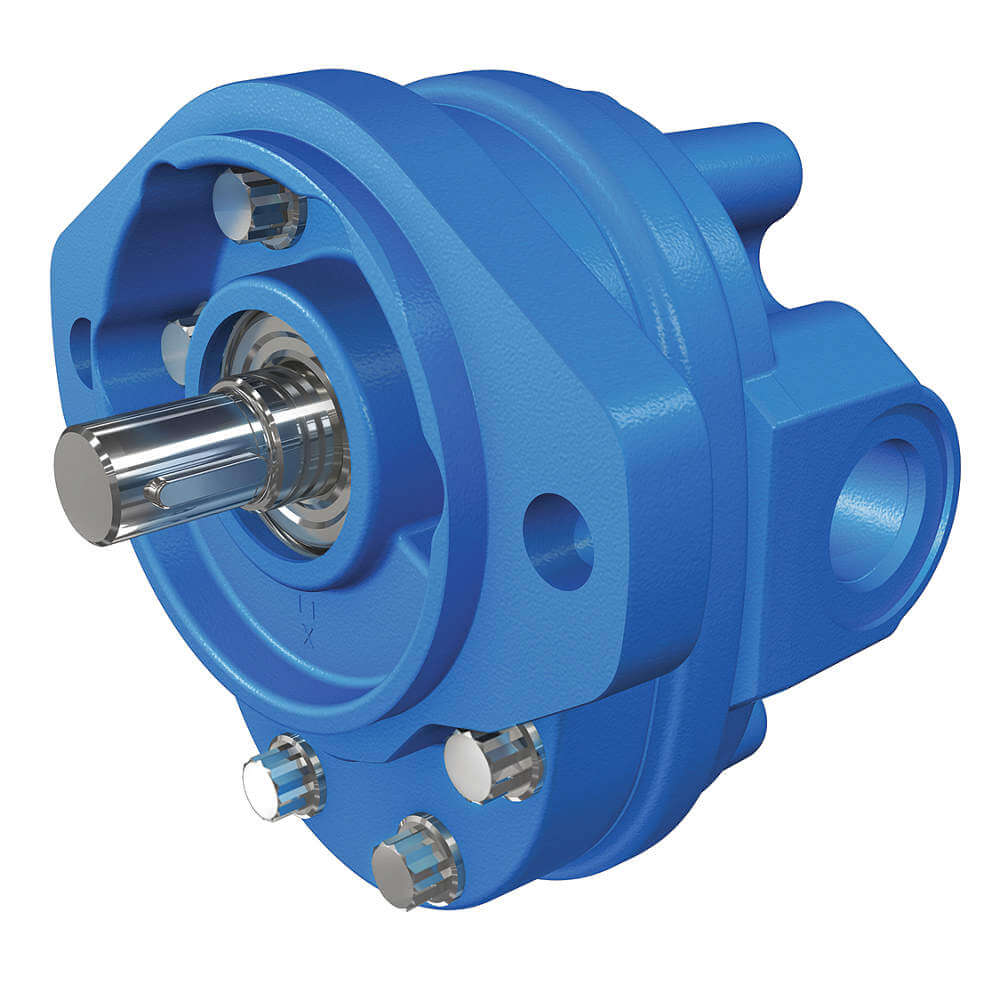

VICKERS 26002-RZG Gear Pump Displacement 0.5 Gpm 6.6 Right
Item: AB4ZPZModel: 26002-RZGCross Ref: 20V890
7 In Stock
Ships within 2 days via
€636.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Gear Pump |
| Cover Material | Aluminum |
| Design | A |
| Dimensions A | 2.93" |
| Discharge Connection Size | 7/8"-14 |
| Displacement | 0.5 cu. in./rev. |
| Displacement Per Revolution | 0.5 cu. in./rev. |
| End Cap Material | Aluminum |
| Gpm @ 3600 Rpm & 1000 Psi | 6.6 GPM |
| Gpm @ 3600 Rpm & 1000 Psi | 6.6 |
| Housing | Aluminum |
| Housing Material | Aluminum |
| Hydraulic Pressure Port Location | Side |
| Intake Connection | 17/16"-12 Sae |
| Length | 5" |
| Max. Continuous Pressure | 3000 psi |
| Max. Continuous Psi | 3000 |
| Max. Intermittent Pressure | 3500 psi |
| Max. Motor Speed | 3600 RPM |
| Max. Speed | 3600 RPM |
| Media Intake Connection Size | 17/16"-12 |
| Media Intake Connection Type | SAE |
| Min. Motor Speed | 750 RPM |
| Min. Rpm | 750 |
| Min. Speed | 750 RPM |
| Mounting Type | 2 Bolt Sae A |
| Overall Height | 5 1/5" |
| Overall Length | 5" |
| Overall Width | 5.1" |
| Ports (inlet) | 1-1/16-12 |
| Ports (outlet) | 7/8-14 |
| Rotation | CW |
| Shaft Extension (in.) | 5/8 x 1-1/4 |
| Shaft Outside Dia. | 5/8" |
| Shaft Type | Keyed |
| Width | 5 3/25" |
Shipping Info:
| Ship weight (kg) | 2.68 |
| Ship height (cm) | 23.62 |
| Ship length (cm) | 30.73 |
| Ship width (cm) | 17.02 |
| HS code | 8413600030 |
| Country of Origin | US |
Product Variants
| Model | Gpm @ 3600 Rpm & 1000 Psi | Rotation | Shaft Type | Dimensions A | Media Intake Connection Size | Intake Connection | Displacement | Displacement Per Revolution | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 26014-LAF | 4.5 GPM | CCW | Spline | 2.86" | 17/16"-12 | 17/16"-12 Sae | 0.39 cu. in./rev. | 0.311 cu. in./rev. | €630.39 | |
| 26001-LZJ | 5.3 GPM | CCW | Spline | 2.86" | 17/16"-12 | 17/16"-12 Sae | 0.4 cu. in./rev. | 0.403 cu. in./rev. | €636.78 | |
| 26001-RZJ | 5.3 GPM | CW | Spline | 2.86" | 17/16"-12 | 17/16"-12 Sae | 0.4 cu. in./rev. | 0.403 cu. in./rev. | €630.65 | |
| 26002-LZJ | 6.6 GPM | CCW | Spline | 2.93" | 17/16"-12 | 17/16"-12 Sae | - | 0.5 cu. in./rev. | €683.78 | |
| 26002-RZJ | 6.6 GPM | CW | Spline | 2.93" | 17/16"-12 | 17/16"-12 Sae | - | 0.5 cu. in./rev. | €636.78 | |
| 26003-LZJ | 7.8 GPM | CCW | Spline | 2.99" | 17/16"-12 | 17/16"-12 Sae | 0.58 cu. in./rev. | 0.578 cu. in./rev. | €647.99 | |
| 26003-RZJ | 7.8 GPM | - | Spline | 2.99" | - | - | 0.58 cu. in./rev. | - | €674.53 |
