VICKERS 02-146402 Hydraulic Valve 4 Way 12vdc
Item: AB6KCNModel: 02-146402Cross Ref: 21U728
7 In Stock
Ships within 2 days via
10.00% off
€881.21 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Directional Valve |
| Actuation Mechanism | Electrical |
| Body Material | Cast Iron |
| Center Position | Closed Center |
| Coil Voltage | 12V DC |
| Electrical Connection Type | Flying Lead Wired Terminal Block And 1/2 In NPT Wired Housing |
| Flow Rate | 16 GPM |
| Gpm @ 3000 Psi | 16 GPM |
| Height | 3 3/5" |
| Holding Amps | 1.5 |
| Holding Amps | 1.5A |
| Includes Seals | Yes |
| Max. Pressure | 5075 psi |
| Max. Tank Pressure | 3045 psi |
| Max. Tank Pressure (psi) | 3045 |
| Maximum Flow Rate3 | 16 GPM |
| Maximum Tank Pressure | 3000 psi |
| Mounting | Subplate-Mounted |
| Nfpa Size | D03 |
| Number Of Positions | 3 |
| Number Of Ways | 4 |
| Overall Height | 3 3/5" |
| Overall Length | 8.6" |
| Port Connections | Tank |
| Return Mechanism | Spring |
| Seal Material | Viton |
| Seal Type | Fluorocarbon |
| Series | DG4V Series |
| Spool Type | Closed, Spring Centered |
| Type | Solenoid Operated |
| Voltage | 12V DC |
| Width | 2" |
Shipping Info:
| Ship weight (kg) | 1.8 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 6.35 |
| HS code | 8481200010 |
| Country of Origin | US |
Product Variants
| Product | Model | Flow Rate | Max. Pressure | Center Position | Number Of Positions | Gpm @ 3000 Psi | Coil Voltage | Max. Tank Pressure | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

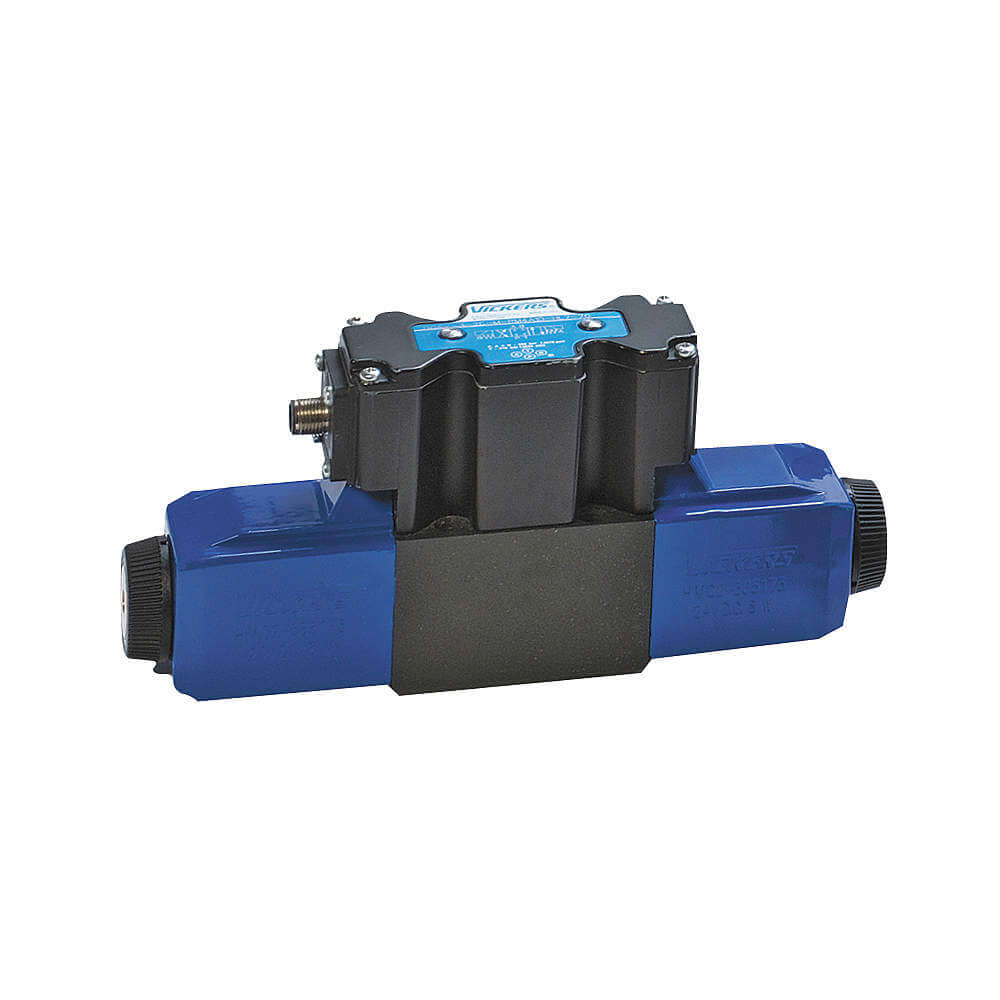

529760 | 21 GPM | 5075 psi | Closed Center | 3 | 21 GPM | 24V DC | 3045 psi | 3 3/5" | €900.19 | |
 |

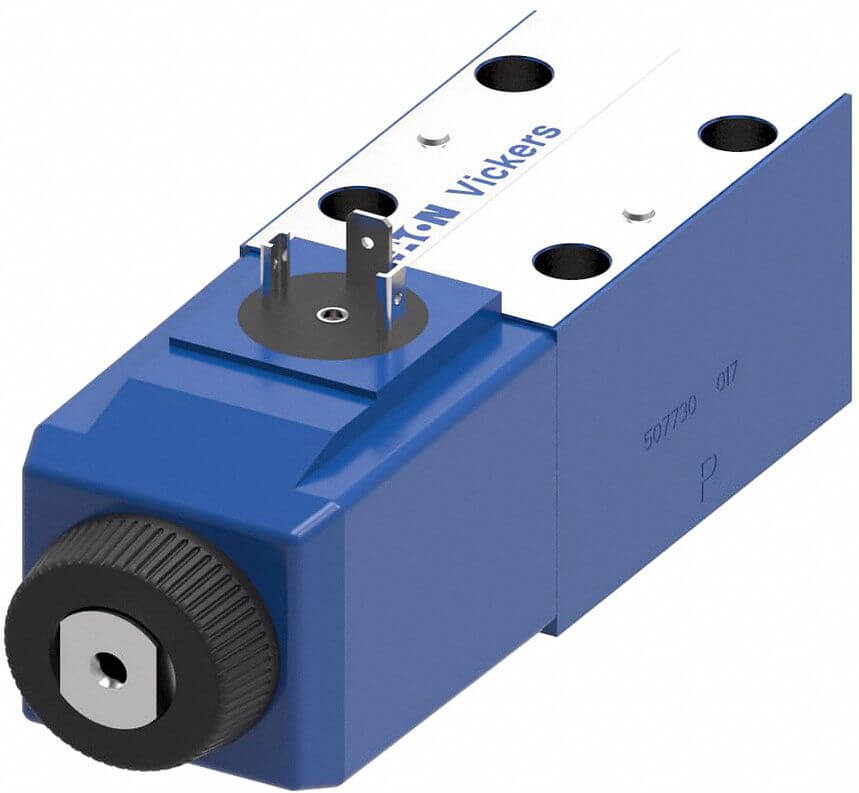

529762 | 21 GPM | 5075 psi | Closed Center | 2 | 21 GPM | 24V DC | 3045 psi | 3 3/5" | €714.93 | |
|
565465 | 16 GPM | 5075 psi | Closed Center | 3 | 16 GPM | 24V DC | 3045 psi | 3 3/5" | €900.20 | |
|
859165 | 16 GPM | 5075 psi | Closed Center | 3 | 16 GPM | 12V DC | 3045 psi | 3 3/5" | €900.19 | |
|
859176 | 21 GPM | 5075 psi | Closed Center | 3 | 21 GPM | 110-120V AC | 3045 psi | 3 3/5" | €900.19 | |
 |
859189 | 21 GPM | 5075 psi | Closed Center | 2 | 21 GPM | 12V DC | 3045 psi | 3 3/5" | €714.93 | |
|
02-108045 | 16 GPM | 5075 psi | Closed Center | 3 | 16 GPM | 24V DC | 3045 psi | 3 3/5" | €932.47 |
