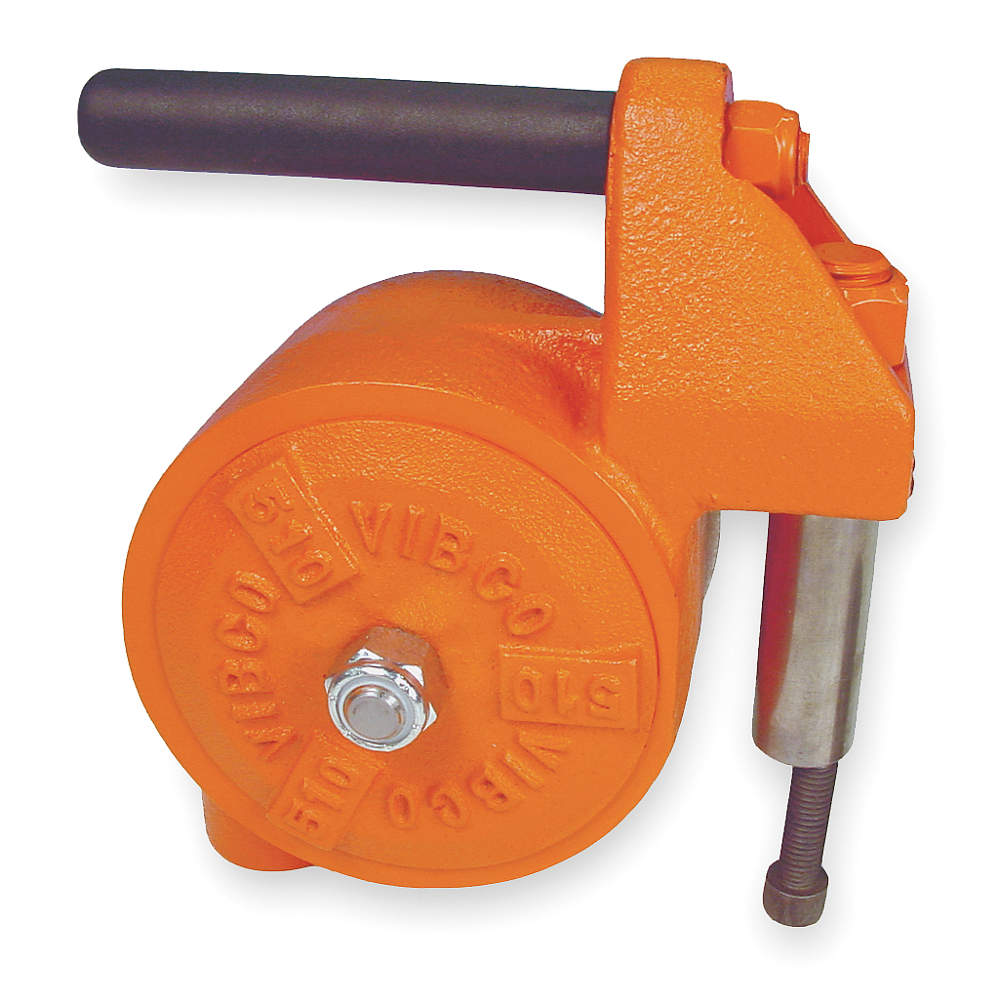

VIBCO VSP-510 Pneumatic Vibrator 1000 Lb 4000 Vpm 80psi
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€692.89 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pneumatic Vibrator |
| Air Flow Rate | 18 CFM @ 60 psi, 21 CFM @ 80 psi |
| Application | Automotive, Bio-Tech, Chemical, Plastics, Plating And Food Industries |
| Bin Weight Capacity | 10,000 lb. |
| Cfm @ 60 Psi | 18 |
| Cfm @ 80 Psi | 21 |
| Db @ 80 Psi | 77 |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Force @ Psi | 1000 lbf. @ 80 psi |
| Force Rating | 1000 lbs. |
| Force Rating | 1000 lb. |
| Housing Material | Cast Iron |
| Inlet Connection Size | 1/2" |
| Inlet Connection Type | NPT |
| Inlet Port | 1/2" NPT |
| Inlet Port Size | 1/2" |
| Max. Pressure | 80 psi |
| Max. Temp. | 350°F |
| Maximum Force | 1000 lbf. |
| Maximum Inlet Pressure | 80 psi |
| Maximum Vibration Speed | 4500 VPM |
| Min. Bin Weight Capacity | Not Applicable |
| Mount Plate Included | No |
| Mount Plate Required | Yes |
| Mounting Plate | Sold Separately |
| Muffler | Included |
| Overall Dim. | 4.84" x 7.4" x 8.03" |
| Overall Height | 8" |
| Overall Length | 7 3/8" |
| Overall Width | 4.812" |
| Pneumatic Vibrator Type | Turbine |
| Series | VSP Series |
| Sound Level | 77 dBA |
| Speed @ 60 Psi | 4000 VPM |
| Speed @ 80 Psi | 4500 VPM |
| Standards | OSHA |
| Vibration Speeds @ Psi | 4000 VPM @ 60 psi, 4500 VPM @ 80 psi |
| Vibrator Type | Turbine |
| Weight | 18 lbs. |
Shipping Info:
| Ship weight (kg) | 8.21 |
| Ship height (cm) | 20.32 |
| Ship length (cm) | 18.73 |
| Ship width (cm) | 12.22 |
| HS code | 8479899895 |
| Country of Origin | US |
