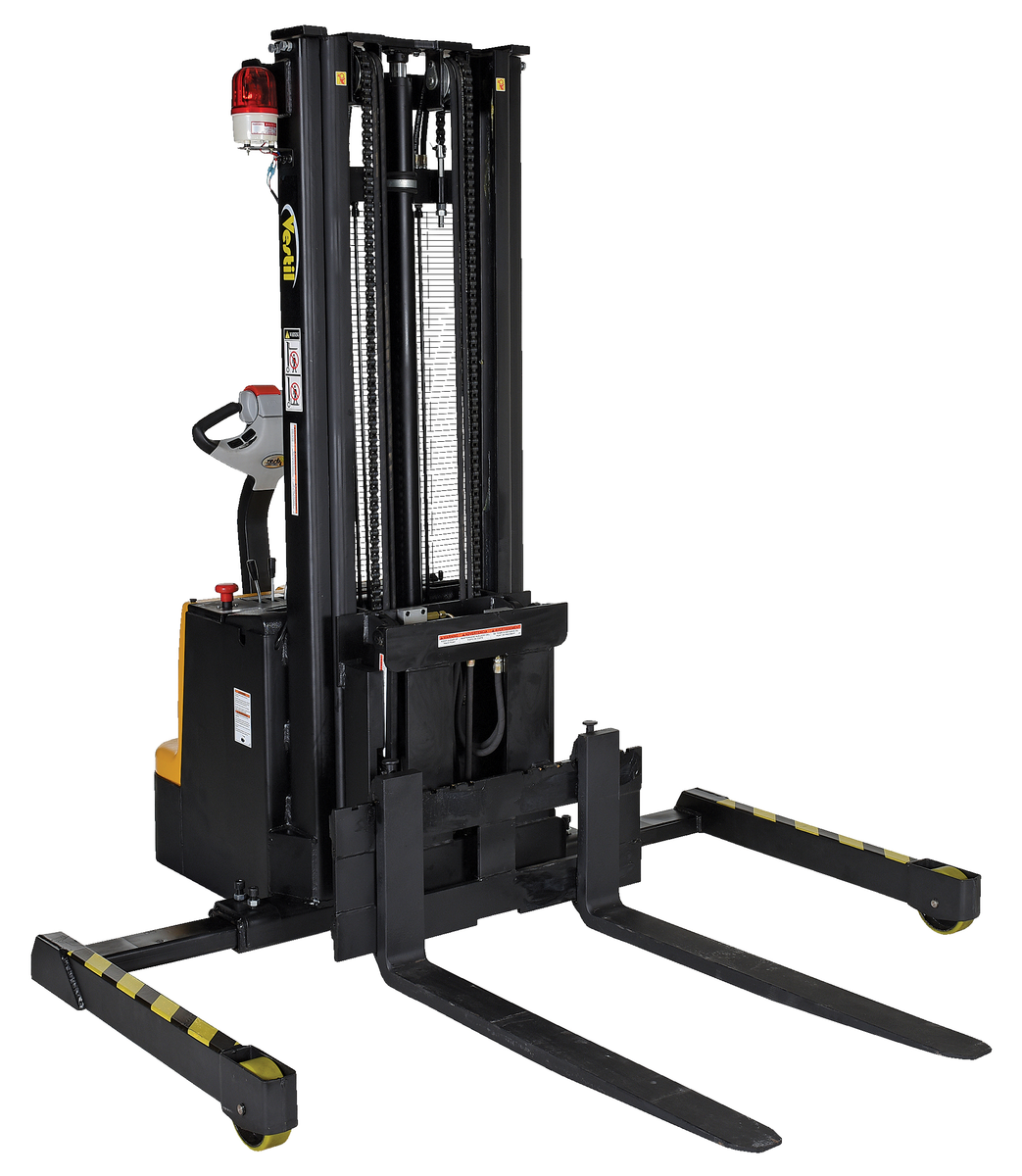

VESTIL S-118-AA-FR Steel Adjustable Extendable Fork Stacker, 118 Inch Raised Height, 1500 lb Capacity, Black/Yellow
Get it by Tuesday, Apr 14
€17,664.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Stacker |
| Adjustable Forks | Yes |
| Adjustable Legs | Yes |
| Assembled Depth | 95" |
| Assembled Height | 79 1/4" |
| Assembled Width | 57 7/8" |
| Assembly | Assembled |
| Batteries Included | Yes |
| Battery Charger Included | Yes |
| Battery Freight Class | Class 70 |
| Battery Size | 11 |
| Battery Subclass | Class 1 |
| Battery Voltage | 12V |
| Capacity | 1500 lbs. |
| Certification Indicator | No |
| Color | Black, Yellow |
| Color Family | Yellow, Black |
| Contains Hazardous Material Or Is Aerosol | Yes |
| Features | Emergency Reverse Belly Switch Instantly Reverses Direction |
| Fork Length | 36 1/4" |
| Fork Reach | 25" |
| Fork Width | 4" |
| Frame Material | Steel |
| Front Caster Dia. | 6" |
| Front Caster Material | Poly On Steel |
| Front Wheel Dia. | 6" |
| Front Wheel Material | Poly On Steel |
| Height | 79" |
| Hp | 2 hp |
| Ibi Lithium Battery Configuration | Contained In |
| Includes | Battery Charger |
| Leg Width | 4" |
| Length | 83 1/2" |
| Load Center | 15 3/4" |
| Lowered Height | 2 1/2" |
| Material | Steel |
| Max. Lift Height | 118" |
| Max. Lifting Height | 118" |
| Max. Travel Distance | 115 1/2" |
| Max. Width Between Forks | 26 3/4" |
| Max. Width Between Legs | 50" |
| Maximum Width Between Forks | 26 3/4" |
| Measuring Units | EACH |
| Min. Lift Height | 2 1/2" |
| Min. Lifting Height | 2 1/2" |
| Min. Width Between Forks | 8.3" |
| Min. Width Between Legs | 40 1/8" , 40.13" |
| No. Of Casters/wheels | 5 |
| Number Of Batteries | 2 |
| Number Of Casters | 5 |
| Origin Criterion | No |
| Phase | Not Applicable , Not Rated |
| Power Source | Battery Operated |
| Raised Height | 118" |
| Rear Caster Dia. | 4" |
| Rear Caster Material | Poly On Steel |
| Rear Wheel Dia. | 4" |
| Rear Wheel Material | Poly On Steel |
| Uniform Capacity Forks Extended At 2" To 62" Raised Height | 800 lbs. |
| Uniform Capacity Forks Extended At 62" To 118" Raised Height | 600 lbs. |
| Uniform Capacity Forks Retracted At 2" To 62" Raised Height | 1500 lbs. |
| Uniform Capacity Forks Retracted At 62" To 118" Raised Height | 1000 lbs. |
| Voltage | 24V |
| Weight Capacity | 1500 lbs. |
| Width | 48" |
Shipping Info:
| Ship weight (kg) | 744.75 |
| Ship height (cm) | 223.52 |
| Ship length (cm) | 190.5 |
| Ship width (cm) | 162.56 |
| HS code | 8428900290 |
| Country of Origin | CN |
