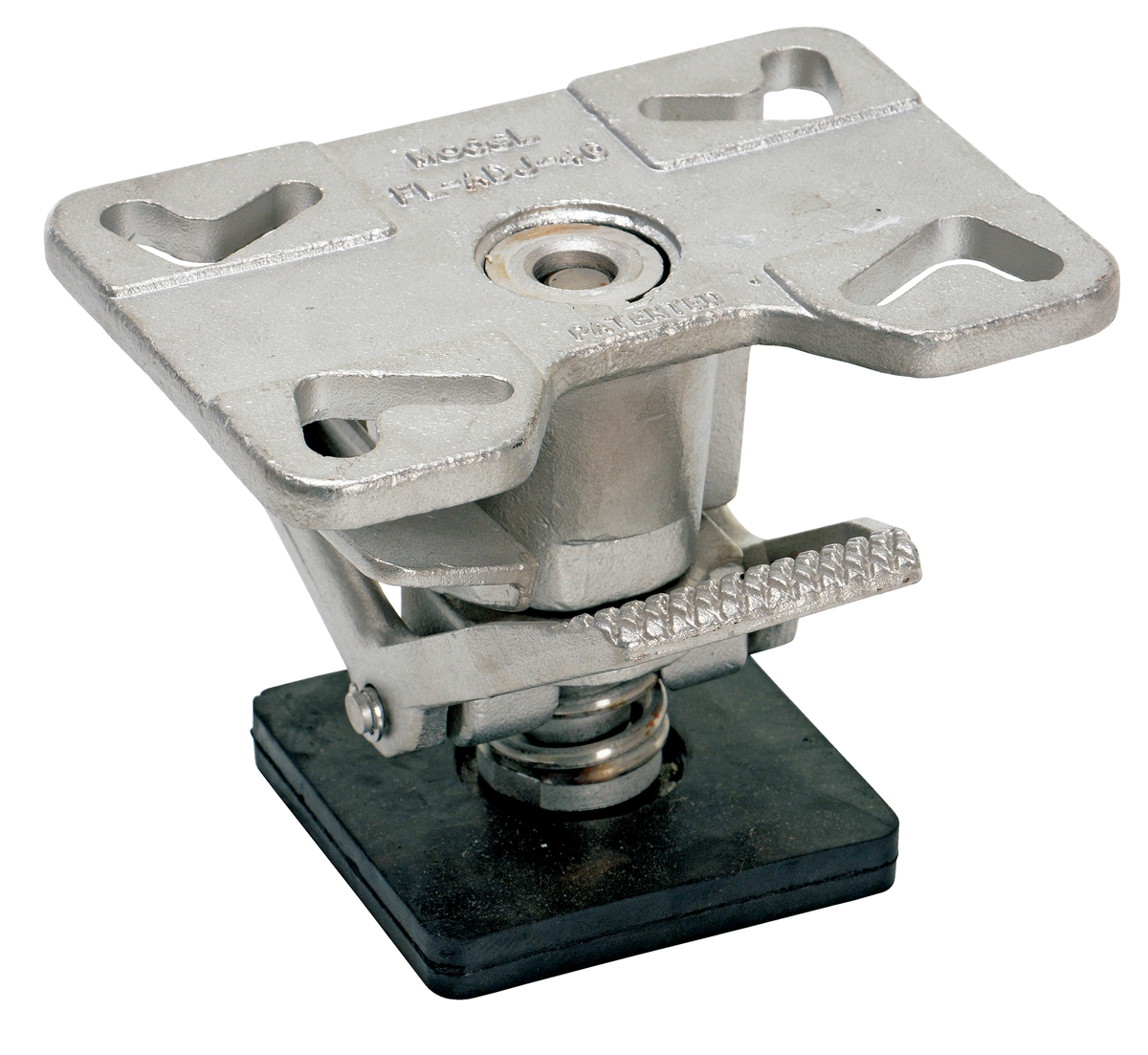

VESTIL FL-ADJ-46-SS Stainless Steel Adjustable Floor Lock, 6-1/4 to 8 Inch Height, Silver
Get it by Wednesday, Dec 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€218.70 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Floor Lock |
| Assembly | Assembled |
| Attachment Type | Bolt On |
| Bolt Hole Dia. (in.) | 0.375" |
| Bolt Hole Spacing | Slotted for 3 3/8" x 5 1/4", 3" x 3" and 2 1/8" x 4 3/4" |
| Color | Silver |
| Color Family | Silver |
| Extended Height | 8" |
| Floor Lock Retracted Height | 5" |
| For Wheel Dia. | 4", 5", 6" |
| Grade | Grade 304 |
| Height | 8" |
| Includes | Bottom Pad With Suction Cups For Added Traction |
| Inside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Length | 6 1/2" |
| Material | Stainless Steel |
| Mounting Height | 5 3/4 to 8 In. |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4 1/2" x 6 1/2" |
| Mounting Plate Thickness | 3/8" |
| Mounting Type | Plate |
| Outside Bolt Hole Spacing | 2 7/8" x 3" |
| Overall Size | 4 1/2 x 6 1/2" |
| Retracted Height | 5.5" |
| Retracted Height | 5 1/2" |
| Top Plate Length | 6 1/2" |
| Top Plate Width | 4 1/2" |
| Tube Inside Dia. | 15/16" |
| Type | Adjustable, Stainless Steel , Foot Pedal |
| Use With Caster Size | 4" to 6" |
| Width | 5 5/8" |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 17.78 |
| HS code | 8425490000 |
| Country of Origin | CN |
Standards and Approvals:
- OSHA
Frequently Asked Questions:
Q. What is the product made of?
A. The floor lock is made of 304 stainless steel, providing excellent strength and abrasion resistance as opposed to standard floor locks.
Q. Where is the floor lock mounted?
A. The lock is typically mounted between two swivel casters on carts with a single pair of swivel casters or on diagonal corners on carts with four swivel casters.
Q. What is the purpose of a mounting plate?
A. Vestil floor lock has a top mounting plate for installing it on carts and other equipment.
Product Variants
| Product | Model | Floor Lock Retracted Height | For Wheel Dia. | Inside Bolt Hole Spacing | Material | Mounting Plate Bolt Hole Pattern | Outside Bolt Hole Spacing | Mounting Plate Size | Floor Lock Extended Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

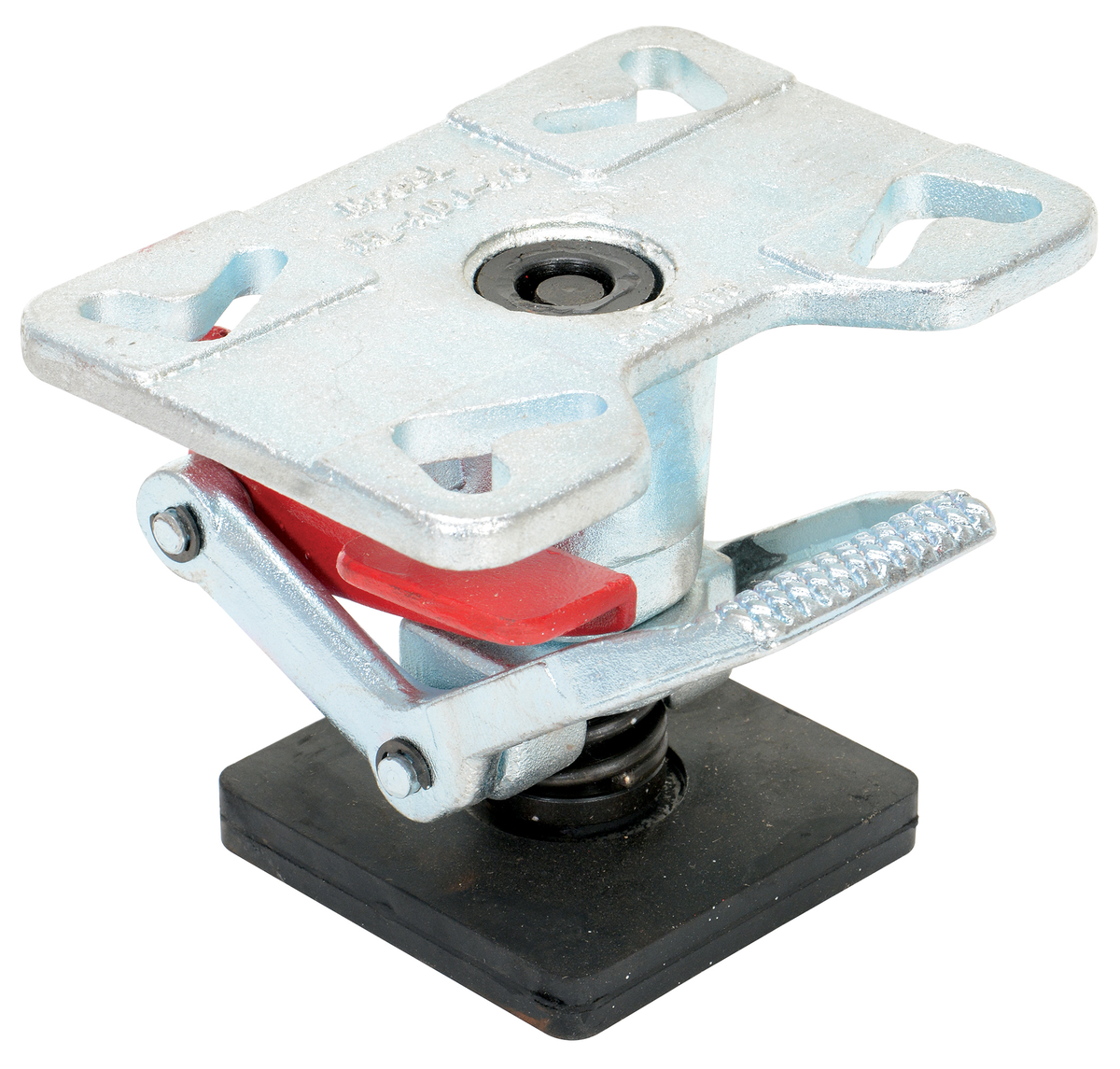

FL-ADJ-46 | 5" | 4", 5", 6" | 3 3/8" x 5 1/4" | Cast Steel | M | 3" x 3" | 4 1/2" x 6 1/2" | - | €131.47 | |
 |

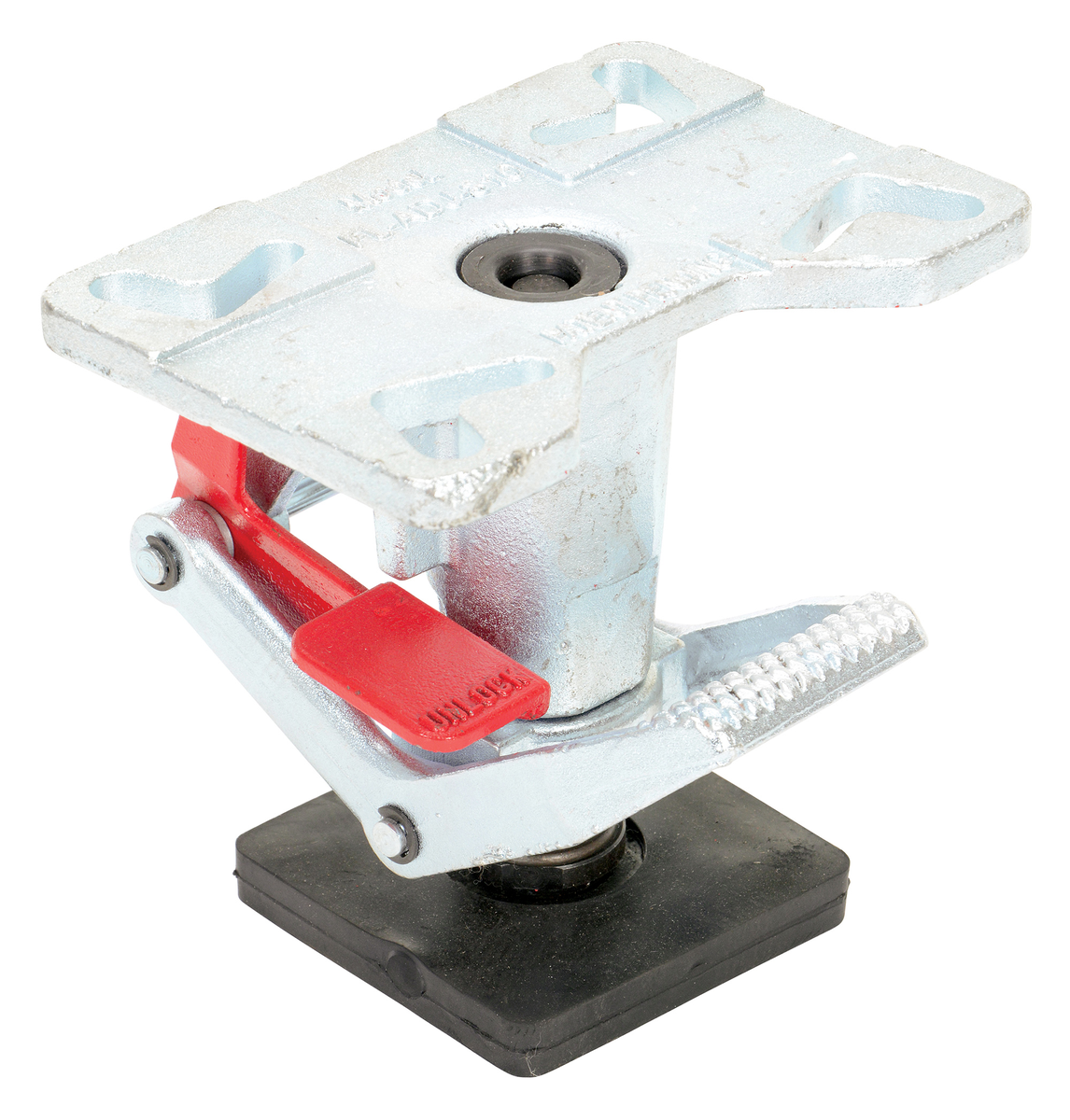

FL-ADJ-810 | 6 3/8" | 6", 8" | 3 3/8" x 5 1/4" | Cast Steel | M | 3" x 3" | 4 1/2" x 6 1/2" | 11 1/2" | €143.70 | |
 |

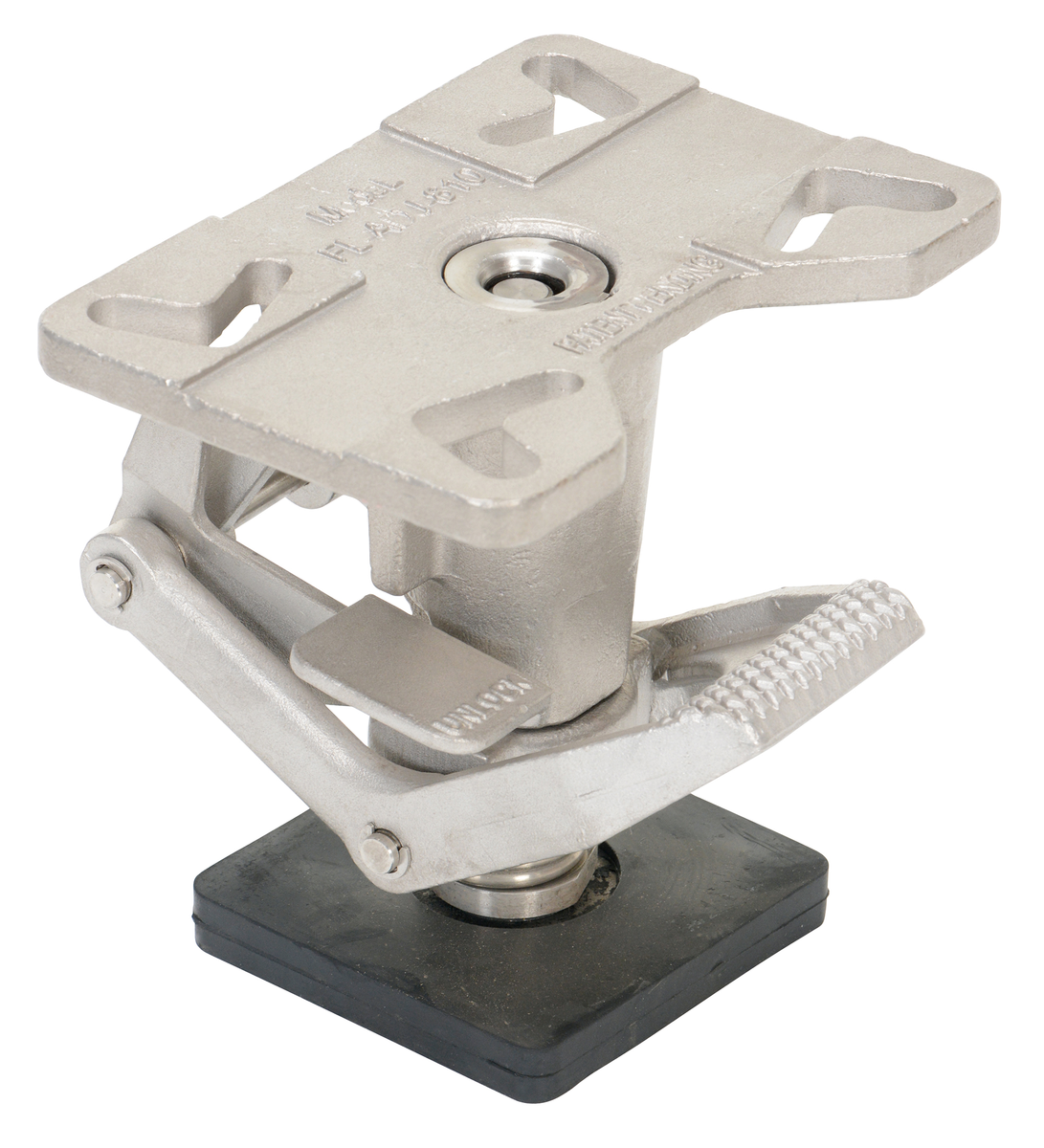

FL-ADJ-810-SS | 6 1/4" | 6", 8" | 2 15/16" x 4 1/8" | Stainless Steel | M | 3 1/2" x 5 1/4" | 4 1/2" x 6 1/2" | 11 1/2" | €367.16 |
