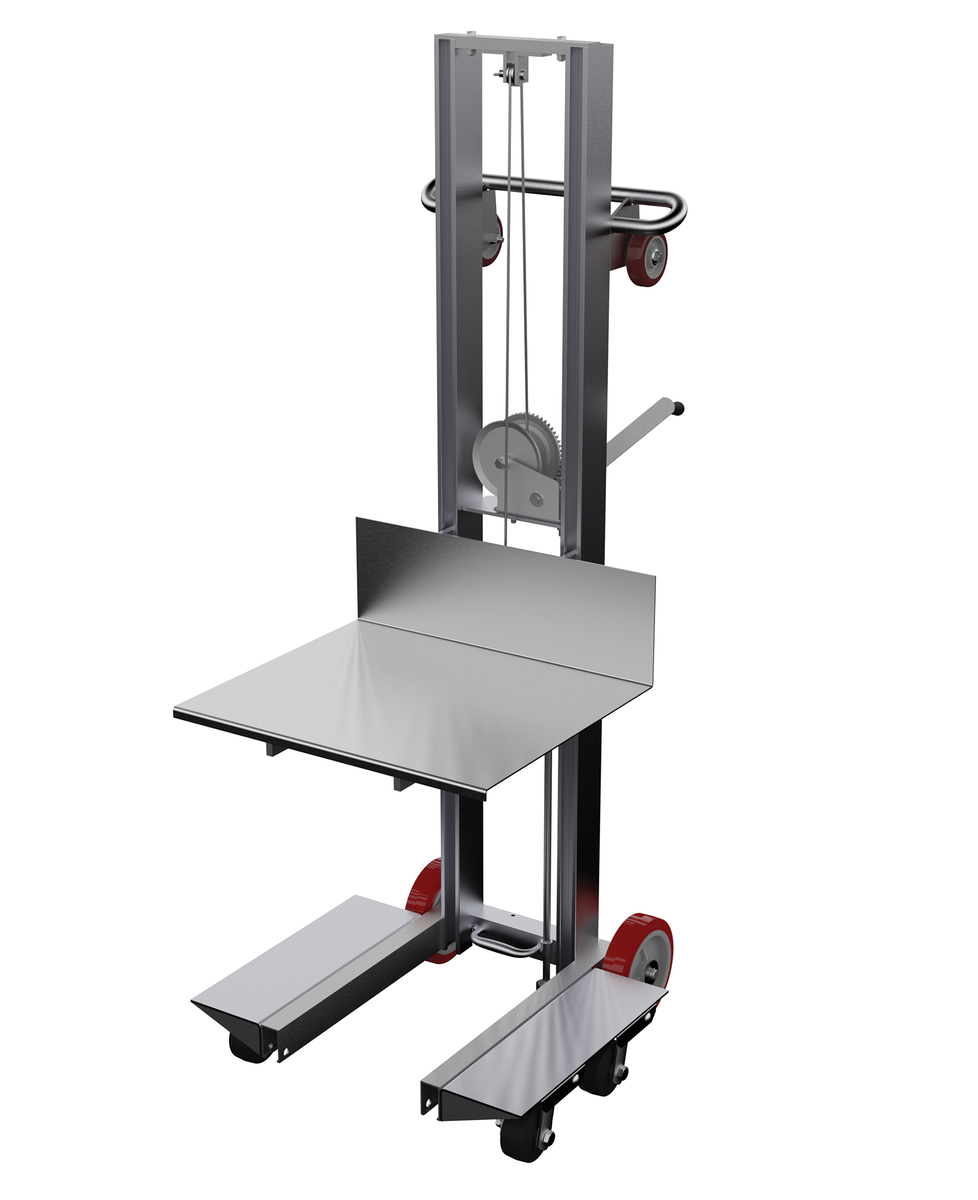

VESTIL ALLW-2420-4SFL Lite Load Lift With Winch, Swivel Casters & Manual Floor Lock 24 x 20 Inch Platform, 400 lb Cap, Silver
Get it by Wednesday, Dec 24
10.00% off
€1,838.54 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Standard Platform Lift |
| Assembled | Yes |
| Assembly | Assembled |
| Axle-mounted Wheel Type | Tread On Core |
| Base Material | Aluminum |
| Base Outside Width | 27 1/8" |
| Base Style | Fixed |
| Batteries Included | No |
| Capacity | 400 lbs. |
| Caster Wheel Dia. | 4" |
| Caster Wheel Type | Tread On Core |
| Caster Wheel Width | 1 1/4", 2" |
| Caster Wheel/tread Material | Polyurethane |
| Collapsible | No |
| Color | Silver |
| Color Family | Silver |
| Frame Material | Aluminum |
| Frame Type | Flat Back |
| Front Caster Dia. | 4" |
| Front Caster Material | Mold On Rubber |
| Front Caster Type | Swivel |
| Front Caster Width | 2" |
| Front Wheel Dia. | 2" |
| Handle Caster Dia. | 4" |
| Handle Caster Type | Rigid |
| Handle Caster Width | 1 1/4" |
| Handle Material | Aluminum |
| Handle Type | Straight |
| Height | 69.31" |
| Horizontal Load Center | 10" |
| Includes | (2) Handle Casters Poly On Poly 4" x 1.25" |
| Length | 33.13" |
| Lift Control | Hand Winch |
| Lift Mechanism | Chain/Cable |
| Load Capacity | 400 lbs. |
| Load Center | 10" |
| Load Lifter Operation Method | Winch |
| Location Type | Universal |
| Lowered Height | 6 1/8" |
| Material | Aluminum, Steel |
| Max. Travel Distance | 40 3/25" |
| Maximum Lifting Height | 60" |
| Min. Height | 6.13" |
| Min. Lifting Height | 6 1/4" |
| Minimum Lifting Height | 6 1/8" |
| Number Of Casters | 8 |
| Number Of Front Caster | 4 |
| Number Of Handle Caster | 2 |
| Number Of Rear Casters | 2 |
| Operation | Manual |
| Operation Type | Hand Winch |
| Overall Height | 69 1/2" |
| Overall Height With Platform Lowered | 69 3/8" |
| Overall Height With Platform Raised | 69 3/8" |
| Overall Length | 33 1/8" |
| Overall Width | 27 1/8" |
| Platform Length | 20" |
| Platform Material | Aluminum |
| Platform Width | 24" |
| Power Source | Manual |
| Product Datasheet | vestil-rp-allw-2420-4sfl.pdf |
| Raised Height | 60" |
| Rear Caster Dia. | 8" |
| Rear Caster Material | Poly On Poly |
| Rear Caster Type | Rigid |
| Stowed Height | 69 3/8" |
| Stowed Length | 33 1/8" |
| Weight | 141 lbs. |
| Wheel Configuration | 4 Swivel, 2 Rigid |
| Width | 27.19" |
Shipping Info:
| Ship weight (kg) | 63.45 |
| Ship height (cm) | 185.42 |
| Ship length (cm) | 121.92 |
| Ship width (cm) | 101.6 |
| HS code | 8428900290 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Platform Width | Overall Width | Color | Front Caster Dia. | Raised Height | Height | Capacity | Min. Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

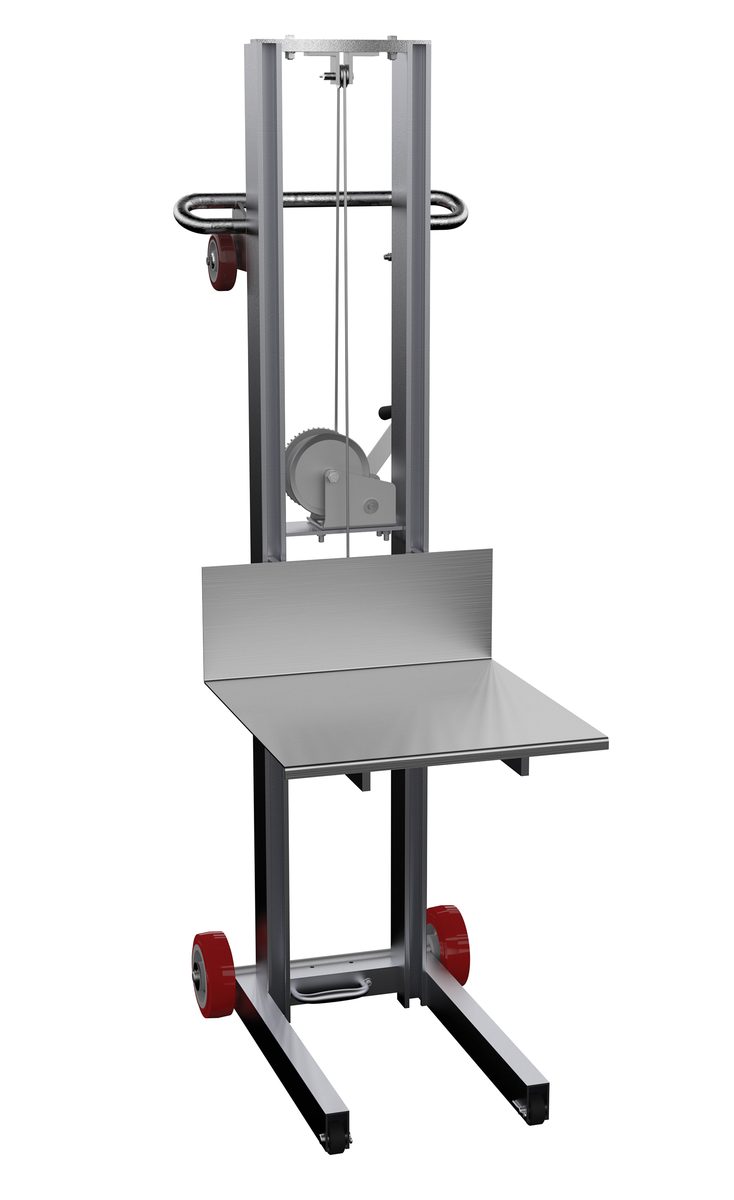

ALLW-2020-FW | 20" | 20" | Silver | 2" | 58" | 66 1/2" | 400 lbs. | 3.13" | €1,352.28 | |
 |

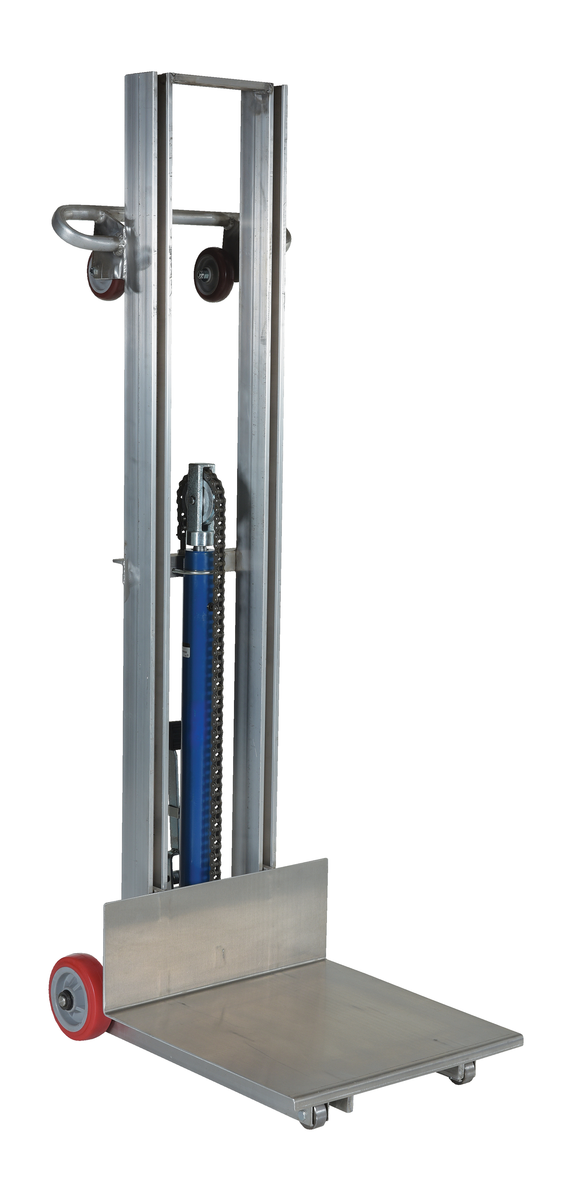

ALLH-2020-FW | 20" | - | Silver | 2" | 51 1/8" | 66" | 400 lbs. | 3.13" | - | RFQ
|
 |

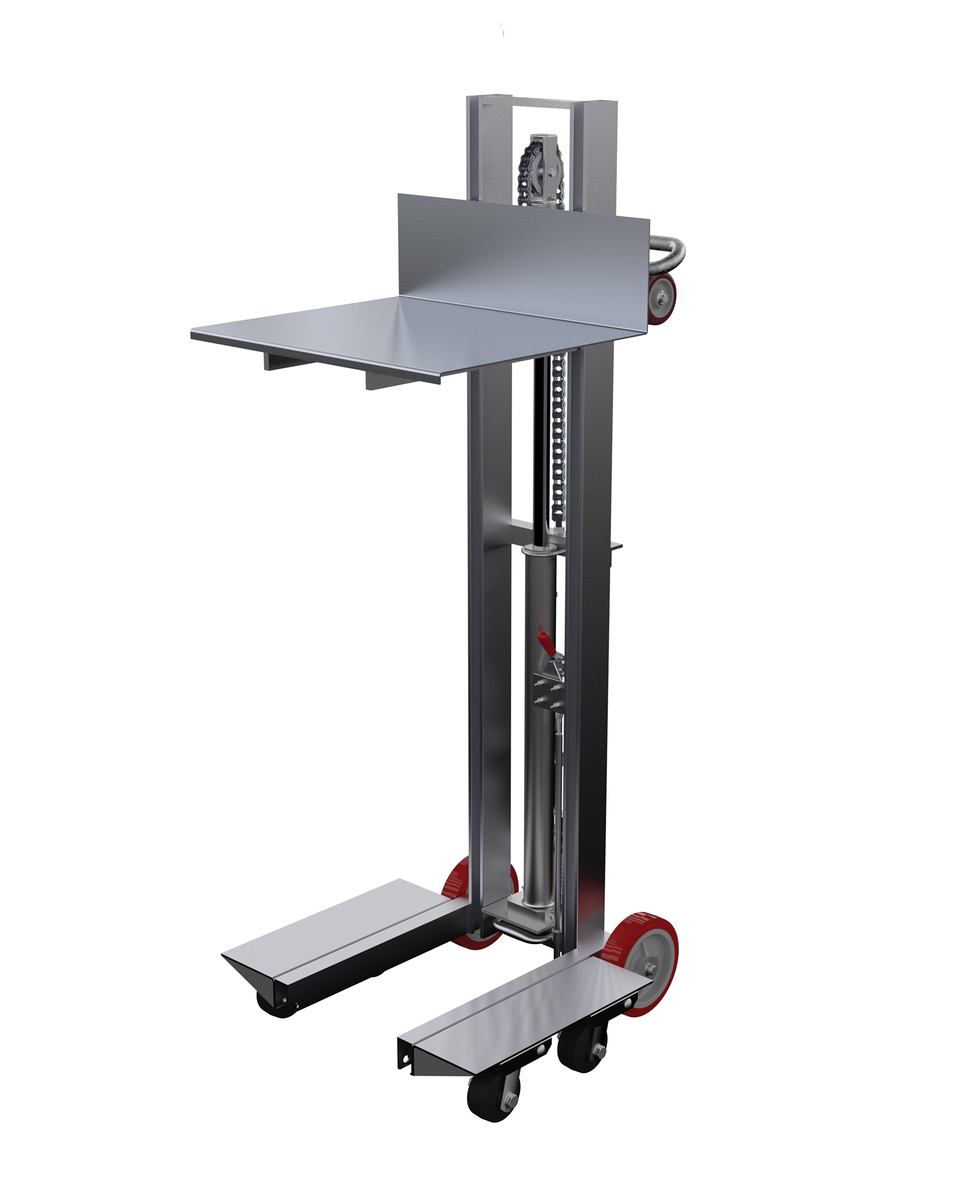

ALLH-2420-4SFL | - | - | Silver | 4" | 54 1/8" | 68 7/8" | 400 lbs. | 3.13" | - | RFQ
|
 |

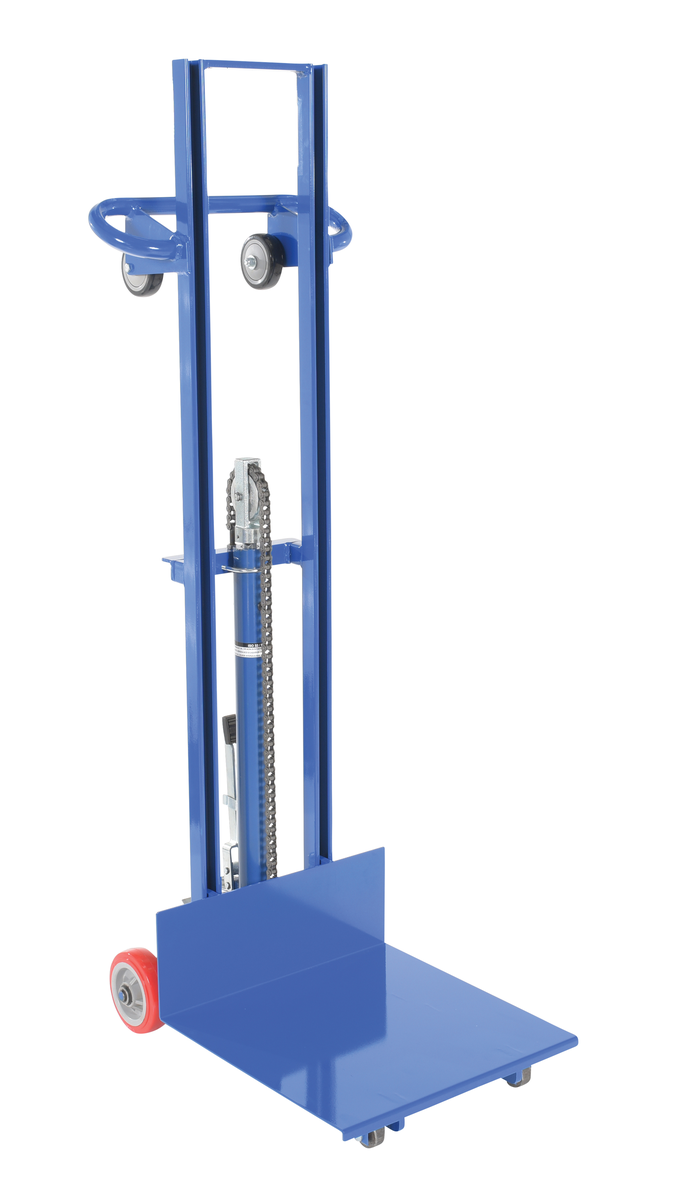

LLH-202053-FW | 20" | - | Blue | 2" | 51 1/8" | 66" | 500 lbs. | 3.13" | €1,110.49 | |
 |

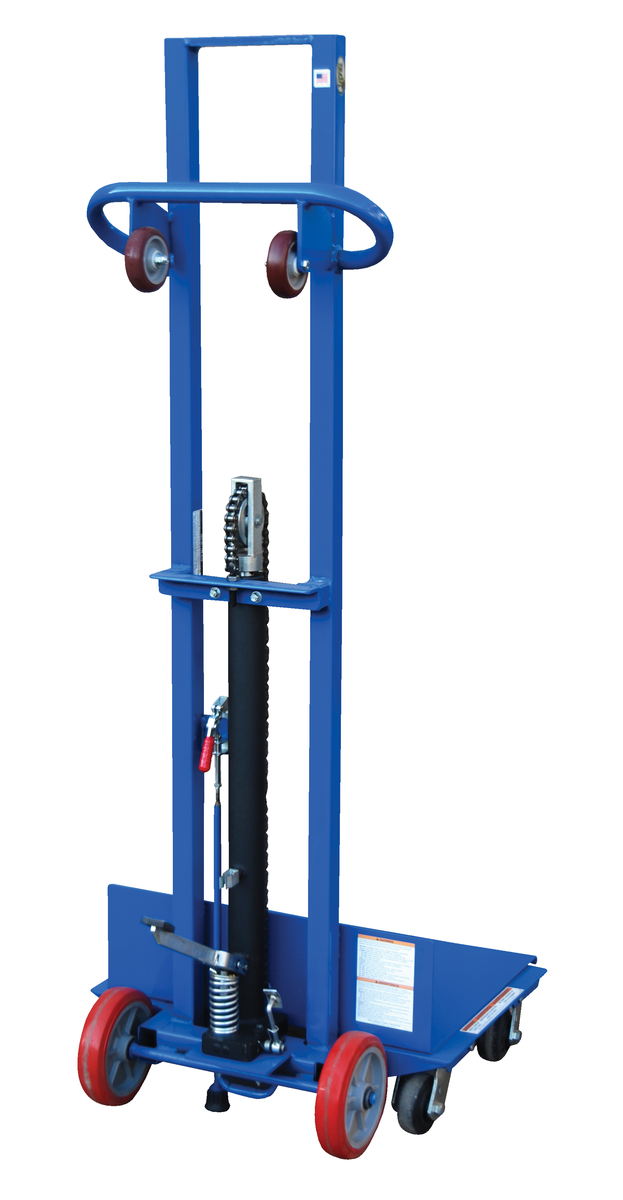

LLH-242056-4SFL | 24" | - | Blue | 4" | 54 1/8" | 68.937" | 500 lbs. | 6.13" | €1,337.44 |
