VELVAC 30497 Male Disconnect Yellow 12 - 10 Awg
Item: AF7HQPModel: 30497Cross Ref: 21DH19
7 In Stock
Ships within 2 days via
10.00% off
€25.44 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Male Disconnect |
| Barrel Inside Dia. | 0.142" |
| Barrel Style | Funnel Entry |
| Color Code | Yellow |
| Connection Material | Copper |
| Connection Type | Crimp |
| Contact Finish | Tin |
| Contact Material | Copper |
| Disconnect Style | Tab |
| Insulation | Full |
| Insulation Color | Yellow |
| Insulation Coverage | Full Coverage |
| Insulation Material | Nylon |
| Insulation Type | Heat Shrink |
| Max. Temp. | 90°F |
| Max. Voltage | 600V |
| Max. Wire Size | 10 AWG |
| Maximum Operating Temperature | 194°F |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 12 AWG |
| Overall Length | 1 3/4" |
| Rohs Compliant | Yes |
| Seam | Brazed |
| Seam Style | Brazed |
| Tab Size | 0.032" x 0.25" |
| Tab Thickness | 0.032" |
| Tab Width | 1/4" |
| Terminal Type | Socket |
| Termination Style | Crimp |
| Wire Size | 12 AWG to 10 AWG |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 10.16 |
| HS code | 8536904000 |
| Country of Origin | US |
Product Variants
| Product | Model | Wire Size | Insulation Color | Barrel Inside Dia. | Overall Length | Color Code | Insulation Material | Insulation | Connection Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

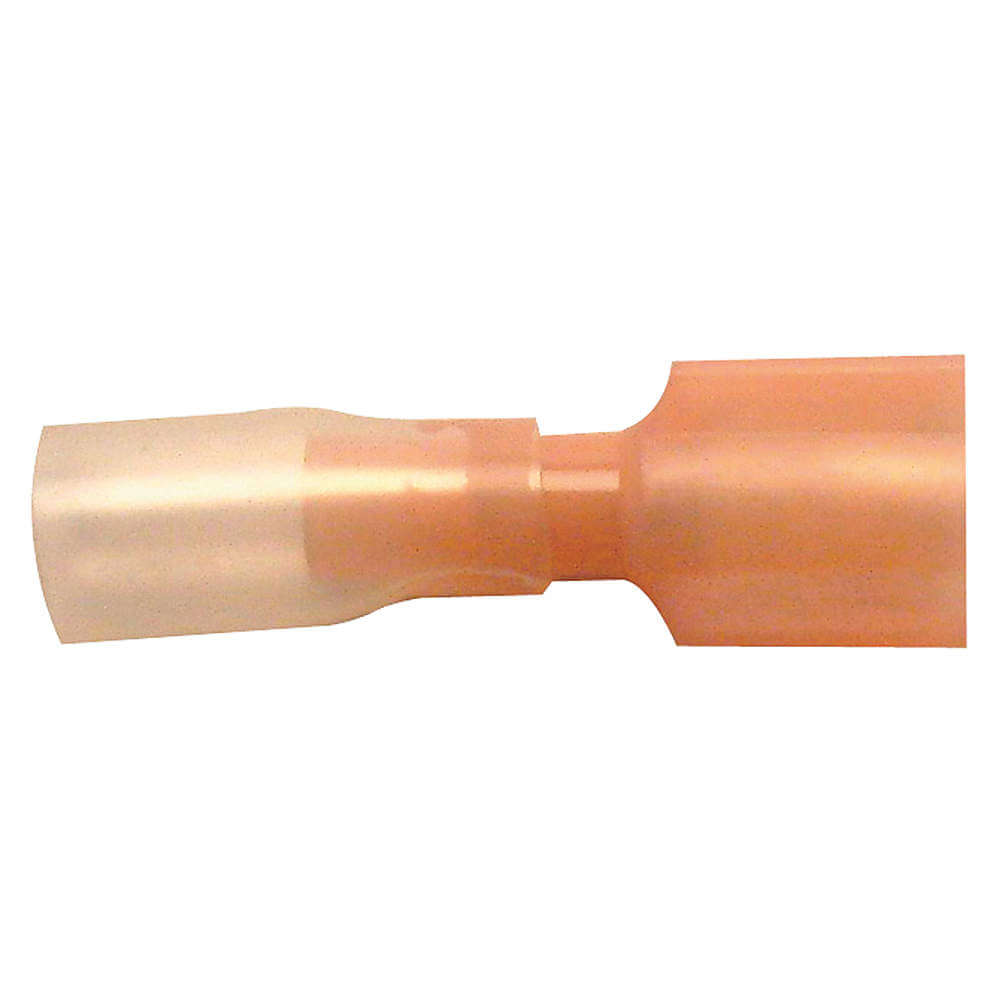

30187 | 22 AWG to 18 AWG | Red | 0.062" | 1.45" | Red | Nylon | Full | Crimp | 10 | €23.99 | |
 |

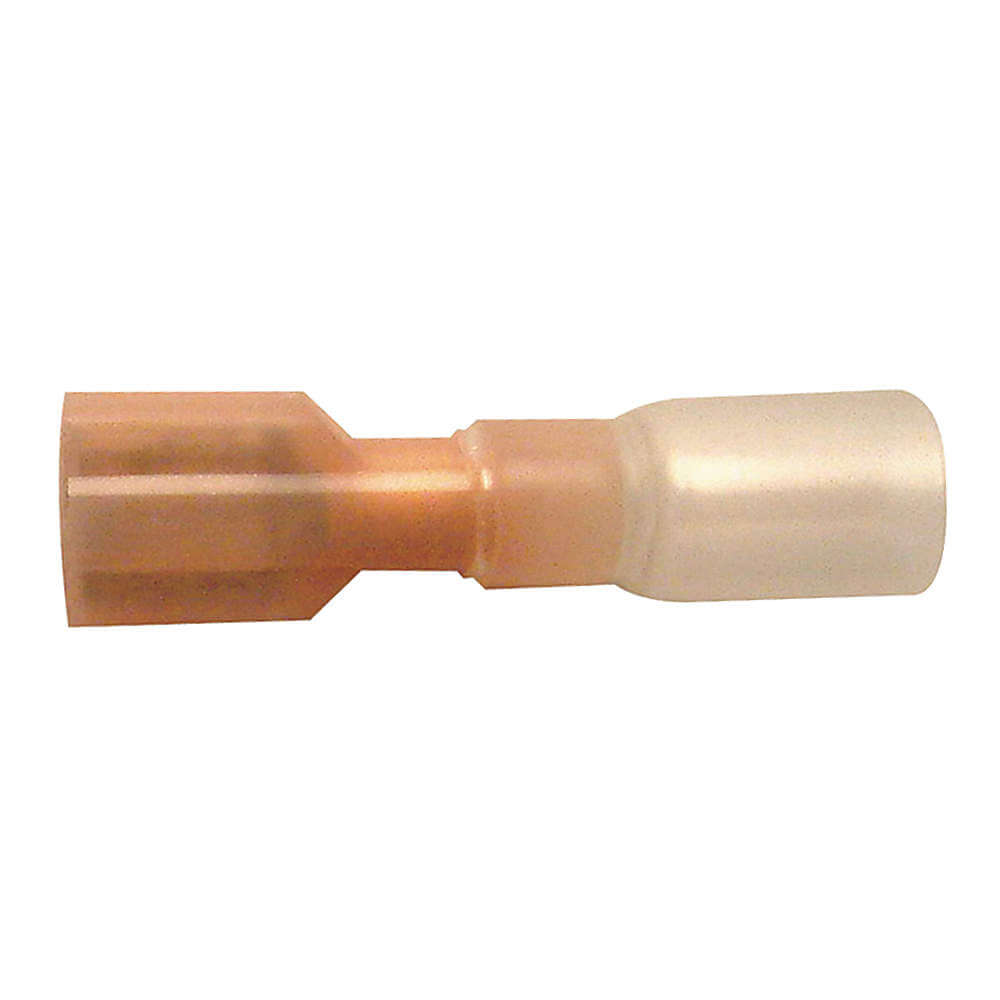

30197 | 22 AWG to 18 AWG | Red | 0.062" | 1.35" | Red | Nylon | Full | Crimp | 10 | €25.40 | |
 |

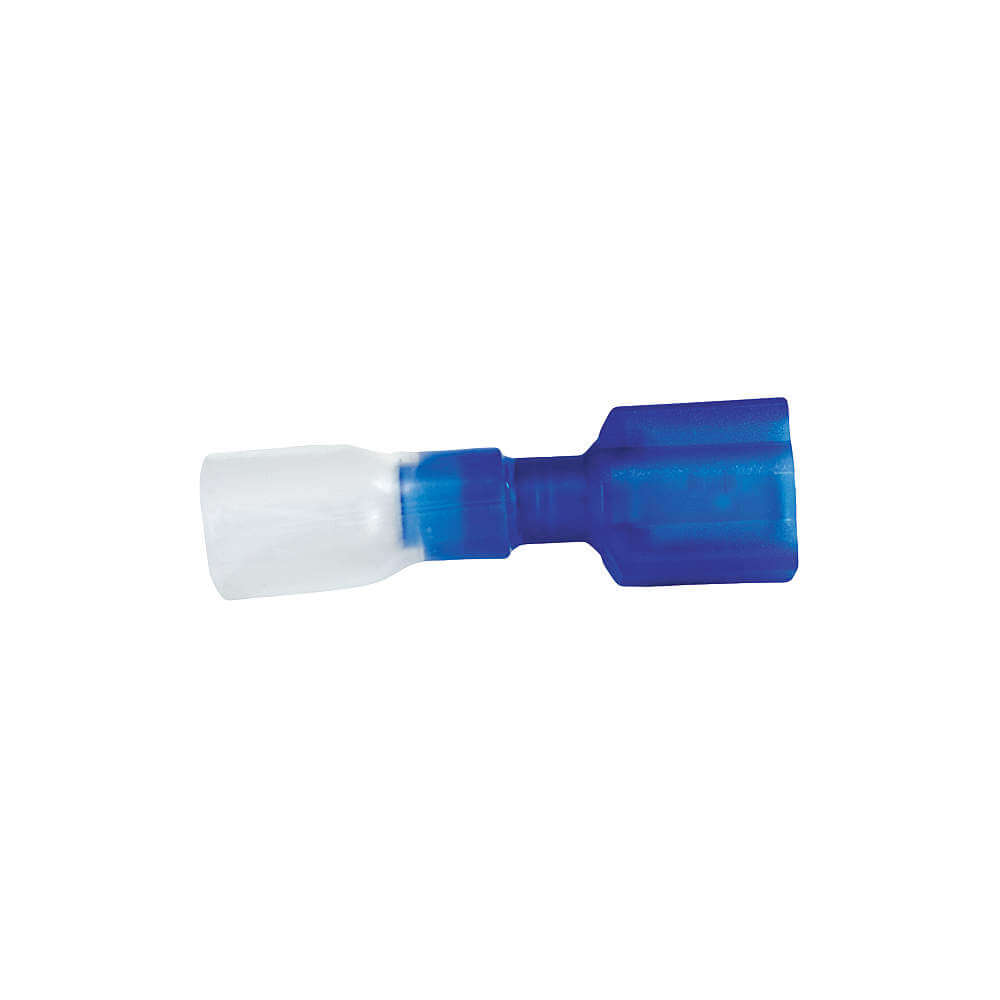

30387 | 16 AWG to 14 AWG | Blue | 0.097" | 1.45" | Blue | Nylon | Full | Crimp | 10 | €23.79 | |
 |

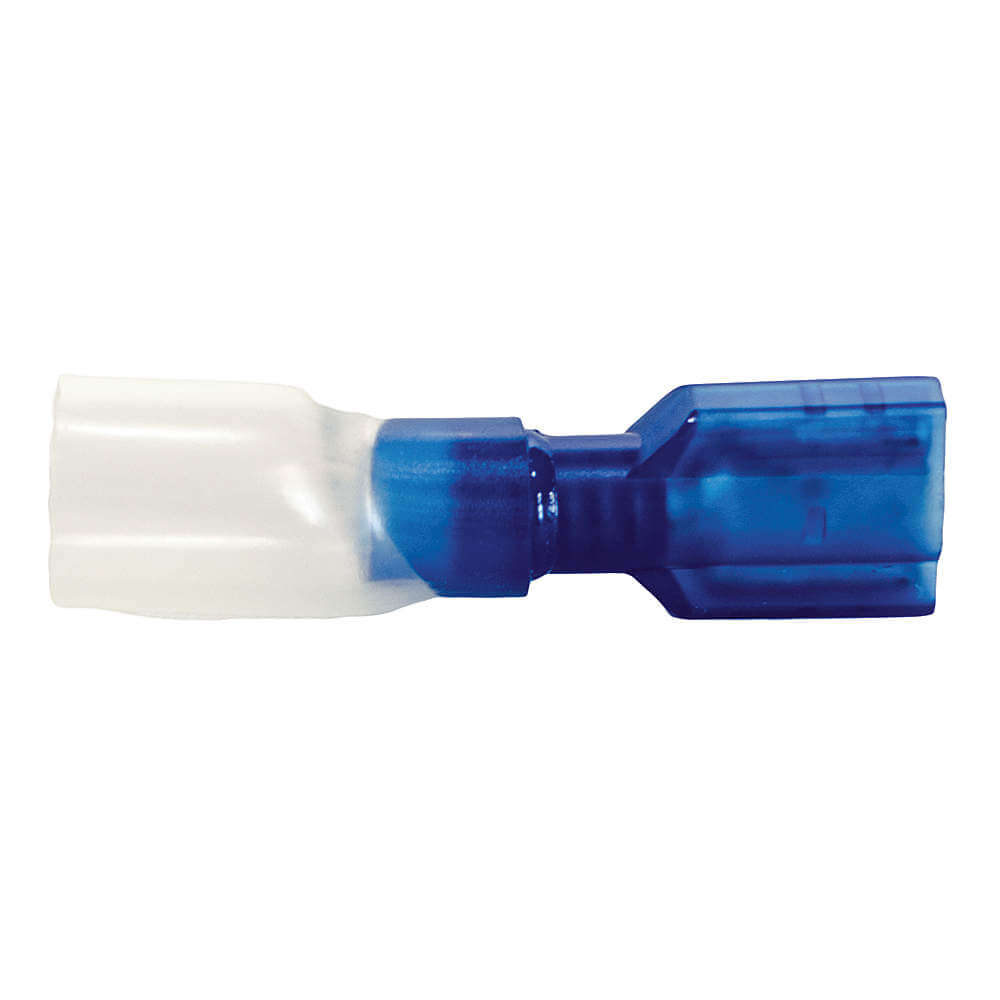

30397 | 16 AWG to 14 AWG | Blue | 0.097" | 1.35" | Blue | Nylon | Full | Crimp | 10 | €23.49 |
