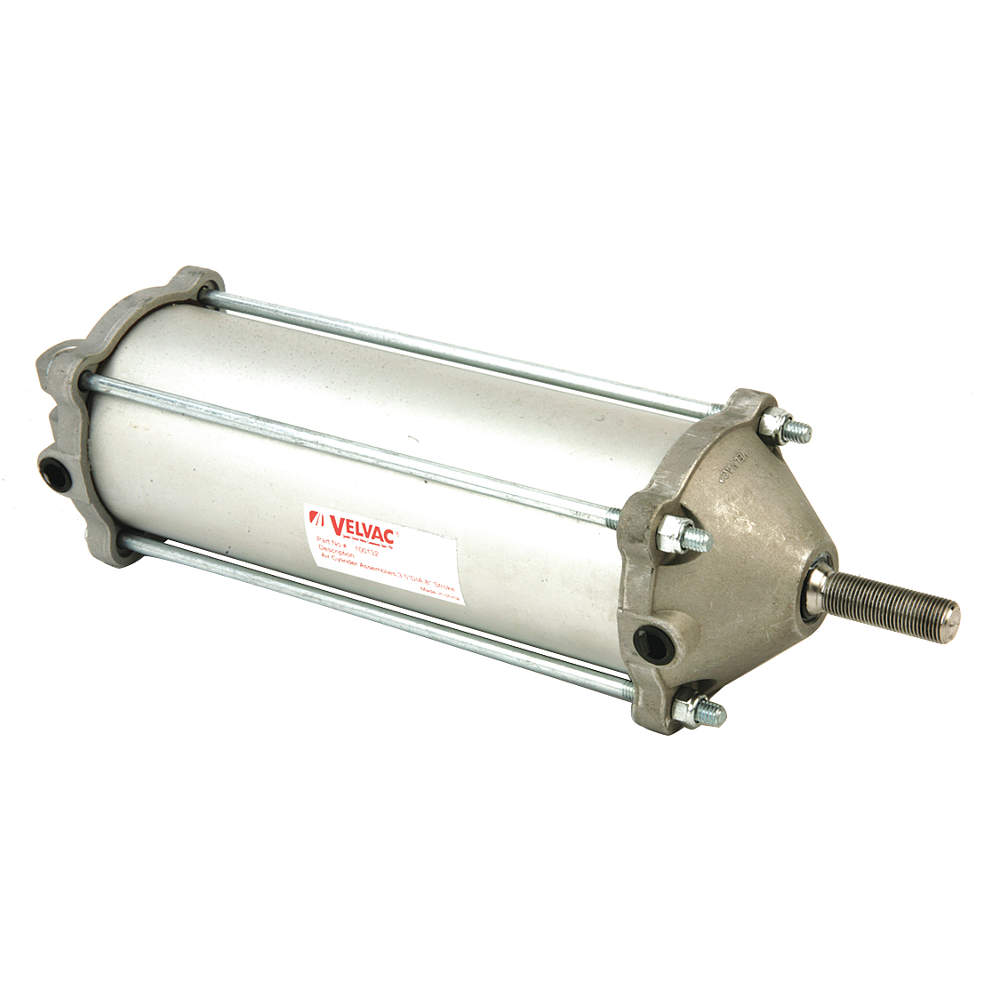

VELVAC 100136 Air Cylinder Air 3-1/2 Inch Bore Clevis
Item: AG9PHUModel: 100136Cross Ref: 21DH76
7 In Stock
Ships within 2 days via
10.00% off
€405.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Cylinder |
| Body Material | Aluminum |
| Bore Dia. | 3 1/2" |
| Cylinder Action | Double Acting |
| End Cap Material | Aluminum |
| Extended Length | 24 1/4" |
| Features | Push/Pull |
| Finish | Brushed |
| For Fluid Type | Air |
| Inlet Gender | Female |
| Magnetic Piston | Magnetic Piston |
| Max. Load | 769.5 lbs. |
| Max. Pressure | 100 psi |
| Maximum Operating Pressure | 120 psi |
| Maximum Operating Temperature | 185°F |
| Min. Temp. | -60°F |
| Minimum Operating Pressure | 10 psi |
| Minimum Operating Temperature | -20°F |
| Mounting | Clevis |
| Mounting Type | Clevis Bracket |
| Piston Finish | Buna N Emralon Coated |
| Piston Material | Buna-N |
| Piston Rod Material | Metal |
| Pivot Hole Dia. | 1/2" |
| Port Type | NPTF |
| Repairable Cylinder | Non Repairable |
| Retracted Length | 15 5/8" |
| Rod Dia. | 5/8" |
| Rod Thread Length | 1 3/4" |
| Rod Thread Size | 5/8"-18 |
| Rod Thread Type | Fine |
| Single Acting/double Acting | Double Acting |
| Spring Retraction Force | 962/918 lbs |
| Stroke | 8 17/25" |
| Stroke Length | 8 11/16" |
| System Of Measurement | Inch |
| Tie Rod Material | Metal |
| Tube Material | Aluminum |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 51.05 |
| Ship length (cm) | 11.68 |
| Ship width (cm) | 11.43 |
| Country of Origin | CN |
Product Variants
| Product | Model | Bore Dia. | Stroke | Max. Load | Body Material | Magnetic Piston | Mounting Type | Max. Pressure | Single Acting/double Acting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

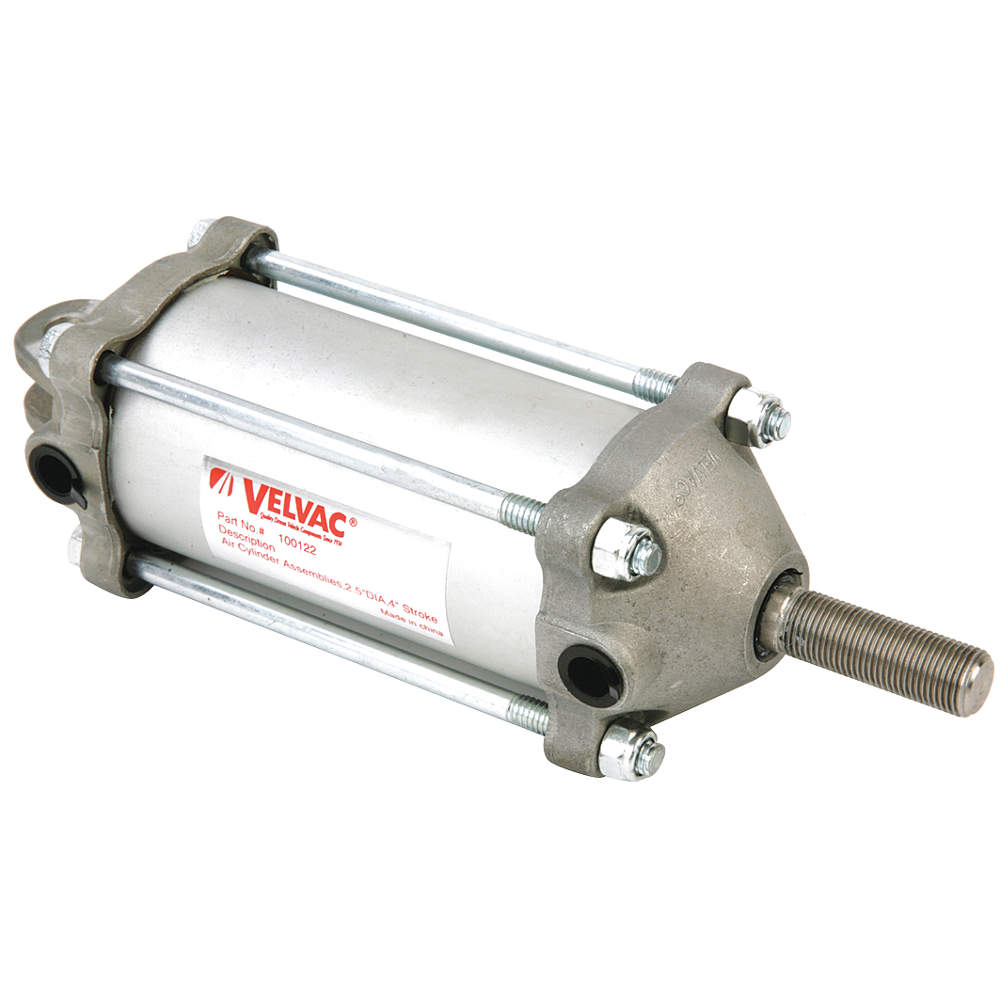

100122 | 2 1/2" | 4" | 386 lbs. | Aluminum | Magnetic Piston | Clevis Bracket | 100 psi | Double Acting | €292.14 | |
 |
100123 | 2 1/2" | 6" | 386 lbs. | Aluminum | Magnetic Piston | Clevis Bracket | 100 psi | Double Acting | €292.14 | |
 |

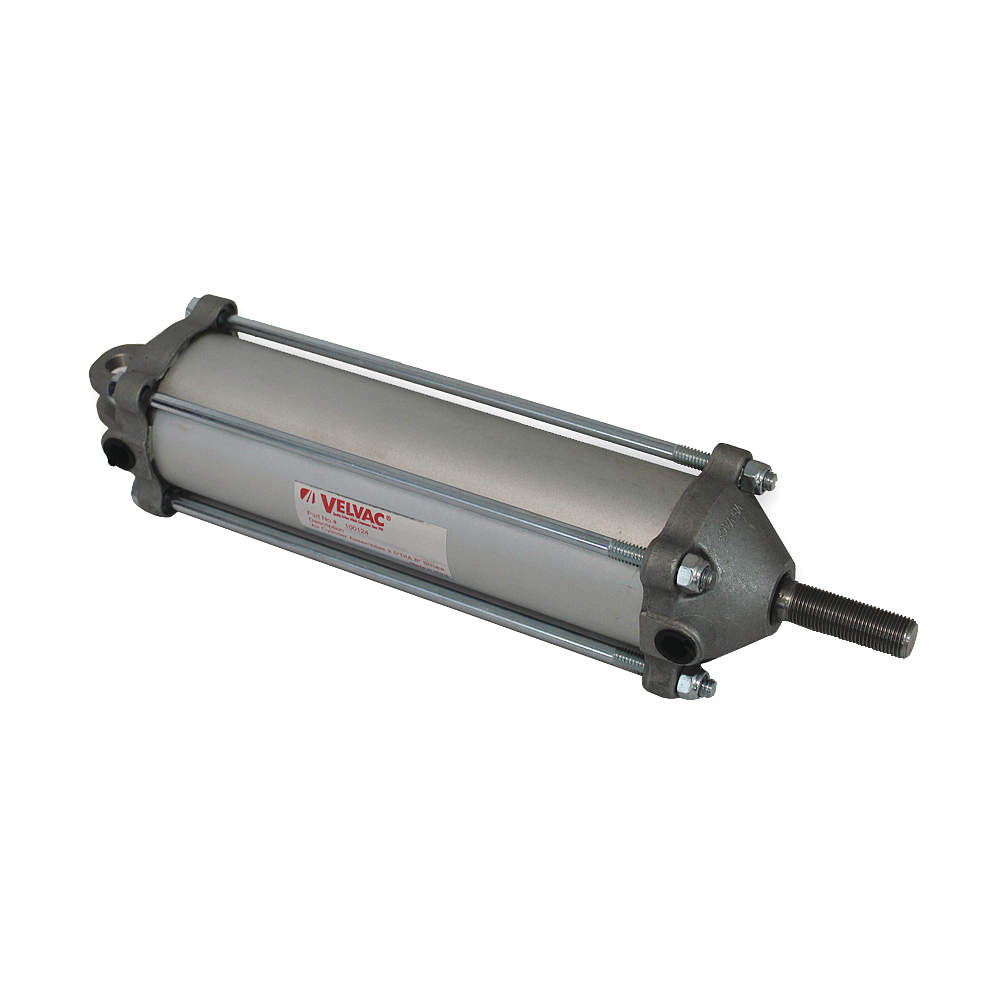

100124 | 2 1/2" | 8" | 386 lbs. | Aluminum | Magnetic Piston | Clevis Bracket | 100 psi | Double Acting | €292.14 | |
 |

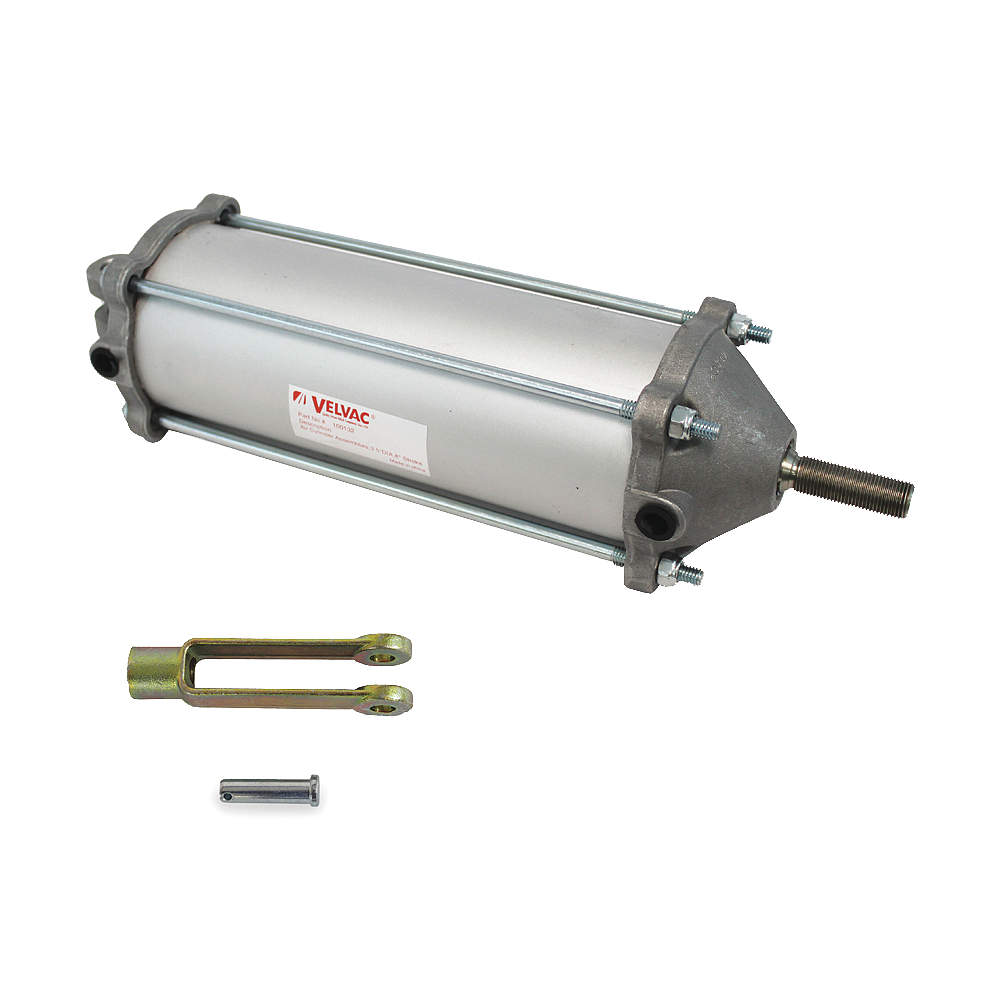

100131 | 3 1/2" | 6 17/25" | 769.5 lbs. | Aluminum | Magnetic Piston | Clevis Bracket | 100 psi | Double Acting | €425.70 | |
 |

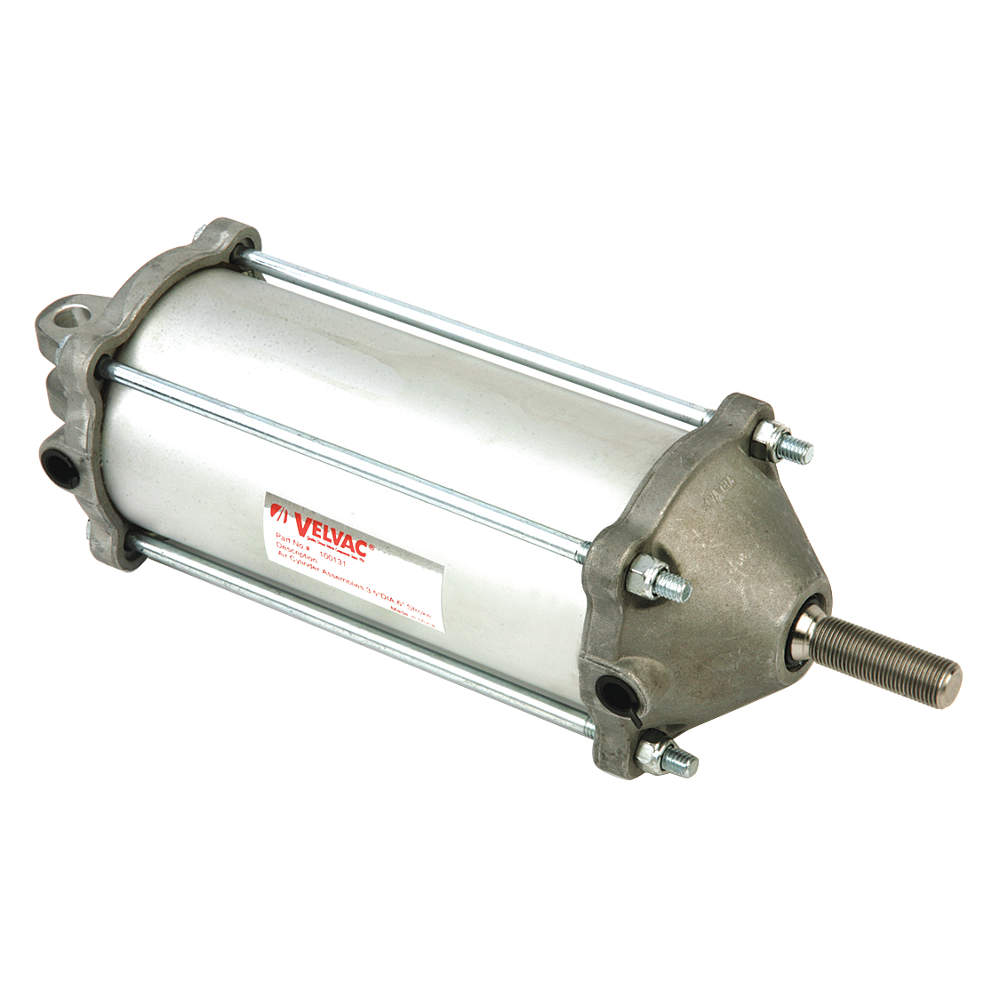

100132 | 3 1/2" | 8 17/25" | 769.5 lbs. | Aluminum | Magnetic Piston | Clevis Bracket | 100 psi | Double Acting | €454.10 | |
 |

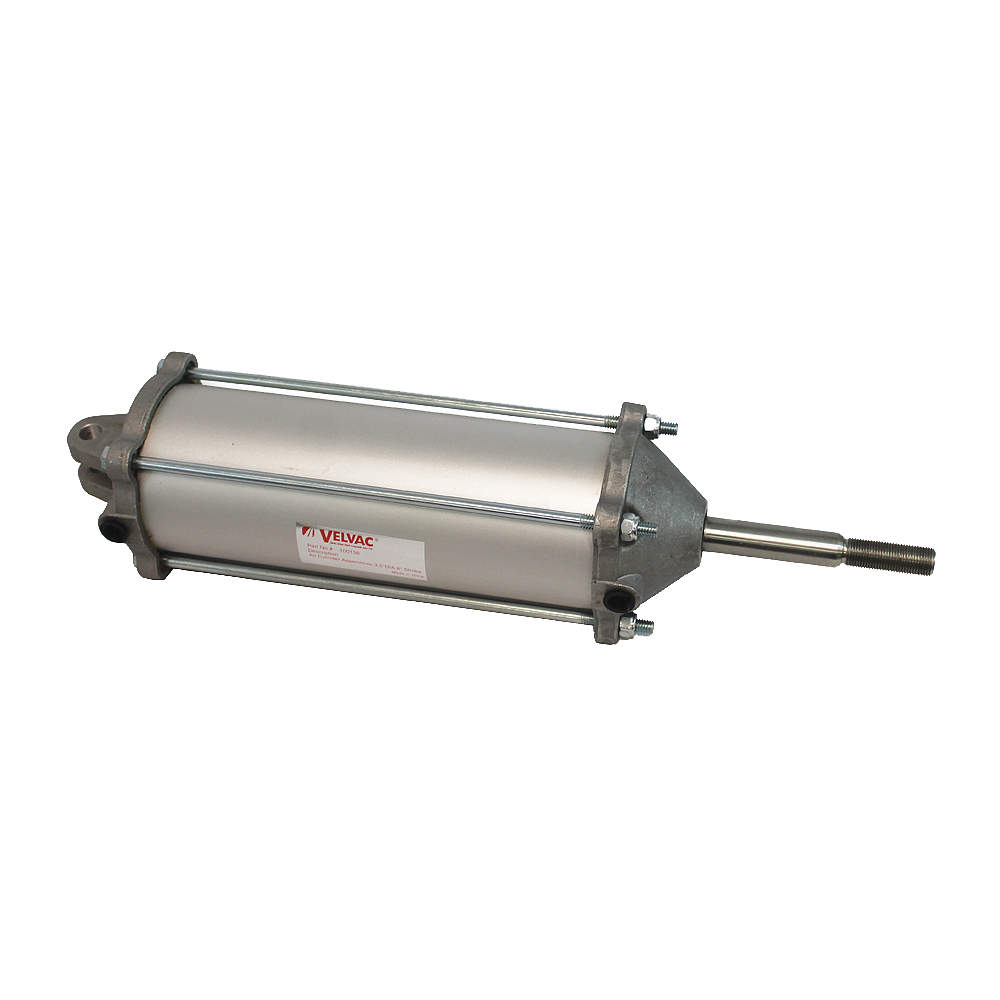

100137 | 3 1/2" | 8 17/25" | 769.5 lbs. | Aluminum | Magnetic Piston | Clevis Bracket | 100 psi | Double Acting | €387.87 |
