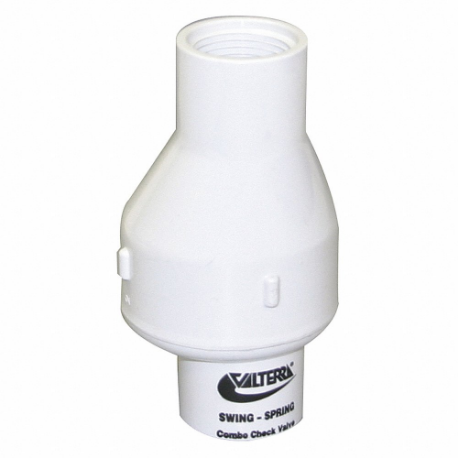

VALTERRA 200-07F Check Valve, Single Flow, Inline Spring Swing, PVC, 3/4 Inch Pipe/Tube Size, FNPT x FNPT
Item: CU7QAVModel: 200-07FCross Ref: 35ZY61
7 In Stock
Ships within 2 days via
10.00% off
€10.30 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Check Valve |
| 3-a Compliance | Not Rated |
| Application | General Purpose |
| Application - Valves | General Purpose |
| Body Material | PVC |
| Check Mechanism | Swing |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 3/4" |
| Connection Size - Side 2 | 3/4" |
| Connection Type | FIP x FIP |
| Connection Type - Side 1 | IPS |
| Connection Type - Side 2 | IPS |
| Cracking Pressure | 0.5 psi |
| Disc Material | Stainless Steel |
| Flow Design | Single |
| Flow Rate | 100 GPM |
| For Media | Water |
| Full Flow | No |
| Full Flow - Valves | No |
| Grade | Grade 316 |
| Length | 2.312" |
| Max. Pressure (cwp) | 150 psi |
| Max. Steam Pressure | Not Rated |
| Max. Steam Pressure - Valves | Not Rated |
| Max. Water Pressure | 150 psi |
| Mechanism And Body Design | Inline Spring Swing |
| Media Temperature Range | 35°F to 73°F |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Orientation - Check Valves | Horizontal, Vertical |
| Operating Temperature - Maximum | 73°F |
| Operating Temperature - Minimum | 35°F |
| Overall Height | 4" |
| Overall Length | 2.31" |
| Pipe Or Tube Size | 3/4" |
| Pipe Or Tube Size - Check Valves | 3/4" |
| Pipe Size, Tube Size | 3/4" |
| Seal Material | Buna N |
| Seat Material | PVC |
| Silent Check | Standard |
| Spring Material | Stainless Steel |
| Spring Material - Check Valves | Stainless Steel |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Inline |
| Width | 2.312" |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 5.87 |
| Ship width (cm) | 5.87 |
| Country of Origin | CN |
Product Variants
| Product | Model | Connection Type | Max. Water Pressure | Overall Height | Pipe Size, Tube Size | Mounting Orientation | Flow Rate | Body Material | Seat Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
200-15 | Socket x Socket | 150 psi | 6.109" | 1 1/2" | Horizontal | - | PVC | PVC | €31.44 | |
 |
200-10 | Socket x Socket | 150 psi | 5" | 1" | Horizontal, Vertical | 100 GPM | PVC | PVC | €26.76 | |
 |
200-C10 | Socket x Socket | 150 psi | 4.906" | 1" | Horizontal, Vertical | 100 GPM | PVC | PVC | €25.04 | |
 |
200-C05F | FIP x FIP | 150 psi | 3.812" | 1/2" | Horizontal, Vertical | 100 GPM | PVC | PVC | €13.33 | |
 |
200-05 | Socket x Socket | 150 psi | 3.797" | 1/2" | Horizontal, Vertical | - | PVC | PVC | €9.24 | |
 |
200-20 | Socket x Socket | 150 psi | 7.109" | 2" | Horizontal | 150 GPM | PVC | PVC | €38.60 | |
 |
200-C20 | Socket x Socket | 150 psi | 7.109" | 2" | Horizontal | - | PVC | PVC | €40.32 |
